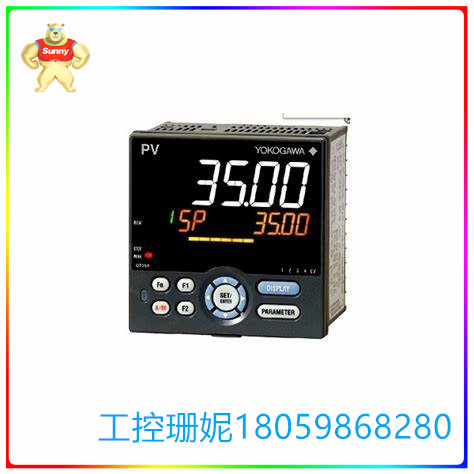

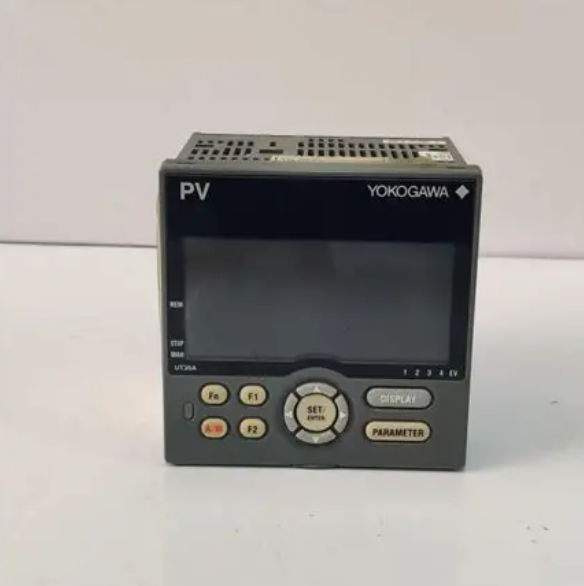

UT35A-001-11-00 温度控制器采用易读的大型彩色LCD显示屏

【产品详情】

UT35A和UT32A温度控制器采用易读的14段大型彩色LCD显示屏，并配以导航键，从而极大地提升了监视和操作性能。标配梯形图顺控功能。控制器安装深度较短，有助于节省仪表面板的空间。UT35A/UT32A还支持以太网通信等开放网络。

UT35A和UT32A温度控制器

标配4个目标设定点(PID号码)

标配3个报警独立共用端子

可构建梯形图顺控程序

操作简单

最多8个DO (可组合使用)

提供多语言操作手册(日语、英语、德语、法语、西班牙语、中文和韩语)。订购时请指定所需语言。

详细代码型号可用于自定义最适合您的规格。

先进控制

8种内置的控制模式

控制模式可进行轻松设置和参数更改。

单回路控制

级联一次回路控制

级联二次回路控制

级联控制

用于备份的回路控制

通过PV切换进行回路控制

通过PV自动选择器进行回路控制

通过PV保持功能进行控制

8 built-in Control Mode

8种内置的控制类型

PID控制

ON/OFF控制(1点滞后)

ON/OFF控制(2点滞后)

两点两级控制

加热/冷却控制

采样PI控制

批处理PID控制

前馈控制

8 Built-in Control Types

有关上述各型号控制模式和控制类型之间的对应关系，请参阅各型号的规格。

梯形图顺序控制

通过内置的梯形图顺序控制，应用范围大大增加。该功能是所有UTAdvanced控制器(UM33A除外)的标准功能。梯形图顺序控制功能可以替代小型PLC用于应用。顺序控制和PID控制可同时进行。

监视和控制外部机械

如：灯具、开关、计时器

轻松解决数字输入/输出的逻辑功能性。

基本命令类型：13种

应用程序命令类型：73种

UT35A-001-11-00 温度控制器采用易读的大型彩色LCD显示屏

【英文介绍】

The UT35A and UT32A temperature controllers feature a large, easy-to-read 14-segment color LCD display with navigation keys that greatly improve monitoring and operation performance. Standard trapezoidal map sequence control function. The short installation depth of the controller helps to save space on the meter panel. UT35A/UT32A also supports open networks such as Ethernet communication.

UT35A and UT32A temperature controllers

4 target set points (PID numbers) as standard

Three alarm independent shared terminals are standard

Ladder diagram compliance control program can be constructed

Simple operation

Up to 8 DOS (can be combined)

Manuals are available in multiple languages (Japanese, English, German, French, Spanish, Chinese and Korean). Please specify the required language when ordering.

The detailed code number can be used to customize the specifications that work best for you.

Advanced control

8 built-in control modes

The control mode can be easily set up and changed.

Single loop control

Cascading primary loop control

Cascade secondary loop control

Cascade control

Loop control for backup

Loop control via PV switching

Loop control via PV automatic selector

Control via PV hold function

8 built-in Control Mode

8 built-in control types

PID control

ON/OFF control (1 point lag)

ON/OFF control (2 point lag)

Two-point, two-stage control

Heating/cooling control

Sampling PI control

Batch PID control

Feedforward control

8 Built-in Control Types

Please refer to the specifications of each model for the correspondence between the control modes and control types described above.

Ladder diagram sequence control

With the built-in ladder sequence control, the application range is greatly increased. This feature is standard on all UTAdvanced controllers except the UM33A. The ladder sequence control function can replace small PLCS for applications. Sequential control and PID control can be performed simultaneously.

Monitor and control external machinery

Such as: lamps, switches, timers

Easily solve the logical functionality of digital input/output.

Basic command types: 13

Application command type: 73 types
