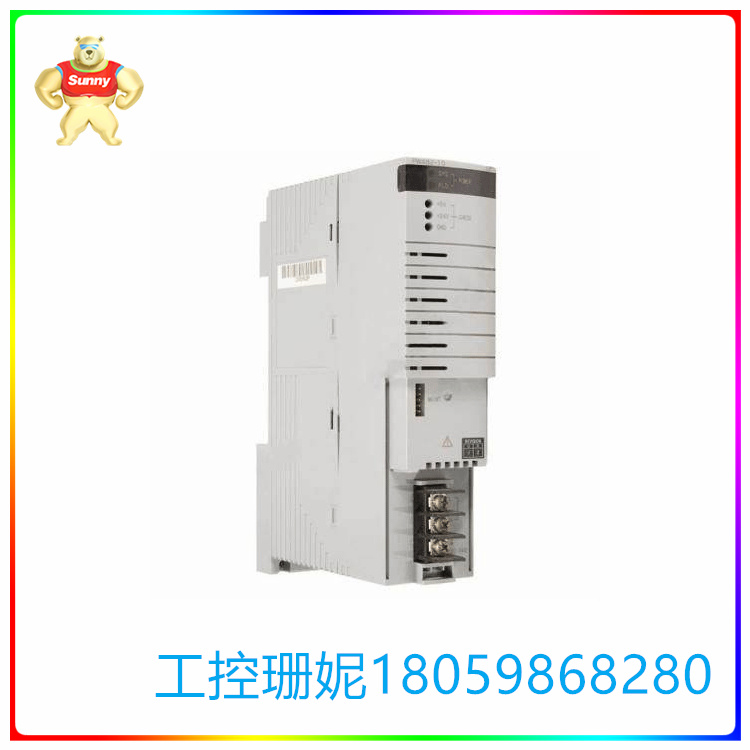

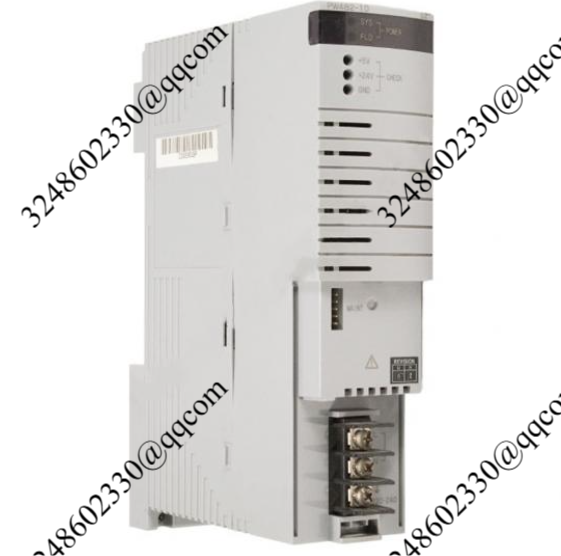

YOKOGAWA AVR10D-A22010  总线转换器

【产品详情】

这些总线转换器连接CENTUM VP

Vnet/IP上与CENTUM的接口站(HISes)

VP/CENTUM CS 3000/CENTUM CS站上的V

CENTUM cs1000站在VL网另一端域。

连接CENTUM cs3000 /CENTUM CS系统，VP6H4450多项目连接封装和VP6E5450多项目连接是必需的。连接CENTUM CS1000系统，一个以太网，以及这些包，也是必需的。

n标准规格

对于安装规范和环境

系统共有的条件，请参考

GS“综合生产控制系统CENTUM

副总裁系统概述”(GS 33J01A10-01EN)。

AVR10D

双工V网路由器

(ycb111, ycb141, ycb148, ycb149

vnet相关组件)

F01E。Vnet/IP端的ai通信

通信速度:100mbps，全双工

连接方式:UTP电缆(CAT5e或以上)，RJ45连接器

接口:100Base-TX兼容

Max。距离:100m (AVR10D到二层交换机的距离)

在vnet端进行通信

通信速度:10mbps

连接方式:同轴电缆，BNC型

双冗余或单冗余

适用于CENTUM VP, CENTUM cs3000和CENTUM CS

VL网络端的通信

通信速度:10mbps

连接方式:同轴电缆，BNC型

双冗余或单冗余

为CENTUM cs1000

配置

19英寸机架安装:机架安装(4 × M5螺钉)，绝缘套管(附件)

连接

电源:M4螺钉端子连接

接地方式:M4螺钉端子连接

V网与VL网侧:t型结BNC连接

Vnet/IP端:UTP电缆(CAT5e或更好)

YOKOGAWA AVR10D-A22010  总线转换器

【英文介绍】

These bus converters connect to CENTUM VP

Interface station with CENTUM on Vnet/IP (HISes)

VP/CENTUM CS 3000/ V on the CENTUM CS station

The CENTUM cs1000 stands at the other end of the VL network.

Connecting CENTUM cs3000 /CENTUM CS systems, VP6H4450 multi-item connection package and VP6E5450 multi-item connection are required. Connecting the CENTUM CS1000 system, an Ethernet, and these packages are also required.

n Standard Specifications

For installation specifications and environment

For details about common system conditions, see

GS "Integrated production control system CENTUM

Vice President Systems Overview "(GS 33J01A10-01EN).

AVR10D

Duplex V-network router

(ycb111, ycb141, ycb148, ycb149

vnet related components)

F01E. ai communication on Vnet/IP

Communication speed :100mbps, full duplex

Connection :UTP cable (CAT5e or above), RJ45 connector

Interface :100Base-TX compatible

Max. Distance :100m (distance from AVR10D to Layer 2 switch)

Communication on the vnet side

Communication speed :10mbps

Connection mode: coaxial cable, BNC type

Dual redundancy or single redundancy

Available for CENTUM VP, CENTUM cs3000 and CENTUM CS

Communication on the VL network

Communication speed :10mbps

Connection mode: coaxial cable, BNC type

Dual redundancy or single redundancy

It is CENTUM cs1000

disposition

19 "rack mount: rack mount (4 × M5 screws), insulation sleeve (accessories)

join

Power supply :M4 screw terminal connection

Ground mode :M4 screw terminal connection

V network and VL network side: T-junction BNC connection

Vnet/IP end :UTP cable (CAT5e or better)
