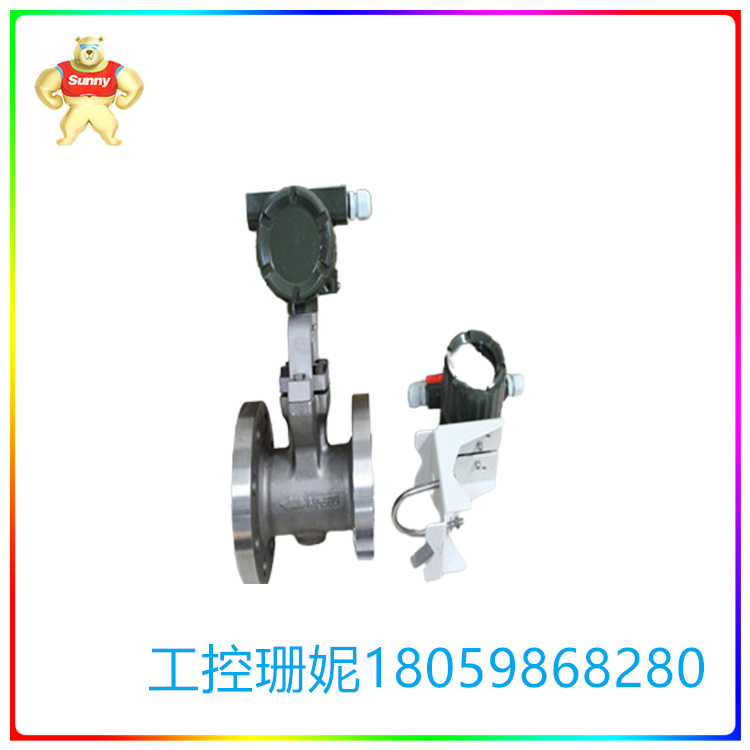

DY080-DALAA2-0D 涡街流量计 YOKOGAWA

【产品详情】

横河电机DY050-DALAA2-0D涡街流量计说明

横河电机DY050-DALAA2-0D涡街流量计 横河电机DY涡街流量计

将全球安装的400多万台设备中使用的经过现场验证的传感器和主体组件与独特而强大的数字技术组合相结合，包括横河电机的创新频谱信号处理（SSP）。数字YEWFLO涡街流量计即使在恶劣的过程条件下也准确稳定，并且具有高度可靠和坚固的设计，可提高工厂效率并降低运营成本;

digitalYEWFLO涡街流量计多变量型是最适合蒸汽应用的流量计，在实心脱落杆（涡流发生器）中内置电阻温度传感器（Pt1000）。

可以同时输出模拟和脉冲信号，在显示屏上显示流量的同时，还可以显示流体温度作为温度监控功能。它有助于降低使用蒸汽作为热介质的生产线的总成本和节能。

RTD 内置于脱落器条（涡流发生器）

  数字YEWFLO涡街流量计多变量型 - RTD内置于脱落杆中

内置温度传感器安装在脱落杆内。

根据温度传感器的信号，温度传感器由作为保护管的脱落杆保护，计算饱和蒸汽的质量流量。

温度显示功能

  数字YEWFLO涡街流量计多变型-温度显示功能

脱落杆内的内置温度计允许同时显示瞬时流量和流体温度。

质量流量计算功能

数字YEWFLO涡街流量计多变量型 - 质量流量计算功能

多变量型内置蒸汽表，因此可以从测量的流体温度自动计算并直接输出饱和蒸汽的质量流量。

此外，通过FOUNDATION现场总线通信类型，算术（AR）功能块通过使用外部压力/温度输入（/MV：内部温度输入）高精度地扩展了饱和蒸汽、过热蒸汽、气体和天然气的质量流量计算功能。结合 FSA120 流量导航器软件，使用 AGA 8 号天然气温度校正计算或使用一般天然气、天然气和液体的物理属性数据库 （DIPPR） 实现高精度质量流量计算输出。

DY080-DALAA2-0D 涡街流量计 YOKOGAWA

【英文介绍】

Yokogawa DY050-DALAA2-0D vortex flowmeter description

Yokogawa Motor DY050-DALAA2-0D Vortex flowmeter Yokogawa Motor DY vortex flowmeter

Combine field-proven sensors and body components used in more than 4 million devices installed worldwide with a unique and powerful portfolio of digital technologies, including Yokogawa Electric's innovative spectrum signal processing (SSP). The digital YEWFLO vortex flowmeter is accurate and stable even under harsh process conditions, and features a highly reliable and rugged design that increases plant efficiency and reduces operating costs;

The digitalYEWFLO Vortex flowmeter Multivariable is the most suitable flowmeter for steam applications, with a built-in resistance temperature sensor (Pt1000) in a solid shedding rod (vortex generator).

Analog and pulse signals can be output at the same time, while the flow rate is displayed on the display screen, the fluid temperature can also be displayed as a temperature monitoring function. It helps reduce the overall cost and energy savings of production lines that use steam as a thermal medium.

RTD built-in stripper (vortex generator)

The digital YEWFLO Vortex flowmeter multivariable - RTD is built into the drop off rod

The built-in temperature sensor is installed in the drop bar.

Based on the signal of the temperature sensor, which is protected by a drop rod as a protective tube, the mass flow rate of the saturated steam is calculated.

Temperature display function

Digital YEWFLO vortex flowmeter multi-variant - temperature display function

A built-in thermometer in the drop bar allows instantaneous flow and fluid temperature to be displayed simultaneously.

Mass flow calculation function

Digital YEWFLO Vortex flowmeter Multivariable - mass flow calculation function

The multi-variable built-in steam meter allows automatic calculation and direct output of the mass flow of saturated steam from the measured fluid temperature.

In addition, with the FOUNDATION fieldbus communication type, the arithmetic (AR) function block extends the mass flow calculation of saturated steam, superheated steam, gas and natural gas with high accuracy by using external pressure/temperature input (/MV: internal temperature input). Combined with the FSA120 flow Navigator software, high precision mass flow calculation output is achieved using the AGA 8 natural gas temperature correction calculation or using the General Natural Gas, Natural gas and Liquid Physical Properties Database (DIPPR).

DY080-DALAA2-0D 涡街流量计 YOKOGAWA
