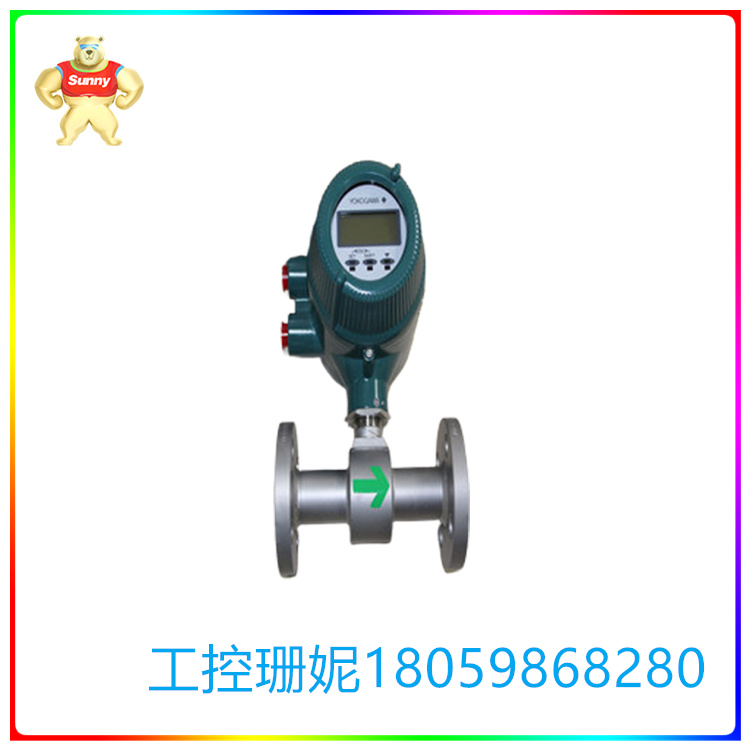

AXF125G电磁流量计YOKOGAWA AXF125G

【产品详情】

追求用户友好性

广泛的电极粘附诊断

监测绝缘子与电磁流量计电极的粘附状态，并根据诊断结果确定维护时间。

现场接线端口方向变更

由于可以通过旋转转换单元或接线盒自由改变配线端口的方向，因此可以灵活地响应现场布线和配管工作。 （一般型、卫生型、防爆型）

丰富的显示功能

集成显示单元使用全点阵LCD，因此可以进行1~3行显示和片假名显示等各种显示。 它还会在发生警报时显示特定的对策。

简单的设置参数

提取常用参数并将其组合到一个块中。 一般功能只能通过此块的参数来实现。 此外，由于采用了红外开关，因此无需打开外壳盖即可设置参数。

新面孔之间的采用

晶圆形状比传统晶圆类型短达 52 mm。 此外，法兰类型采用符合ISO标准的表面间距。 考虑到与传统型号（ADMAG，YEWMAG系列）的兼容性，还提供替代兼容产品。

安装后即可上线

由于出厂时设置了主要参数，因此只需打开电源即可在安装和接线后立即操作。

改进的性能和规格

扩展双频励磁方式

可以选择扩展的双频激励方法，进一步改善横河电机专有的双频激励技术的功能。 即使对于要求更高的应用，如高浓度浆料混合流体和低电导率流体，也可以进行稳定的电磁流量测量。

最小电导率为 1 μS/cm

最小电导率已提高到1 μS/cm。 （因直径和流体条件而异）

高速脉冲输出

它将脉冲输出加速到 10000 pps（每秒脉冲数），可用于小批量等应用。

丰富的输入/输出功能

集成形式还配备了丰富的输入/输出功能。

AXF125G电磁流量计YOKOGAWA AXF125G

【英文介绍】

Pursue user friendliness

Extensive electrode adhesion diagnostics

Monitor the adhesion of the insulator to the electrode of the electromagnetic flowmeter, and determine the maintenance time according to the diagnostic results.

The direction of the onsite cable port is changed. Procedure

Because the direction of the wiring port can be freely changed by rotating the conversion unit or junction box, it can flexibly respond to field wiring and piping work. (General type, sanitary type, explosion-proof type)

Rich display function

The integrated display unit uses a full-dot matrix LCD, so it can display one to three lines and katakana. It also displays specific countermeasures in the event of an alarm.

Simple parameter setting

Extract common parameters and combine them into a block. General functionality can only be achieved through the parameters of this block. In addition, thanks to the infrared switch, parameters can be set without opening the housing cover.

Adoption among new faces

The wafer shape is up to 52 mm shorter than traditional wafer types. In addition, flange types use ISO-compliant surface spacing. Taking into account compatibility with traditional models (ADMAG, YEWMAG series), alternative compatible products are also available.

Install and go online

Since the main parameters are set at the factory, you can simply turn on the power to operate immediately after installation and wiring.

Improved performance and specifications

Extended dual-frequency excitation mode

An expanded dual-frequency excitation method can be selected to further improve the functionality of Yokogawa's proprietary dual-frequency excitation technology. Even for more demanding applications, such as high concentration slurry mixing fluids and low conductivity fluids, stable electromagnetic flow measurements are possible.

The minimum conductivity is 1 μS/cm

The minimum conductivity has been increased to 1 μS/cm. (varies by diameter and fluid conditions)

High speed pulse output

It accelerates the pulse output to 10,000 pps (pulses per second) and can be used for applications such as small batches.

Rich input/output functions

The integrated form is also equipped with rich input/output functions.
