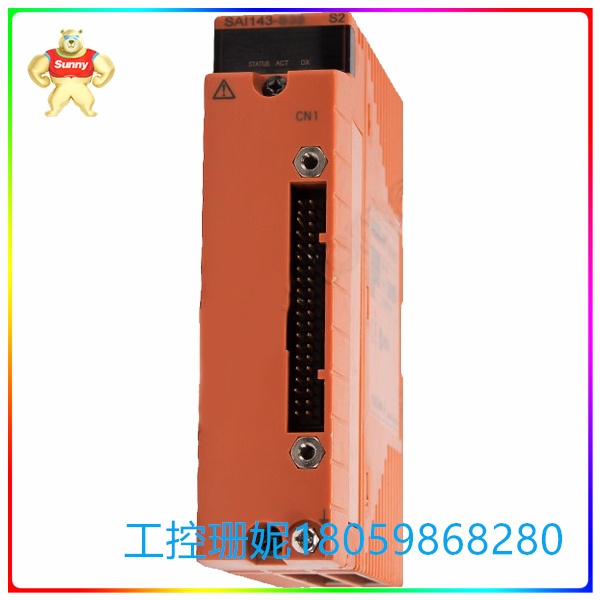

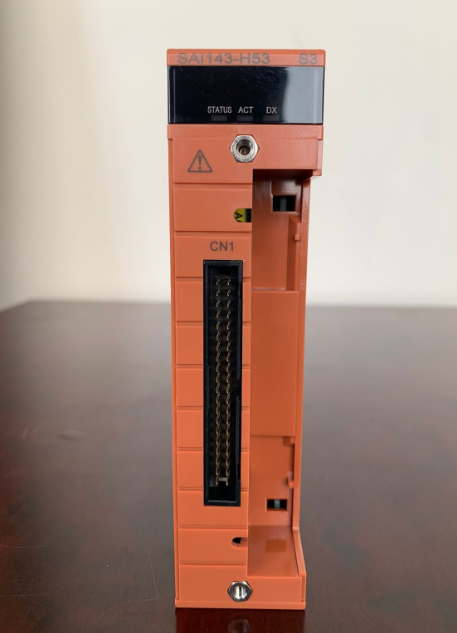

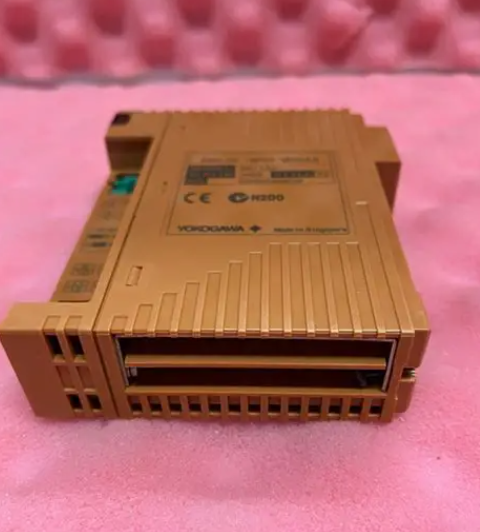

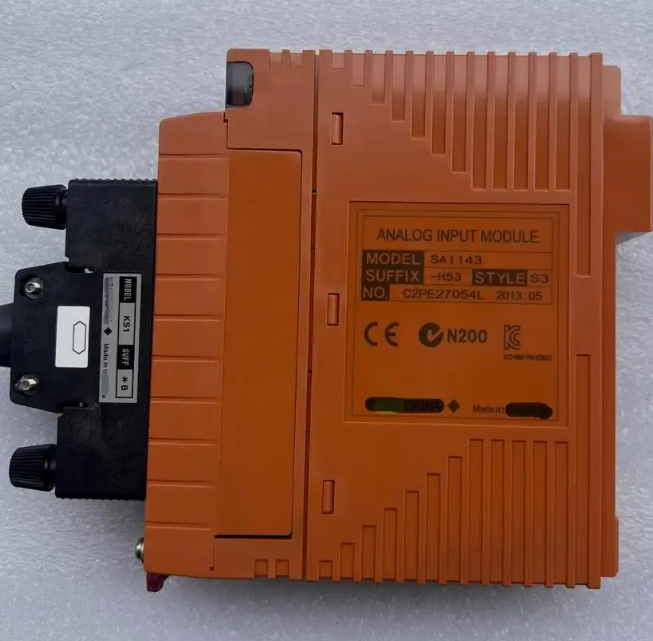

☆型号：SAI143-H53-S2 模拟输入模块 电缆接口适配器
【产品详情】
制造商:横河
产品编号:AAI143-H53/K4A00
产品类型:模拟输入模块
h:带数字通信(HART协议)
5:无防爆保护
3:带ISA标准G3选项和温度(-20至70°C)选项
K4A00:带KS电缆接口适配器(用于连接AEA4D端子板)[型号:ATK4A-00]
输入通道数:16，隔离
输入信号:4至20毫安
容许输入电流:24毫安
耐受电压:输入和系统之间:1500 V交流电，持续1分钟
输入电阻
开机:270？(20毫安)到350？(4毫安)
断电:500 k？或更大
精度:16安
数据更新周期:10毫秒
变送器电源:19.0 V或更高(20 mA时)25.5 V或更低(0 mA时)(输出电流限制:25 mA)
2线或4线变送器的设置:通过设置引脚为每个通道设置
环境温度变化引起的漂移:16 A/10 C
最大电流消耗:230毫安(5伏DC)，540毫安(24伏DC)
外部通信:压力钳端子、MIL连接器电缆、专用电缆(KS1)
☆型号：SAI143-H53-S2 模拟输入模块 电缆接口适配器
【英文介绍】
Manufacturer: Yokogawa
Product Number :AAI143-H53/K4A00
Product type: Analog input module
h: With digital communication (HART protocol)
5: No explosion protection
3: G3 options with ISA standard and temperature (-20 to 70°C) options
K4A00: Adapter with KS cable interface (for connecting AEA4D terminal board)[Model :ATK4A-00]
Input channels :16, isolated
Input signal :4 to 20 MA
Allowable input current :24 MA
Withstand voltage: Between input and system :1500 V AC for 1 minute
Input resistance
Boot :270? (20 mah) to 350? (4 MA)
Power off :500 k? Or greater
Accuracy :16 amps
Data update period :10 ms
Transmitter power supply: 19.0V or higher (20 mA) 25.5V or lower (0 mA) (Output current limit :25 mA)
Setup of 2-wire or 4-wire transmitters: Set for each channel by setting the pin
Drift due to ambient temperature change :16 A/10 C
Maximum current consumption :230 MA (5 V DC), 540 MA (24 V DC)
External communication: Pressure clamp terminals, MIL connector cables, Special cables (KS1)
