☆型号：SB401-50 ESB总线接口从属模块 ESB总线耦合器模块
【产品详情】

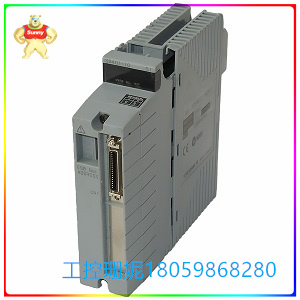

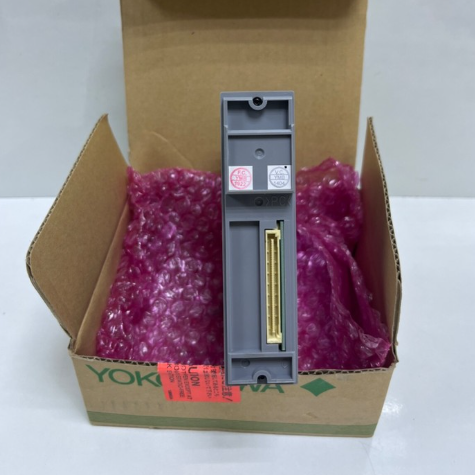

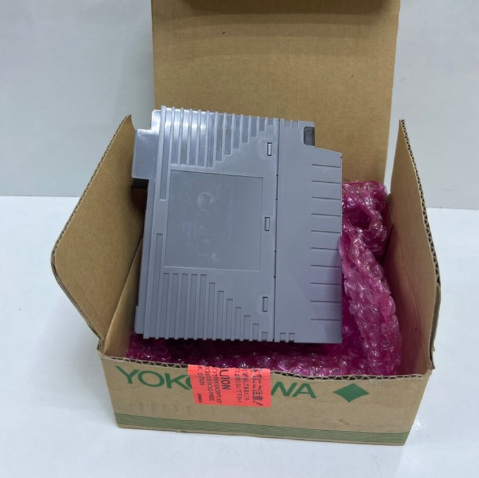

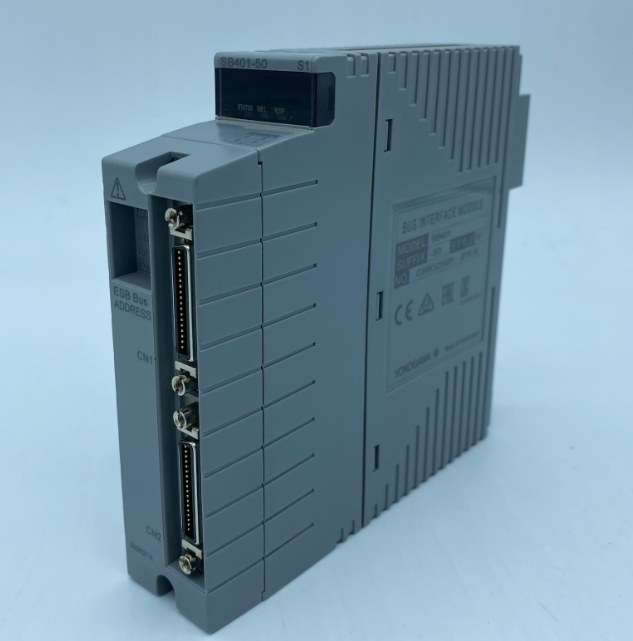

日本横河YOKOGAWA模块SB401-50
ESB总线接口从属模块是一个总线接口模块，通过ESB总线连接现场控制单元和ESB总线节点单元。
通过ESB总线连接ESB总线的节点单元。该模块与ESB总线耦合器模块
(EC401, EC402)结合使用，可以安装在FIO节点单元中。ESB总线的双冗余配置可以通过安装2个模块来实现。
安装2个模块。
n 标准规格
功能。ESB总线的从属接口功能
可连接单元的数量。最大。9个单元 (*1)
传输速度：128 Mbps（I/O模块数据传输
传输距离。最大。10 m
重量。约0.29公斤 (*2)
*1: 数量根据FCS数据库的不同而不同。
*2: 包括ESB总线适配器（A2EE1A）。
SB401可以安装在以下单元中。
FIO节点单元。ANB10D, ANB10S
底板。A2BE2D
<安装限制条件>。
SB401必须安装在B1-B2插槽中。
在单一配置的情况下，SB401必须安装在B1插槽中，而Dummy Cover（ADCV01）必须安装在B2插槽中。
必须安装在B2插槽中。
双冗余配置是通过安装2个相同型号的模块来实现的。
n ESB总线适配器
为了将 SB401 连接到 ESB 总线，必须将 ESB 总线适配器（A2EE1A）连接到 ESB 总线连接器上。选择
根据 ESB 总线的配置，选择要使用的 ESB 总线适配器。
在ESB总线被分支到下一个SB401的情况下，使用A2EE1A-N（ESB总线的连接器单元）。
在ESB总线被终止的情况下，使用A2EE1A-T（ESB总线用带终止器的连接器单元）。
☆型号：SB401-50 ESB总线接口从属模块 ESB总线耦合器模块
【英文介绍】
Japan YOKOGAWA Module SB401-50
The ESB Bus Interface slave module is a bus interface module that connects the field control unit to the ESB bus node unit via the ESB bus.
Node units connected to the ESB bus through the ESB bus. This module is coupled with the ESB bus module
(EC401, EC402) used in combination, can be installed in the FIO node unit. Dual redundancy configuration of the ESB bus can be achieved by installing two modules.
Install two modules.
n Standard Specifications
Features. Slave interface function of the ESB bus
The number of connected units. Max. 9 units (*1)
Transmission speed: 128 Mbps (I/O module data transmission
Transmission distance. Max. 10 m
The weight. Approximately 0.29 kg (*2)
*1: The amount varies depending on the FCS database.
*2: Includes ESB bus adapter (A2EE1A).
The SB401 can be installed in the following units.
FIO node unit. ANB10D, ANB10S
The bottom plate. A2BE2D
< Installation restrictions >.
The SB401 must be installed in slots B1-B2.
In the case of a single configuration, the SB401 must be installed in slot B1 and the Dummy Cover (ADCV01) must be installed in slot B2.
It must be installed in the B2 slot.
Dual redundancy is achieved by installing two modules of the same model.
n ESB bus adapter
In order to connect the SB401 to the ESB bus, you must connect the ESB Bus adapter (A2EE1A) to the ESB bus connector. Select
Select the ESB bus adapter to use based on the ESB bus configuration.
In the case that the ESB bus is branched to the next SB401, the A2EE1A-N (connector unit for the ESB bus) is used.
In case the ESB bus is terminated, the A2EE1A-T (connector unit with terminator for ESB bus) is used.
