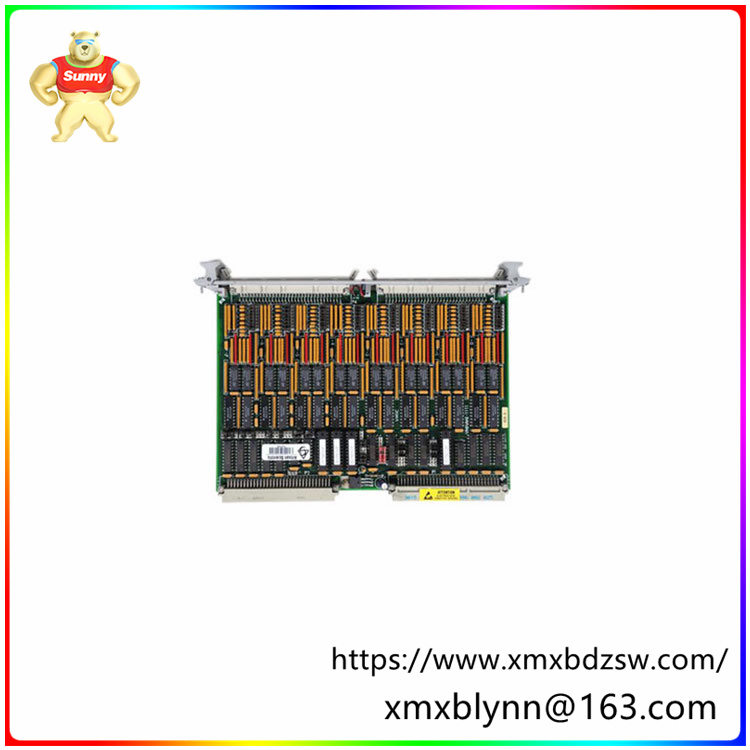

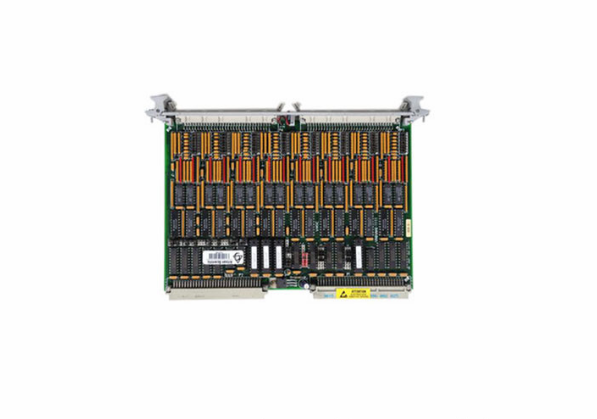

VMIVME-1111 数字输入模块 64位差分或高压数字输入

>>>>>型号:VMIVME-1111   数字输入模块    64位差分或高压数字输入

【功能描述】

VMIVME-1111是一款数字输入模块，具有特定的功能和特点。以下是对其功能和特点的简要描述：

功能：

地址映射选择：VMIVME-1111提供了无限的短数据I/O地址映射选择，这使得用户可以根据需求灵活地配置和选择地址映射方案。

输入端口：该模块具有8个输入端口，每个端口为16位宽，允许用户连接多个输入源。

寻址方案：VMIVME-1111的32个端口可以在8位、30位或66位边界上单独寻址，同时还有一个可在100位边界上寻址的CSR（可能指配置空间寄存器或控制状态寄存器）。

特点:

64位差分或高压数字输入

●每组32路输入均为跳线可选监控;

触点闭合、电压源、电流下沉或差动信号

●开路提供逻辑零或跳线可选逻辑一个

●输入滤波器选项

●板载内置测试逻辑，用于故障检测和隔离

●前面板带故障LED

●用户可选择输入电压阈值(1.25至66V)

●提供兼容RS422/ rs485差分线接收器土7V抗噪

●8位、16位或32位数据传输

●双欧洲卡外形

●高可靠性din型I/0连接器

●兼容GE发那科嵌入式系统系列

智能l/0控制器(901x和906x系列)

●电源更换选项

●软件可与VMIVME-1110

●光隔离可与配套抑制ponel;例如VMIVME 3451。这符合ANSI/IEEE STD C37.90.1-1982防雷要求

【英文介绍】

The VMIVME-1111 is a digital input module with specific functions and features. Here is a brief description of its functions and features:

Features:

Address mapping options: The VMIVME-1111 provides unlimited short data I/O address mapping options, which gives users the flexibility to configure and select an address mapping scheme according to their needs.

Input ports: The module has 8 input ports, each 16 bits wide, allowing users to connect multiple input sources.

Addressing scheme: The VMIVME-1111's 32 ports can be individually addressed on 8-bit, 30-bit, or 66-bit boundaries, while there is also a CSR (which may refer to the configuration space register or control status register) that can be addressed on the 100-bit boundary.

Features:

64-bit differential or high voltage digital input

● Each group of 32 inputs are jumper optional monitoring;

Contact closure, voltage source, current dip or differential signal

● Open circuit provides logic zero or jumper optional logic one

● Enter filter options

● Onboard built-in test logic for fault detection and isolation

● Front panel with faulty LED

● User can select input voltage threshold (1.25 to 66V)

● Compatible RS422/ rs485 differential line receiver 7V anti-noise

● 8-bit, 16-bit or 32-bit data transfer

● Double European card shape

● High reliability din type I/0 connector

● Compatible with GE Fanuc embedded system series

Intelligent l/0 controller (901x and 906x series)

● Power replacement option

● Software can work with VMIVME-1110

● Optical isolation can be used to suppress ponel; For example, VMIVME 3451. This complies with ANSI/IEEE STD C37.90.1-1982 lightning protection requirements
