VMIVME-5620 Encore HSD 的 HSD 仿真器 支持PCIe、SATA、USB等现代接口

☆型号：VMIVME-5620  Encore HSD 的 HSD 仿真器    支持PCIe、SATA、USB等现代接口

【产品详情】

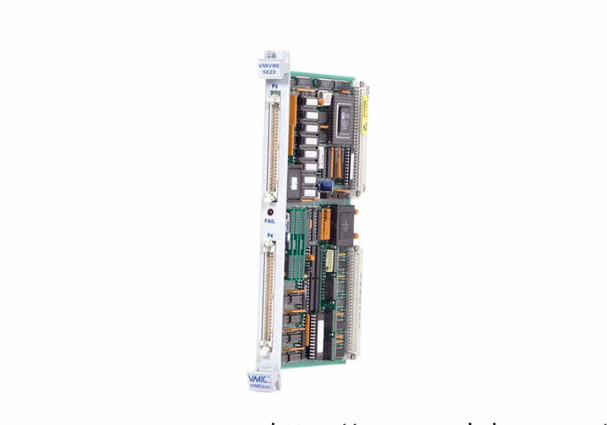

VMIVME-5620 是一款兼容 Encore HSD 的 HSD 仿真器，在双欧洲卡上实现。两根两端带有插座连接器的扁平 50 芯电缆将 VMIVME-5620 连接到 Encore HSD/IBL 接口或其他 HSD 兼容设备。

VMIVME-5620 使用集成的 VMEbus 接口 （Cypress VIC068） 和带有处理器和内存的板载本地总线，用于解释基于主机的 I/O 控制块 （IOCB） 的列表 （IOCL）。VMEbus 接口提供可变宽度的主机全局内存访问，以及对主机中断处理程序的中断。

VMIVME-5620 既可以用作 HSD 主站，也可以用作 HSD 从站。但是，VMIVME-5620 的设计特点使其作为 HSD 主站特别有效地将主机处理器开销降至最低。

特征：

高性能HSD接口设计

从内存中的列表执行命令

IBL 兼容性：高优先级或低优先级

HSD 外部模式支持

以下是VMIVME-5620的主要功能和特点：

多接口桥接：VMIVME-5620不仅提供VMEbus接口，还可能支持PCIe、SATA、USB等现代接口。这使得它能够连接各种高性能的存储、网络和I/O设备，从而提升了整个系统的性能。

高性能传输：该板卡采用先进的传输技术，能够实现高速、低延迟的数据传输。无论是从VMEbus到其他接口，还是其他接口到VMEbus，都能保持高效的数据流通。

灵活配置：VMIVME-5620支持多种配置选项，用户可以根据实际需求调整板卡的设置，以满足不同的应用场景。这种灵活性使得它能够适应各种复杂的系统环境。

【英文介绍】

The VMIVME-5620 is an Encore HSD compliant HSD emulator implemented on dual Eurocards. Two flat 50-core cables with socket connectors at both ends connect the VMIVME-5620 to the Encore HSD/IBL interface or other HSD-compatible devices.

The VMIVME-5620 uses an integrated VMEbus interface (Cypress VIC068) and an on-board local bus with a processor and memory for interpreting the list of host based I/O control blocks (IOCBs) (IOCL). The VMEbus interface provides variable-width global memory access to the host, as well as interrupts to the host interrupt handler.

VMIVME-5620 can be used as both HSD master and HSD slave station. However, the design features of the VMIVME-5620 make it particularly effective as an HSD master to minimize host processor overhead.

Features:

High-performance HSD interface design

Execute commands from a list in memory

IBL compatibility: High priority or low priority

HSD external mode support

The following are the main functions and features of VMIVME-5620:

Multi-interface bridge: The VMIVME-5620 not only provides VMEbus interfaces, but also may support PCIe, SATA, USB and other modern interfaces. This enables it to connect a wide range of high-performance storage, networking, and I/O devices, which improves overall system performance.

High performance transmission: The board adopts advanced transmission technology to achieve high speed and low latency data transmission. Maintain efficient data flow from VMEbus to other interfaces and from other interfaces to VMEbus.

Flexible configuration: The VMIVME-5620 supports multiple configuration options. Users can adjust the board Settings based on actual requirements to meet different application scenarios. This flexibility allows it to adapt to a variety of complex system environments.
