VMIVME-HSD 68430 DMA控制器芯片 32 位 DMA 传输

☆型号：VMIVME-HSD   68430 DMA控制器芯片    32 位 DMA 传输

【产品详情】

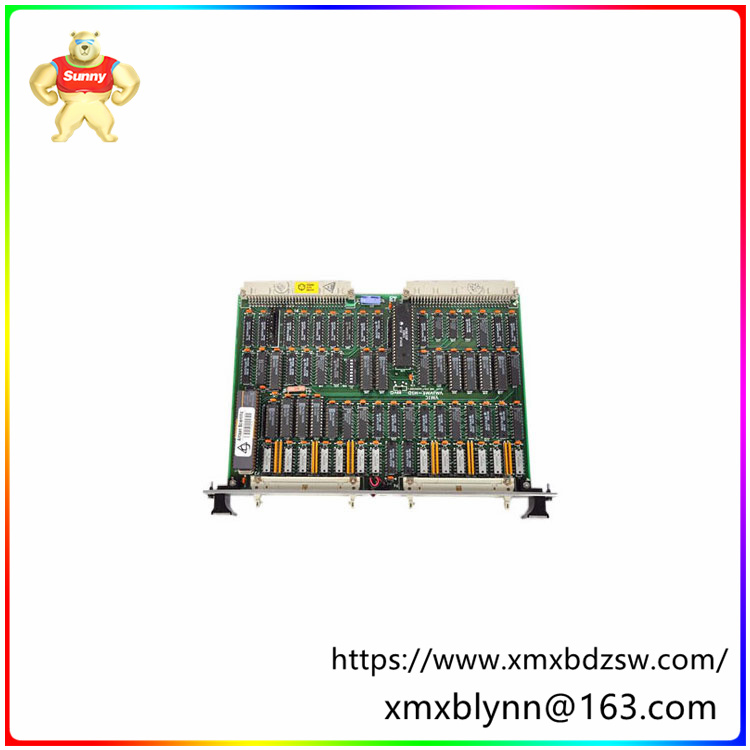

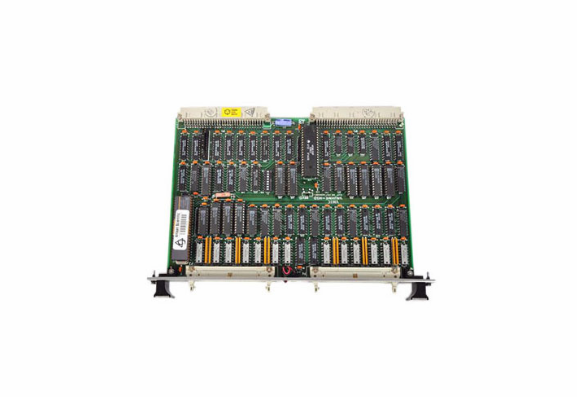

 VMIVME-HSD的主要功能是在VMEbus和Encore HSD总线间链路（IBL）之间提供高性能的32位DMA链路。它集成了68430 DMA控制器芯片来执行DMA传输，并提供了必要的逻辑来控制与Encore HSD之间的传输。此外，VMIVME-HSD还包含实现VMEbus中断器的逻辑，以及允许VMEbus中断Encore HSD的逻辑。

特征：

32 位 DMA 传输

HSD 兼容性

IBL 兼容性

VMIVME-HSD / -HSDA 在 VMEbus 和 Encore HSD 型号 9132 和 Encore 型号 9136 总线间链路 （IBL） 之间提供高性能 32 位 DMA 链路。VMIVME-HSD / -HSDA 集成了一个 68430 DMA 控制器芯片来执行其 DMA 传输，并提供在与 Encore HSD 之间的传输过程中控制 VMEbus 所需的逻辑。VMIVME-HSDA 还包含用于实现 VMEbus 中断器的逻辑和允许 VMEbus 中断 Encore HSD 的逻辑。

特征：

• 32 位 DMA 传输

• HSD 兼容性

• IBL 兼容性

• 用作 HSD 从站或 HSD 主机（修订版 F 板）

• 也可用作 IBL 高优先级接口或 IBL 低优先级接口

• 两块板组可用作 VME 到 VME 链路

• 兼容

VMEbus （IEEE P1014） • 可编程中断向量和电平

• 可编程VMEbus地址修饰符

• 故障指示灯

• 开关可选板地址

• 使用 VME 短 I/O 地址空间进行板载寄存器寻址

【英文介绍】

 The main function of the VMIVME-HSD is to provide a high-performance 32-bit DMA link between the VMEbus and Encore HSD Interbus Link (IBL). It integrates the 68430 DMA controller chip to perform DMA transfers and provides the necessary logic to control transfers to and from the Encore HSD. In addition, the VMIVME-HSD contains logic that implements the VMEbus interrupter, as well as logic that allows the VMEbus to interrupt the Encore HSD.

Features:

32-bit DMA transfer

HSD compatibility

IBL compatibility

The VMIVME-HSD / -HSDA provides a high-performance 32-bit DMA link between the VMEbus and the Encore HSD Model 9132 and Encore Model 9136 Interbus links (IBL). The VMIVME-HSD / -HSDA integrates a 68430 DMA controller chip to perform its DMA transfers and provides the logic needed to control the VMEbus during transfers to and from the Encore HSD. The VMIVME-HSDA also contains logic for implementing the VMEbus interrupter and logic that allows the VMEbus to interrupt the Encore HSD.

Features:

• 32-bit DMA transfer

• HSD compatibility

• IBL compatibility

• Used as an HSD slave or HSD host (revised F-board)

• It can also be used as an IBL high-priority interface or an IBL low-priority interface

• Two board groups can serve as VME to VME links

• Compatible

VMEbus (IEEE P1014) • Programmable interrupt vectors and levels

• Programmable VMEbus address modifiers

• Fault indicator light

• Switch optional board address

• On-board register addressing using VME short I/O address space
