XVME-654 VMEbus处理器 支持4、8、16和32 MBEDO DRAM

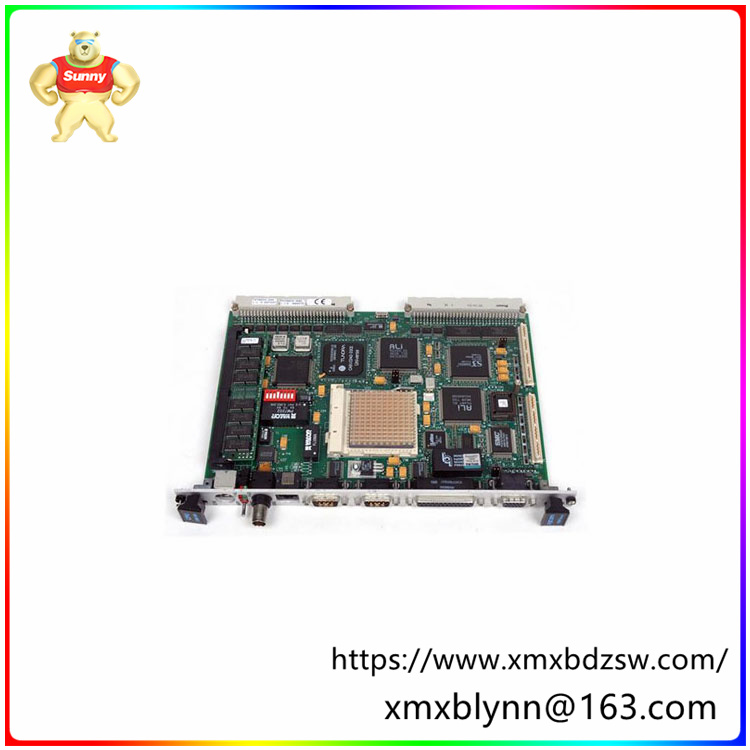

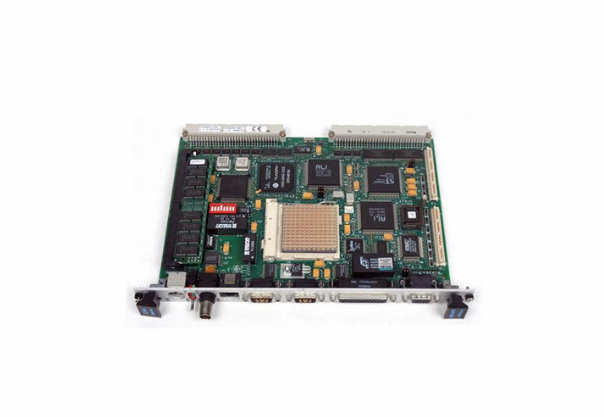

☆型号：XVME-654  VMEbus处理器    支持4、8、16和32 MBEDO DRAM

【产品详情】

XVME-654 PC兼容VMEbus处理器mod规则是VMEbus PC技术的先驱和领导者Xycom Automa的最新VME PC产品。新设计集成了一个AM5x86处理器具有PCI-to-VMEbus接口，提供最新的

高性能VMEbus技术。

XVME-654的核心是133 MHz的AM5x86CPU。CPU的16k板载回写缓存最小化CPU等待数据的时间说明，加速业务和多媒体应用。进一步提升其性能xme -654支持4、8、16和32 MBEDO DRAM。提供了额外的性能增强通过外围组件的实现PCI总线。PCI总线是最快的本地总线为AT系统设计的总线。它与高速视频控制器，增强型IDE控制器和车载以太网控制器。

特性

•133 MHz AM5x86™

•支持4mb ~ 32mb的DRAM

•PCI本地总线

•PCI本地总线SVGA控制器，分辨率高达

1024 × 768

•PCI增强的IDE控制器

•PCI到VMEbus接口

•两个16550兼容的串口

•EPP或ECP并口

•可选PCI和ISA扩展

•嵌入式PCI以太网控制器与10BaseT和

10 base2接口

【英文介绍】

The XVME-654 PC Compatible with VMEbus processors mod rule is the latest VME PC product from Xycom Automa, a pioneer and leader in VMEbus PC technology. The new design integrates an AM5x86 processor with a PCI-to-VMEbus interface, providing the latest

High-performance VMEbus technology.

At the heart of the XVME-654 is a 133 MHz AM5x86CPU. The CPU's 16k on-board write back cache minimizes the time the CPU spends waiting for data, speeding up business and multimedia applications . The xme-654 supports 4, 8, 16, and 32 MBEDO DRAM. Additional performance enhancements are provided through the implementation of peripheral components of the PCI bus. PCI bus is the fastest local bus designed for AT systems. It comes with a high-speed video controller, an enhanced IDE controller and an onboard Ethernet controller.

Features

• 133 MHz AM5x86™

• Supports 4 MB to 32 MB DRAM

• PCI local bus

• PCI local bus SVGA controller, with resolutions up to

1024 x 768

• PCI enhanced IDE controller

• PCI to VMEbus interface

• Two 16550-compatible serial ports

• EPP or ECP parallel port

• Optional PCI and ISA expansion

• Embedded PCI Ethernet controller with 10BaseT and

10Base2 interface
