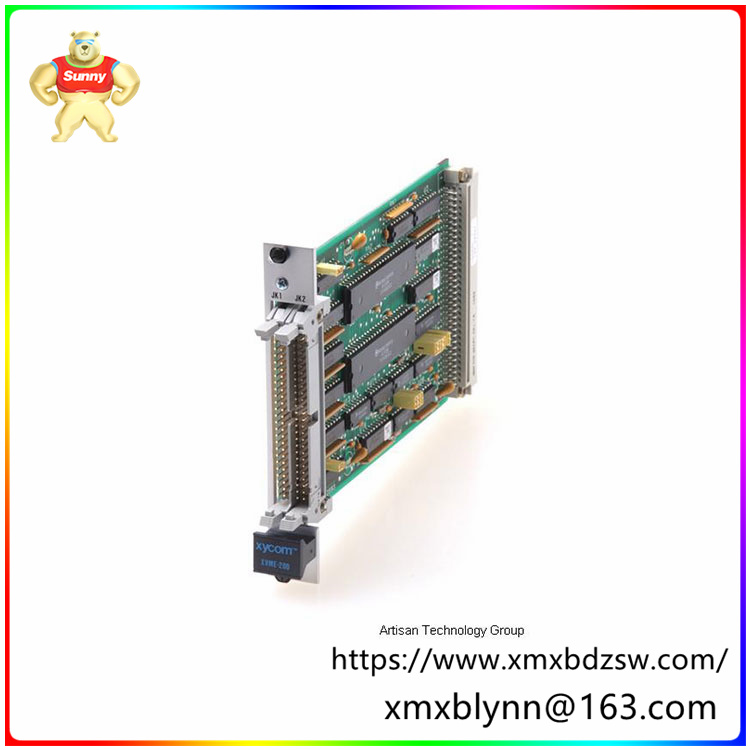

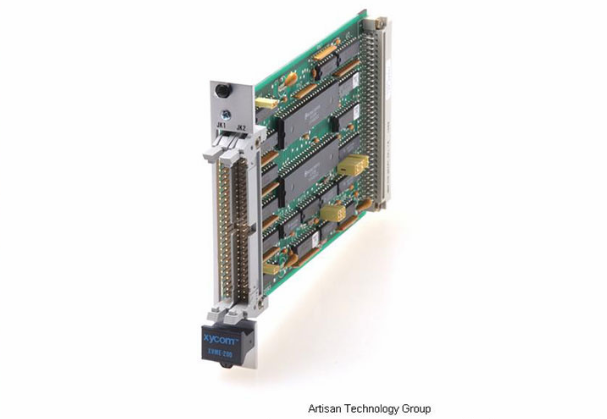

XVME-200 数字I/O模块 具备32通道的TTL电平的I/O以及2个24位定时器

>>>>>型号:XVME-200  数字I/O模块    具备32通道的TTL电平的I/O以及2个24位定时器

【功能描述】

XVME-200是VME总线兼容的数字I/O模块，具备32通道的TTL电平的I/O以及2个24位定时器。它是一款单高（3U）的VME总线与前端面板模块的I/O设备。

XVME-200在工业自动化、控制系统等领域具有广泛的应用，为各种复杂的系统提供了灵活且强大的解决方案。其高性能和稳定性使得它能够满足工业自动化系统对实时性、准确性和可靠性的要求。

此外，XVME-200的设计使得用户可以方便地进行编程和配置，以满足特定的应用需求。同时，其模块化的设计也使得系统的维护和升级变得更加简单和高效。

特征：

68230 并行接口/定时器芯片

缓冲输入和输出

握手

VMEbus 中断

两个 24 位定时器

Xycom XVME-200 / XVME-201 / XVME-290 数字 I/O 模块是具有成本效益的数字 I/O 模块。XVME-200 和 XVME-201 是单高 VMEbus 兼容数字 I/O 模块。XVME-200 提供具有 32 个 TTL 级 I/O 通道的 VMEbus 系统，以及两个 24 位定时器器件。XVME-201 提供 48 个通道。

XVME-200 包含两个具有 VMEbus 中断功能的 68230 并行接口/定时器 （PI/T） 设备。来自 PI/T 器件的 I/O 信号方向可通过软件选择，为四个独立的 8 位端口。XVME-200 的所有输入和输出均经过缓冲。前面板连接器的引脚排列与 OPTO 22 型信号调理设备兼容。

对于不允许将 I/O 从前面板路由出来的应用，XVME-290 提供与 XVME-200 相同的 6U 外形尺寸，并且 I/O 通过板背面的 VMEbus P2 连接器进行路由。

【英文介绍】

The XVME-200 is a VME bus compatible digital I/O module with 32-channel TTL level I/O and two 24-bit timers. It is a single-height (3U) VME bus with a front panel module for I/O devices.

XVME-200 has a wide range of applications in industrial automation, control systems and other fields, providing a flexible and powerful solution for a variety of complex systems. Its high performance and stability make it able to meet the requirements of real-time, accuracy and reliability of industrial automation systems.

In addition, the XVME-200 is designed so that users can easily program and configure it to meet specific application requirements. At the same time, its modular design also makes the maintenance and upgrade of the system easier and more efficient.

Features:

68230 Parallel interface/timer chip

Buffer input and output

Shake hands

The VMEbus is interrupted. Procedure

Two 24-bit timers

The Xycom XVME-200 / XVME-201 / XVME-290 digital I/O module is a cost-effective digital I/O module. XVME-200 and XVME-201 are single-height VMEbus compatible digital I/O modules. The XVME-200 offers a VMEbus system with 32 TTL-level I/O channels, as well as two 24-bit timer devices. XVME-201 provides 48 channels.

The XVME-200 contains two 68230 parallel interface/timer (PI/T) devices with VMEbus interrupt functionality. The direction of the I/O signal from the PI/T device can be selected by software for four independent 8-bit ports. All inputs and outputs of XVME-200 are buffered. The pin arrangement of the front panel connector is compatible with OPTO Type 22 signal conditioning equipment.

For applications that do not allow I/O to be routed out of the front panel, the XVME-290 offers the same 6U form factor as the XVME-200, and I/O is routed through the VMEbus P2 connector on the back of the board.
