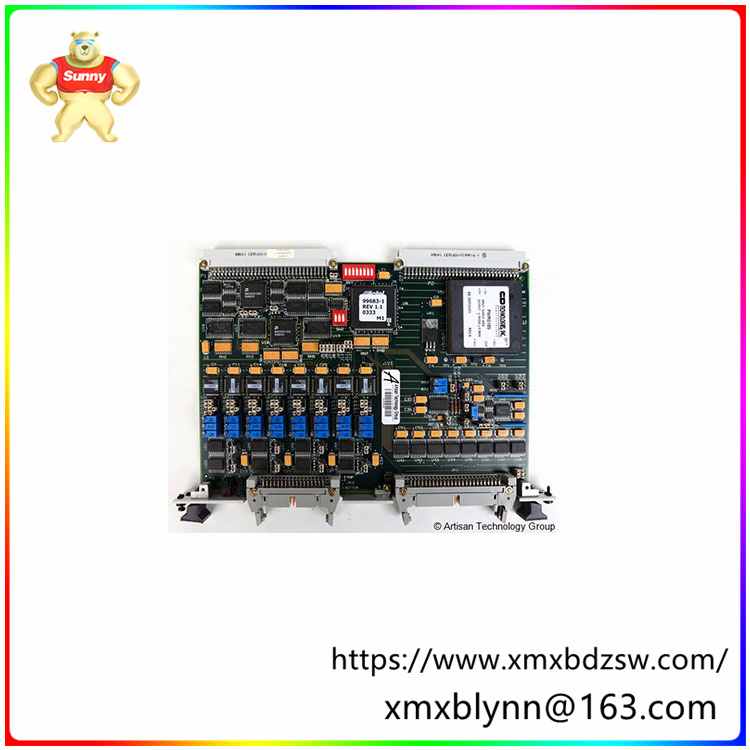

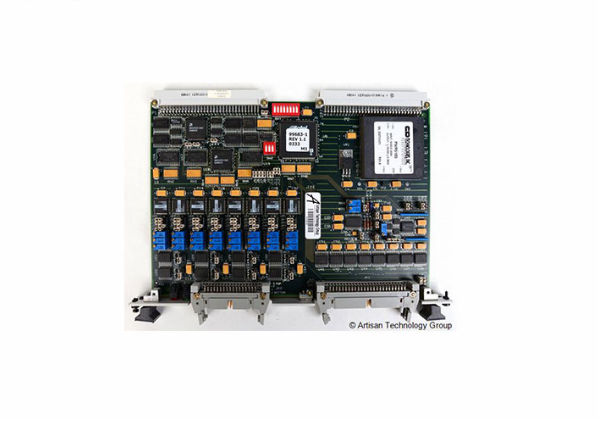

XVME-542 VME总线模块 提供更高的分辨率、速度和通道数

>>>>>型号:XVME-542   VME总线模块   提供更高的分辨率、速度和通道数

【功能描述】

XVME-542是一款多功能VME总线模块，它集模拟输入、输出和数字输入/输出功能于一体。这款模块在工业自动化和控制系统领域有着广泛的应用，为各种复杂的系统提供了灵活且强大的解决方案。

首先，XVME-542具有多个模拟输入通道，这些通道可以接收来自传感器或其他设备的模拟信号，并将其转换为数字数据以供系统处理。这使得它能够实时地监测和控制各种工业过程中的物理量，如温度、压力、流量等。

其次，该模块还具备模拟输出功能，能够将数字信号转换为模拟信号，以驱动执行器或其他设备。这使得XVME-542能够实现对工业设备的精确控制，确保生产过程的稳定性和效率。

特征：

64 个单端或 32 个差分 16 位输入通道

8 个 12 位模拟输出通道

100 KHz吞吐量（单通道模式）

0.003% FSR 精度（单通道模式）

软件可编程的单个输入增益

可编程中断定时器

同步输出模式

XVME-542 模拟输入/输出模块是一款功能强大的 VMEbus 兼容 I/O 模块，可执行 16 位 A/D 和 12 位 D/A 转换。XVME-542 包含 64 个单端、32 个差分或 64 个伪差分模拟输入通道。输入通道可以编程为在五种工作模式之一下工作：随机通道、顺序通道、单通道、外部触发或自动扫描。可以在 8、16、32 或 64 个通道上执行自动扫描。单个通道增益可在三个跳线选择范围之一内进行软件编程。XVME-542 还包含 8 个模拟输出通道。这些输出通道可以配置为电压或电流输出。支持透明和同步频道更新模式。XVME-542 与 XVME-540 模拟输入/输出模块引脚兼容，同时提供更高的分辨率、速度和通道数。

【英文介绍】

XVME-542 is a multifunctional VME bus module that combines analog input, output, and digital input/output functions. This module has a wide range of applications in the field of industrial automation and control systems, providing a flexible and powerful solution for a variety of complex systems.

First, XVME-542 has multiple analog input channels that can receive analog signals from sensors or other devices and convert them into digital data for the system to process. This allows it to monitor and control physical quantities in various industrial processes in real time, such as temperature, pressure, flow, etc.

Secondly, the module also has an analog output function, which can convert digital signals into analog signals to drive actuators or other devices. This enables the XVME-542 to achieve precise control of industrial equipment, ensuring the stability and efficiency of the production process.

Features:

64 single-ended or 32 differential 16-bit input channels

Eight 12-bit analog output channels

100 KHz throughput (Single channel mode)

0.003% FSR accuracy (Single channel mode)

Software programmable single input gain

Programmable interrupt timer

Synchronous output mode

The XVME-542 analog input/Output module is A powerful VMEbus compatible I/O module that performs 16-bit A/D and 12-bit D/A conversions. XVME-542 contains 64 single-ended, 32 differential, or 64 pseudo-differential analog input channels. The input channels can be programmed to operate in one of five operating modes: random channels, sequential channels, single channels, externally triggered, or automatic scanning. Automatic scanning can be performed on 8, 16, 32, or 64 channels. The individual channel gain can be software programmed in one of three jumper selection ranges. XVME-542 also contains eight analog output channels. These output channels can be configured for voltage or current output. Supports transparent and synchronous channel update modes. The XVME-542 is pin-compatible with the XVME-540 analog input/output module, while providing higher resolution, speed, and channel count.
