XVME-566 32声道模拟输入模块 具有最大100khz的转换速度和12位的分辨率

>>>>>型号:XVME-566  32声道模拟输入模块    具有最大100khz的转换速度和12位的分辨率

【功能描述】

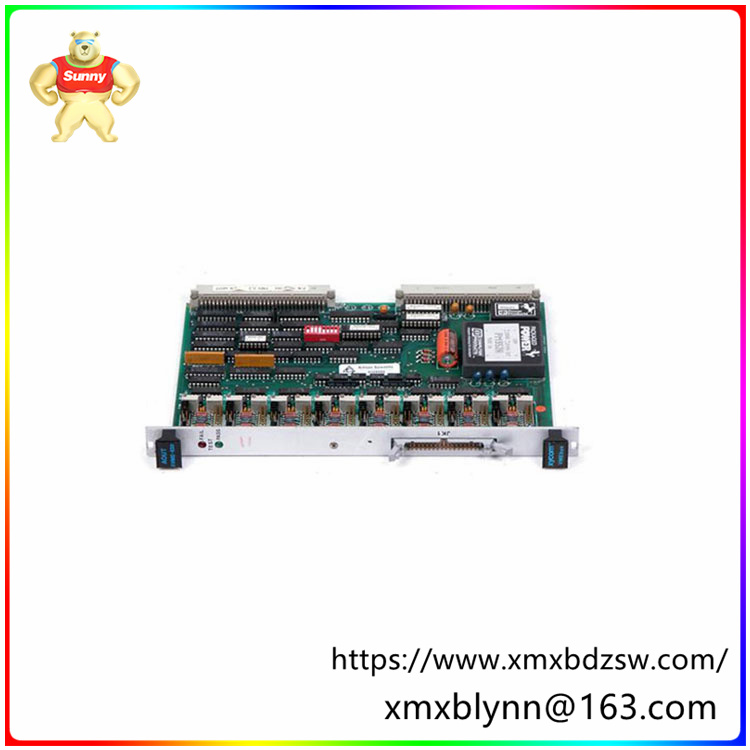

XVME-566型是由Xycom公司生产销售的VMEbus用32声道模拟输入模块。2023年12月，在Xycom公司的官方网站上已经停止销售。

概要

XVME-566型配备16位A/D转换器，可处理32个声道的模拟输入。具有最大100khz的转换速度和12位的分辨率，可以进行高精度的数据收集。另外，还准备了各种选项，能够适用于广泛的应用。

主要功能

32个声道的模拟输入

16位A/D转换器

最大100khz的转换速度

12位的分辨率

±10v的输入范围

利用软件进行增益调整

偏移调节功能

特征：

（32） 数字输入通道

输入去抖动电路

35 VDC 反向偏置保护

（32） 光隔离数字输出通道

上电时输出的硬件初始化

输出是软件可读的

XVME-244 数字 I/O 模块是一款隔离式 64 通道数字 I/O 模块，设计用于 VMEbus 系统。32 个输入通道和 提供 32 个输出通道，每组 8 个，与其他通道和 VMEbus 电路进行光学隔离。

64 个 I/O 通道排列成 8 个字节宽的 I/O 寄存器。I/O 寄存器是连续寻址的，允许以字节或字的形式访问输入和输出通道。为了增加系统的完整性，默认初始化会在系统上电和软件复位或 SYSFAIL 期间禁用所有输出。

该模块非常适合连接按钮或继电器触点。它包含输入去抖动电路，可消除此类输入的触点反弹的影响。

XVME-244 为需要对特定输入进行滤波的应用提供四个滤波输入。为每个输入组提供一个滤波输入作为只读寄存器，其中包含滤波输入的状态。这些寄存器可以作为字节或 16 位字访问。

【英文介绍】

XVME-566 is a 32-channel analog input module for VMEbus manufactured and sold by Xycom. In December 2023, it was discontinued on Xycom's official website.

outline

The XVME-566 is equipped with A 16-bit A/D converter and can handle analog inputs of 32 channels. With a maximum conversion speed of 100khz and a resolution of 12 bits, high-precision data collection is possible. In addition, a variety of options are prepared to be suitable for a wide range of applications.

Main function

Analog input for 32 channels

16-bit A/D converter

Maximum 100khz conversion speed

12 bit resolution

±10v input range

Use software to adjust the gain

Offset control function

Features:

(32) Digital input channels

Input dejitter circuit

35 VDC reverse bias protection

(32) Optical isolation digital output channel

The output hardware initialization during power-on

The output is software readable

The XVME-244 digital I/O module is an isolated 64-channel digital I/O module designed for use in VMEbus systems. 32 input channels and provide 32 output channels, 8 in each group, optically isolated from other channels and VMEbus circuits.

The 64 I/O channels are arranged into an 8-byte wide I/O register. The I/O registers are continuously addressed, allowing access to input and output channels in the form of bytes or words. To increase system integrity, default initialization disables all output during system power-on and software reset or SYSFAIL.

This module is ideal for connecting buttons or relay contacts. It includes an input dejitter circuit that eliminates the effects of contact bounces of such inputs.

XVME-244 provides four filter inputs for applications that require filtering of specific inputs. Each input group is provided with a filtered input as a read-only register that contains the state of the filtered input. These registers can be accessed as bytes or 16-bit words.
