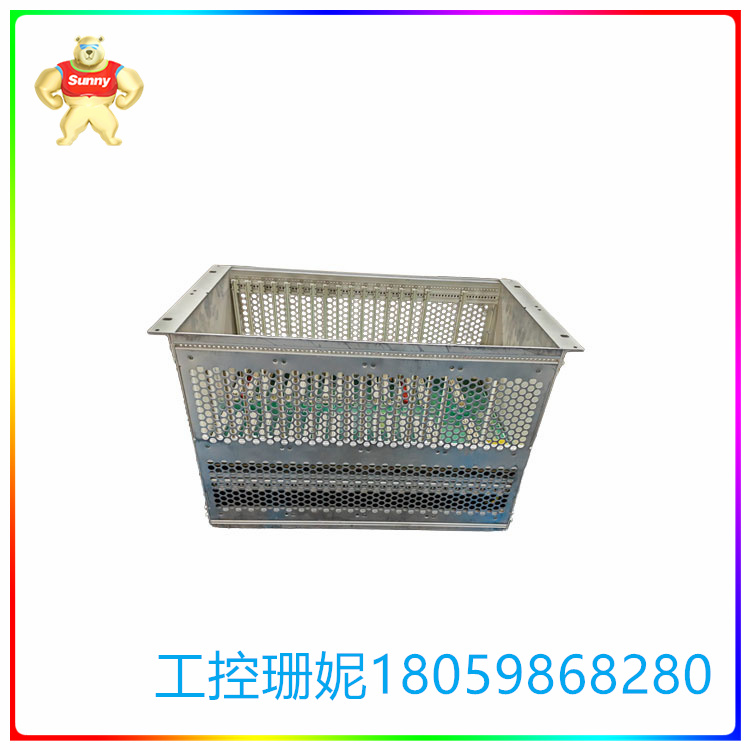

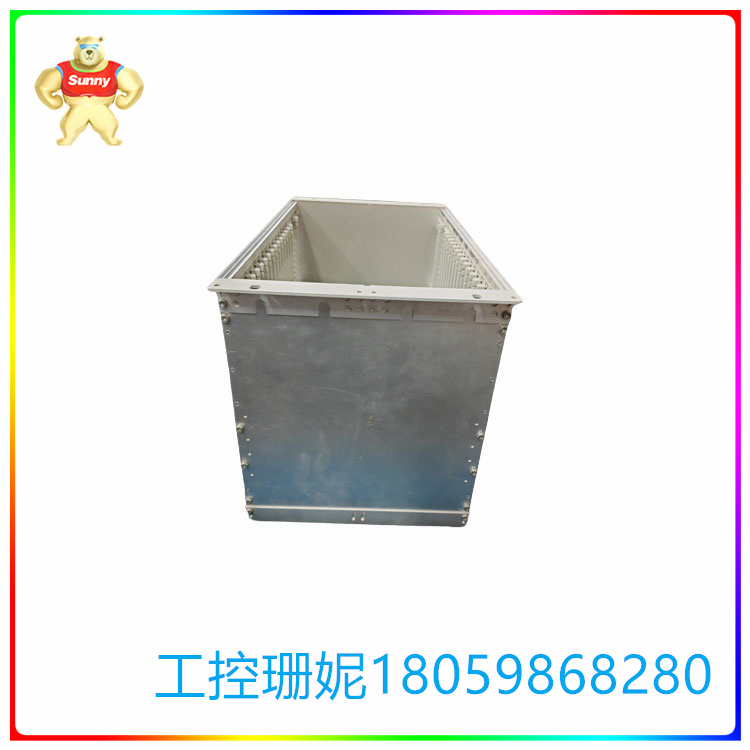

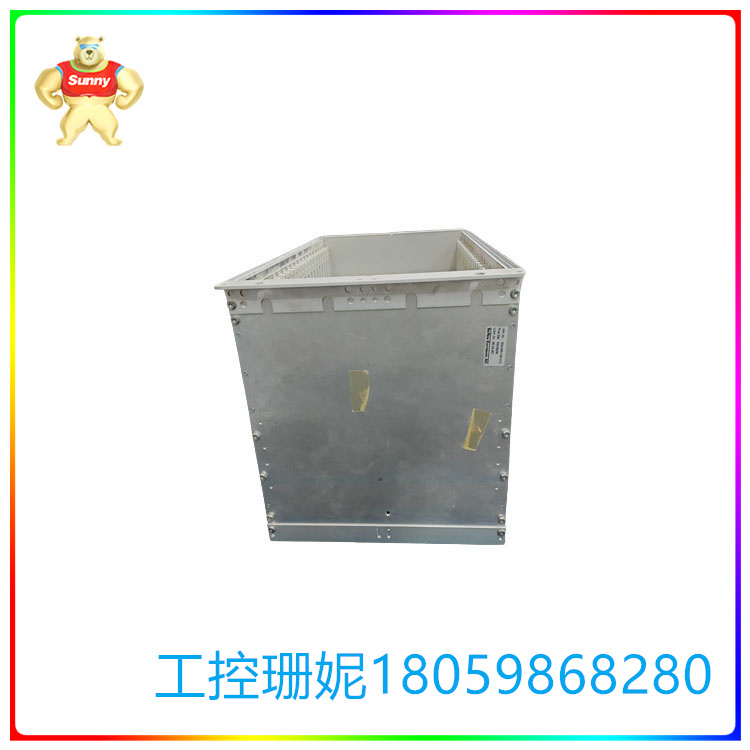

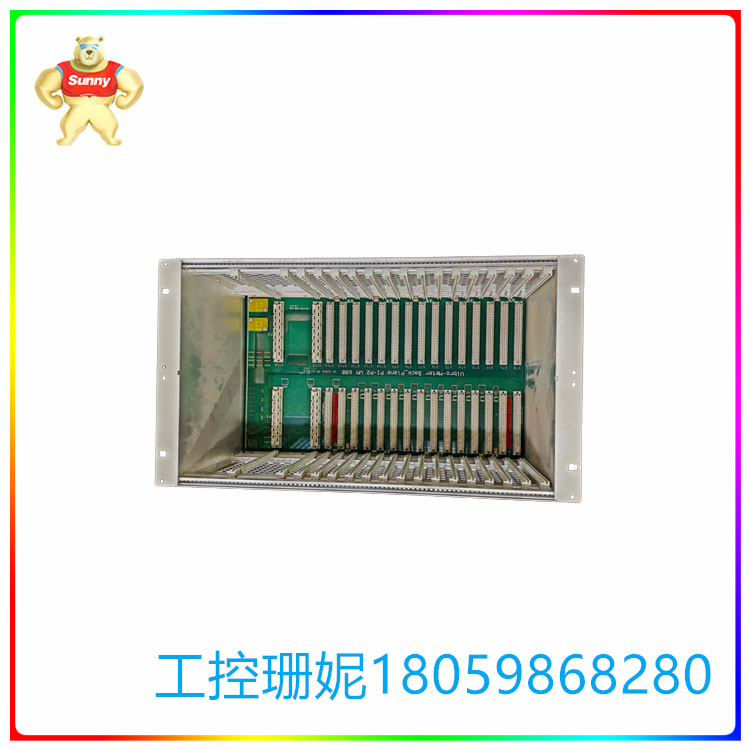

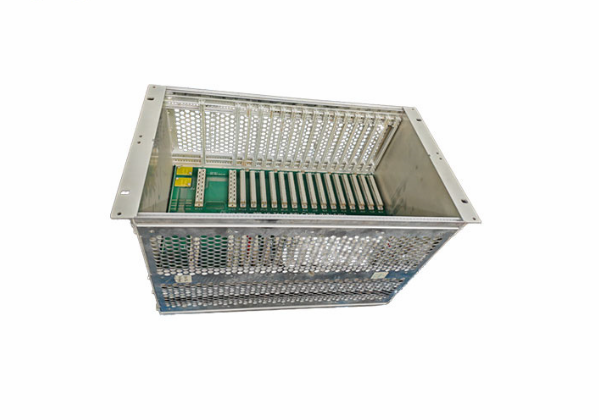

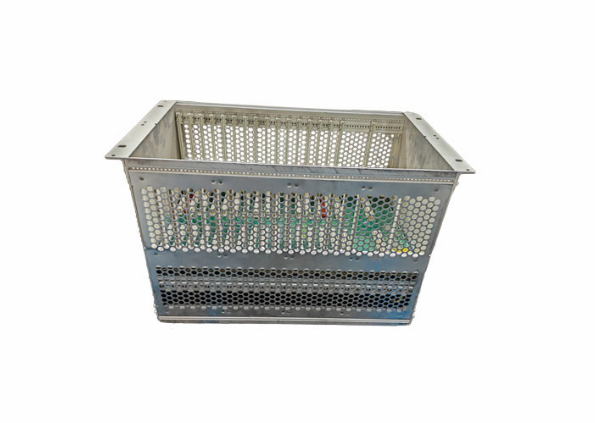

VM600-CSA 204-040-100-211 机架用于容纳硬件

【产品详情】

主要特性和优点

•来自振动计®产品线

•19个″系统机架，标准高度6U

•坚固的铝制结构

•模块化概念允许特定的卡是增加了机械保护和/或状态监测

•机柜或面板安装

•支持VME总线的背板VM600Mk2/VM600系统的Tacho, Raw和开路采集器(OC)总线和电源分布

•使用VM600Mk2/VM600 RPS6U机柜电源电源:交流和/或直流输入版本

•电源检查继电器

描述

VM600Mk2/VM600 ABE040和ABE042系统

机架用于容纳硬件

VM600Mk2/VM600系列机械保护和/或状态监测系统，从

美吉特振动计®产品线。两种型号的VM600Mk2/VM600 ABE04x系统

机架可用:ABE040和ABE042。它们很相似，只是位置不同

安装支架。两个架子都有一个标准高度6U，并提供安装

空间(机架槽位)最多可容纳15个单宽度

VM600Mk2/VM600模块(卡对)，或a单宽和多宽的组合

模块(卡片)。这些架子特别适用于工业环境，凡

设备必须永久安装在19″机柜或面板

不同版本的ABE04x系统机架启用不同的安装选项来支持

各种市场和应用。VM600系统机架集成了一个VME

背板提供电力已安装设备之间的互连关系VM600Mk2/VM600模块(卡):电源、信号处理，输入/输出，继电器和CPUx“机架控制器”。它还包括一个权力供应止回阀继电器，可在后方机架，用于表示已安装RPS6U机柜供电正常正常。

一个或两个RPS6U机架电源都可以安装在VM600Mk2/VM600 ABE04x系统上架子上。单路RPS6U电源(330w)版本)支持一个完整的电源要求机架的模块(卡)在应用中具有工作温度高达50°C(122°F)。

或者，一个机架可以有两个RPS6U电源耗材安装时，可以任意支撑机架电源冗余或为了供电模块(卡)非冗余供电

VM600-CSA 204-040-100-211 机架用于容纳硬件

【英文介绍】

Key features and benefits

• From the Vibrometer ® product line

•19 "system racks, standard height 6U

• Robust aluminum construction

• Modular concept allows specific cards to be added with mechanical protection and/or condition monitoring

• Cabinet or panel installation

• Support VME bus backplane VM600Mk2/VM600 system Tacho, Raw and open collector (OC) bus and power distribution

• Use the VM600Mk2/VM600 RPS6U cabinet Power supply: AC and/or DC input version

• Power check relay

Description

VM600Mk2/VM600 ABE040 and ABE042 systems

The rack houses the hardware

VM600Mk2/VM600 series mechanical protection and/or condition monitoring systems, from

Megit Vibrometer ® product line. Two models of VM600Mk2/VM600 ABE04x system

Available racks :ABE040 and ABE042. They're very similar, just in different locations

Install the bracket. Both shelves have a standard height of 6U and are available for installation

Space (rack slots) can accommodate up to 15 single widths

VM600Mk2/VM600 module (card pair), or a combination of single width and multi-width

Modules (cards). These shelves are particularly suitable for industrial environments, Van

The device must be permanently installed in a 19 "cabinet or panel

Different versions of ABE04x system racks enable different installation options to support this

Various markets and applications. The VM600 system rack integrates a VME

The backplane provides power for interconnection between installed devices VM600Mk2/VM600 modules (cards): power, signal processing, input/output, relays, and CPUx "rack controllers". It also includes a power supply check valve relay, available in the rear rack, to indicate that the installed RPS6U cabinet is powered properly.

One or both RPS6U rack power supplies can be installed on the VM600Mk2/VM600 ABE04x system upper shelf. The single-channel RPS6U power supply (330w version) supports a complete power supply requiring rack modules (cards) in applications with operating temperatures up to 50°C(122°F).

Alternatively, a rack can have two RPS6U power supplies when installed, which can support either the rack power supply redundantly or the power supply module (card) non-redundantly

VM600-CSA 204-040-100-211 机架用于容纳硬件
