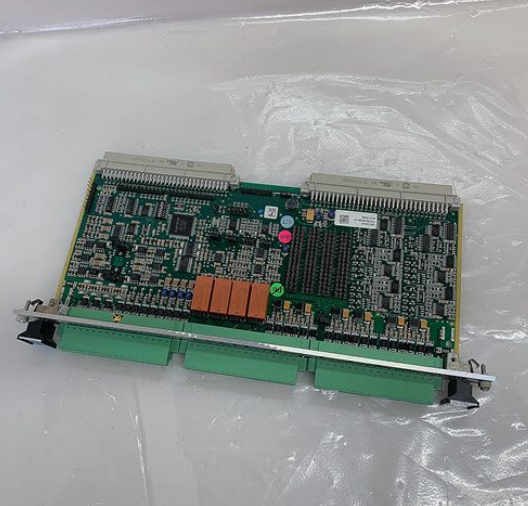

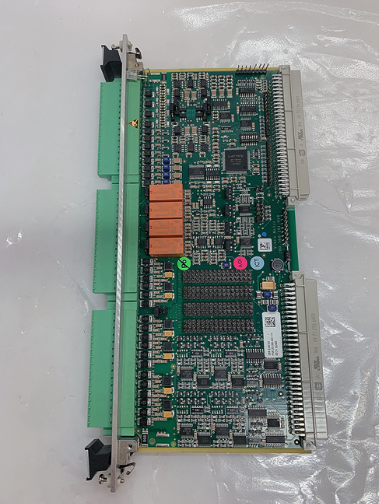

IOC4T卡

IOC4T输入/输出卡作为信号

接口用于VM600系列MPC4机械

保护卡，来自Meggitt的振动计®

产品线。安装在VM600的后部

与机架背板直接连接

通过两个连接器。

每个IOC4T卡都与一个

安装相应的MPC4卡

直接在它后面的VM600机架(ABE04x或

ABE056)。IOC4T工作在从属模式和

与MPC4通信，通过

连接器P2，使用工业包(IP)

接口。

200-560-000-018 200-560-101-015  VM600 IOC4T 通过两个连接器

【英文介绍】

The IOC4T card

The IOC4T input/output card acts as a signal

Interface for VM600 series MPC4 machines

Protective card, Vibrometer ® from Meggitt

Product line. It is installed at the rear of the VM600

Directly connect to the backplane of the rack

Through two connectors.

Each IOC4T card is associated with one

Install the appropriate MPC4 card

Directly behind it is the VM600 rack (ABE04x or

ABE056). IOC4T works in slave mode and

Communication with MPC4, through

Connector P2, Industrial package (IP)

Interface.

IOC4T front panel (VM600 back panel)

Rack) contains terminal strip connectors for wiring

Source of transmission cable

Measurement chain (sensor and/or signal

Hair conditioner). Screw terminal connectors are available

Also used for input and output of all signals

Send signals to any external control system.

The IOC4T card protects all inputs and outputs

Anti-electromagnetic interference (EMI) and

Signal surges, they also encounter electromagnetism

compatibility (EMC) standards.

IOC4T connects raw dynamics (vibration)

And speed signals from the sensor to the MPC4.

Once these signals are processed, they are transmitted back

Go to IOC4T and be available on the terminal

Bars on the front panel (behind the VM600). for

Dynamic signal, four on-board digital-to-analog conversions

The converter (dac) provides the calibration signal

The output ranges from 0 to 10v. Plus, four on

Board voltage-current converters allowed

A signal provided as a current output

Range 4 to 20 mA(jumper optional).

The IOC4T contains four local relays, yes

Attributed to any specific alarm signal

Software control. For example, you can use these

Signal that MPC4 is faulty or out of order

Common alarms (Sensor OK, Alarm, and Danger)

In a typical application.

In addition, 32 digital signals indicate alarm

It was passed to the back of the rack. It could be

Optional RLC16 relay card and/or IRC4 use

The smart relay card is mounted on the rack

(Jumper selection).

Application information

When used as a card pair with MPC4

Mechanical protection card, IOC4T high

Suitable for mechanical monitoring and protection

In a wide range of industrial applications.

More information about MPC4/IOC4T usage

The card pair usually refers to

VM600 Mechanical Protection System (MPS)

Hardware manual and VM600 MPSx software

Handbook. Information on usage

MPC4/IOC4T card pair in functional safety

For details, see Reference VM600

Functional Safety manual.

For specific applications, contact your local government

Representative Meggitt.
