MVI46-ADMNET 可编程应用开发通信模块 具有支持以太网/IP 的功能

【产品详情】

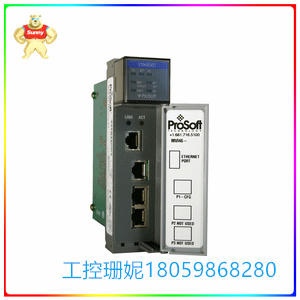

Prosoft MVI46-ADMNET C 可编程模块是一款 C 可编程应用开发通信模块，具有支持以太网/IP 的功能，允许 SLC 自动化处理器与支持以太网的设备连接。它支持客户端和服务器协议，允许将其用作各种工业应用的数据收集子主站，并且还允许使用用户编写的“C”代码和API轻松将各种以太网支持的设备集成到SLC平台。MVI46-ADMNET 安装在单个 1746 I/O 机箱插槽上，在 5 伏直流电下的最大电流消耗为 800 毫安。它的多供应商接口（MVI）模块API支持Digital Mats和Borland C++编译器，并且需要640 KB RAM程序空间进行编程。

它带有一个标准的 API 套件，为开发人员提供对顶层 SLC 背板和串行端口的访问，它还具有以太网端口 API，提供对以太网的访问。MVI46-ADMNET 具有 3 个串行端口（其中 2 个隔离）和 1 个以太网端口，用于连接支持以太网的现场设备，它还具有 1 个 RS-232 配置端口和 2 个串行应用端口（PRT1 和 PRT2），用于多点或直接配置。它有一个 C 编写的 API 库，其中包含用于初始化、调试端口、读写数据库、背板传输、解析配置文件和设置特定 LED 指示灯状态的各种函数调用。MVI46-ADMNET 的功能温度限制为 0 至 60 摄氏度，在 5 至 95 摄氏度的非冷凝和非腐蚀性相对湿度条件下，并在 –40 至 85 摄氏度的温度范围内储存和运输。

MVI46-ADMNET 可编程应用开发通信模块 具有支持以太网/IP 的功能

【英文介绍】

The Prosoft MVI46-ADMNET C Programmable module is a C programmable application development communication module with Ethernet /IP support, allowing SLC to automate processors to connect to Ethernet-enabled devices. It supports client and server protocols, allowing it to be used as a data collection sub-master for various industrial applications, and also allows for easy integration of various Ethernet-enabled devices into the SLC platform using user-written "C" code and apis. The MVI46-ADMNET is mounted on a single 1746 I/O chassis slot and has a maximum current consumption of 800 mA at 5 volts DC. Its Multi-vendor Interface (MVI) module API supports Digital Mats and Borland C++ compilers, and requires 640 KB of RAM program space to program.

It comes with a standard API suite that provides developers with access to the top-level SLC backplane and serial ports, and it also has an Ethernet port API that provides access to Ethernet. The MVI46-ADMNET has three serial ports (two of which are isolated) and one Ethernet port for connecting to Ethernet-enabled field devices, and it also has an RS-232 configuration port and two serial application ports (PRT1 and PRT2) for multipoint or direct configurations. It has an API library written in C that contains various function calls for initialization, debugging ports, reading and writing databases, backplane transfers, parsing configuration files, and setting specific LED indicator states. The MVI46-ADMNET has a functional temperature limit of 0 to 60 degrees Celsius, under non-condensing and non-corrosive relative humidity conditions of 5 to 95 degrees Celsius, and is stored and transported in a temperature range of -40 to 85 degrees Celsius.

MVI46-ADMNET 可编程应用开发通信模块 具有支持以太网/IP 的功能
