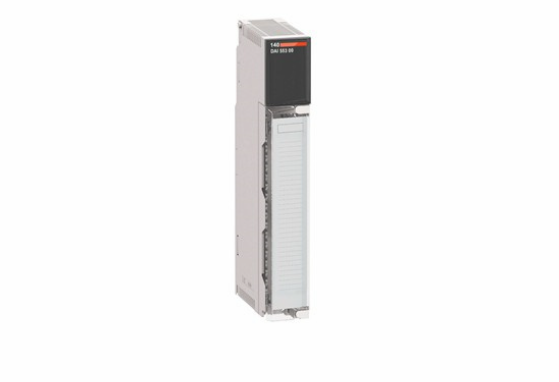

140DDI35300C 离散输出模块 32 O 固态

【产品详情】

特征

施耐德电气 140 DDO 35300 用于切换 24 VDC 电源负载。140 DDO 35300 DC 输出 24 VDC 4 x 8 电源模块与什么一起使用？它用于共享输出公共线，接线至 0 V。该模块化单元有 32 个输出，即八 （8） 组，每组四 （4） 个输出点。该模块的逻辑电平为真高，外部功率范围为 19.2 ...30 伏直流电。140 DDO 35300 的功率分配为 1.75 W + 0.4 V x 总模块负载电流。Modicon 140 DDO 35300 所需的总线电流为 330 mA。它采用输出熔断保险丝故障检测和现场功率损失。

施耐德电气 140 DDO 35300 的最大工作电压为 19.2 ...30 VDC，而最大绝对电压为 56 VDC，衰减脉冲为 1 ms。导通状态电压降为 0.4 VDC @ 0.5 A。

Modicon 140 DDO 35300 的 4 个点中每个点的最大负载电流为 0.5 A，8 组中每个点的最大负载电流为 4 A。该模块的最大负载电流为 16 A。140 DDO 35300 输出模块每个点的最大浪涌电流为 5 mA @ 500 ms 持续时间（每分钟不超过 6 个）。它的关闭状态泄漏点为 0.4 mA @ 30 VDC。

优势

施耐德电气 140 DDO 35300 在 500 VAC RMS 下进行组间隔离 1 分钟，在组间到 1780 VAC RMS 总线隔离 1 分钟。该Modicon Quantum单元具有内部瞬态电压抑制输出保护。

Modicon Quantum 140 DDO 35300 具有 LED 指示灯，用于指示输出模块上的重要功能。其中一些 LED 描述包括当存在总线通信时的绿色 ACTIVE。如果检测到模块外部的错误，则会出现红色 F 错误 LED。对于 32 个输出中的每一个，当通道或点打开时，将建立一个绿色 LED 指示灯。

140DDI35300C 离散输出模块 32 O 固态

【英文介绍】

trait

The Schneider Electric 140 DDO 35300 is used to switch 24 VDC power loads. 140 DDO 35300 DC Output 24 VDC 4 x 8 Power module is used with what? It is used for shared output common lines, wired to 0 V. The modular unit has 32 outputs, i.e., eight (8) sets of four (4) output points each. The module has a really high logic level and an external power range of 19.2... 30 volts direct current. The power distribution of the 140 DDO 35300 is 1.75 W + 0.4 V x total module load current. The required bus current for the Modicon 140 DDO 35300 is 330 mA. It uses output for fusible fuse failure detection and field power loss.

The Schneider Electric 140 DDO 35300 has a maximum operating voltage of 19.2... 30 VDC, while the maximum absolute voltage is 56 VDC and the attenuation pulse is 1 ms. The on-state voltage drops to 0.4VD@0.5A.

The Modicon 140 DDO 35300 has A maximum load current of 0.5 A at each of the four points and 4 A at each of the eight sets. The maximum load current of the module is 16 A. The maximum surge current per point of the 140 DDO 35300 output module is 5 mA @ 500 ms duration (not more than 6 per minute). Its closed state leakage point is 0.4 mA @ 30 VDC.

advantage

The Schneider Electric 140 DDO 35300 performs intergroup isolation at 500 VAC RMS for 1 minute and intergroup isolation to 1780 VAC RMS bus for 1 minute. The Modicon Quantum unit has an internal transient voltage suppression output protection.

The Modicon Quantum 140 DDO 35300 features LED indicators to indicate important functions on the output module. Some of these LED descriptions include green ACTIVE when bus communication is present. If an error outside the module is detected, a red F error LED appears. For each of the 32 outputs, a green LED indicator will be established when the channel or point is opened.
