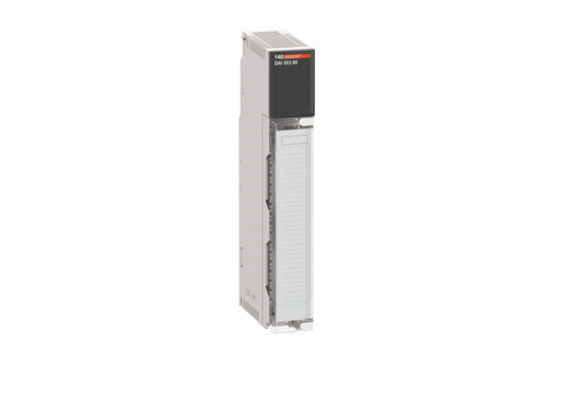

140DAI54000C 分立式输入模块 16 通道

【产品详情】

特征：

8 个差分模拟输入通道

电流模式下的断线检测

电压模式下的欠压检测

Schneider Electric / Gould / AEG Quantum 140ACI03000 模拟输入模块提供 （8） 差分模拟输入通道。每个通道都是独立的 可配置为 1 ...5 VDC 或 4 ...20 mA 信号。

该模块在当前模式下和 卷tage 处于卷tage 模式。昆腾可拆卸端子排便于维护。

量子背板（单独订购）有 2、3、4、6、10 和 16 种 插槽版本。任何 Quantum 模块都可以在任何插槽中使用。一个 每个机架都需要量子电源。电源 为总线上的所有模块提供逻辑电源。

所有昆腾 I/O 模块都与总线进行光学隔离，确保 安全无故障运行。这种隔离还允许模块 热插拔

Modicon Quantum 140 DAI 540 00 提供一组 16 个通道和 1 个输入字寻址。Quantum 140 DAI 540 00 模块的输入电流为 11.1 mA 57 至 63 Hz 和 13.2 mA 47 至 53 Hz。本机的离散输入电压为 115 V AC。140 DAI 540 00 的保证状态电压为 79...132 V AC 57...63 Hz 和 85...132 V AC 47...53 Hz。Quantum 140 DAI 540 00 的零保证电压状态为 0...20 V AC、57 至 63 Hz 和 0...20 V AC、47 至 53 Hz。该模块的输入阻抗为 12000 欧姆电容，57 至 63 Hz，14400 欧姆电容，47 至 53 Hz。网络频率限制在 47...63赫兹。最大漏电流为 2.1 mA。Modicon Quantum 140 DAI 540 00 的绝对最大输入为 132 V 连续、156 V 10 s、200 V 1 周期，响应时间为 4.9 至 0.75 ms x 线路周期 Off-On 和 7.3 至 12.3 ms On-Off。通道之间的隔离度为 1780 Vrms，持续 1 分钟，通道和总线之间的隔离度为 1780 Vrms，持续 1 分钟。Modicon Quantum 分立式输入模块 140 DAI 540 00 的总线电流要求为 180 mA。最大功耗为 5.5 W。

Modicon Quantum 分立式输入模块 140 DAI 540 00 带有 CE 标志，净重为 0.68 磅。

Modicon Quantum 140 DAI 540 00 的本地信令

140 DAI 540 00 Modicon Quantum 分立式输入模块配备 LED 指示灯 1 到 16。当设备开启且存在总线通信时，ACTIVE LED 呈绿色。当指示点或通道打开时，LED 指示灯 1 到 16 表示绿色。

介绍

Modicon Quantum 140 DAI 540 00 在模块正面的顶部显示颜色编码的模块编号和描述。LED 信号位于前面板上的模块编号下方。铰链门内部是保险丝切口区域，用于容纳现场接线端子排。现场接线端子排是一个单独的项目，必须单独订购。铰链门内部有间隔，覆盖现场接线条和保险丝切口，用于折叠并放置在其中的客户识别标签。此标签用于存储特定于客户的信息。

140DAI54000C 分立式输入模块 16 通道

【英文介绍】

Features:

8 differential analog input channels

Line break detection in current mode

Undervoltage detection in voltage mode

The Schneider Electric/Gould/AEG Quantum 140ACI03000 analog input module provides (8) differential analog input channels. Each channel is independent and can be configured as 1... 5 VDC or 4... 20 mA signal.

This module is in current mode and Volume tage is in Volume tage mode. Quinten detachable terminal block for easy maintenance.

The quantum backplane (ordered separately) is available in 2, 3, 4, 6, 10 and 16 slot versions. Any Quantum module can be used in any slot. A quantum power supply is required for every rack. Power Supply Provides logical power for all modules on the bus.

All Quinten I/O modules are optically isolated from the bus, ensuring safe and trouble-free operation. This isolation also allows modules to be hot-swappable

The Modicon Quantum 140 DAI 540 00 provides a set of 16 channels and 1 input word addressing. The Quantum 140 DAI 540 00 module has input currents of 11.1 mA 57 to 63 Hz and 13.2 mA 47 to 53 Hz. The discrete input voltage of the unit is 115 V AC. The guaranteed state voltage of the 140 DAI 540 00 is 79... 132 V AC 57... 63 Hz and 85... 132 V AC 47... 53 Hz. Quantum 140 DAI 540 00 has a zero guaranteed voltage state of 0... 20 V AC, 57 to 63 Hz and 0... 20 V AC, 47 to 53 Hz. The input impedance of the module is 12000 ohm capacitance, 57 to 63 Hz, and 14400 ohm capacitance, 47 to 53 Hz. The network frequency is limited to 47... 63 Hertz. The maximum leakage current is 2.1 mA. The Modicon Quantum 140 DAI 540 00 has an absolute maximum input of 132 V continuous, 156 V 10 s, 200 V 1 cycle, Response times are 4.9 to 0.75 ms x line cycle Off-On and 7.3 to 12.3 ms On-Off. The isolation between channels is 1780 Vrms for 1 minute, and the isolation between channels and buses is 1780 Vrms for 1 minute. The bus current requirement for the Modicon Quantum discrete input module 140 DAI 540 00 is 180 mA. The maximum power consumption is 5.5 W.

The Modicon Quantum discrete input module 140 DAI 540 00 carries the CE mark and has a net weight of 0.68 LBS.

Modicon Quantum 140 DAI 540 00 local signaling

140 DAI 540 00 Modicon Quantum Discrete input module with LED indicators 1 to 16. When the device is turned on and bus communication is present, the ACTIVE LED is green. When the indicator point or channel is open, LED lights 1 to 16 indicate green.

introduce

Modicon Quantum 140 DAI 540 00 Displays the color-coded module number and description at the top of the front of the module. The LED signal is located below the module number on the front panel. Inside the hinged door is the fuse cut area to accommodate the field terminal block. The field terminal block is a separate item and must be ordered separately. The interior of the hinged door has spacers covering field wiring strips and fuse cutouts for folding and placing customer identification tags in it. This tag is used to store customer-specific information.
