XBTGK5330 带小键盘的高级触摸平板显示器

【产品详情】

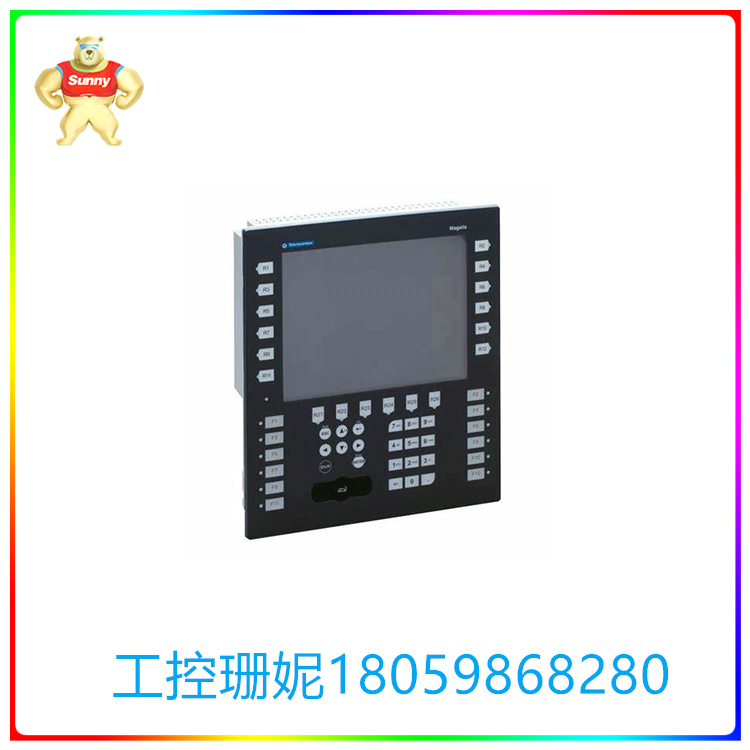

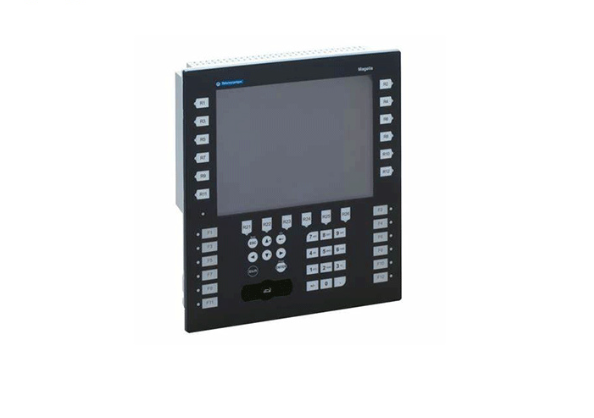

触摸屏面板XBTGK5330

该XBTGK5330是一款带键盘的高级触摸屏面板，旨在为工业自动化系统提供高效、直观的人机交互。该面板由施耐德电气的 Magelis 品牌制造，结合了一系列特性和功能，可增强工业环境中的控制、监控和可视化任务。

显示和用户界面

该XBTGK5330具有生动的高分辨率显示屏，背光彩色 TFT LCD 面板能够显示 65536 种颜色。该屏幕的显示分辨率为 640 x 480 像素，被认为是 VGA 质量，确保清晰细致的视觉效果。10.4英寸的宽大显示屏尺寸为操作员提供了充足的交互空间，便于操作舒适和高效的数据可视化。

软件和配置

为了利用XBTGK5330的功能，施耐德电气提供了Vijeo Designer配置软件。该软件使用户能够根据自己的特定需求设计和自定义图形用户界面。它允许创建直观且用户友好的屏幕，确保操作员可以轻松浏览各种功能并监控关键过程。

处理能力和内存

XBTGK5330的核心是一个强大的RISC CPU，工作频率为266 MHz。这种处理能力确保了流畅和响应迅速的性能，从而能够快速执行命令和实时更新。该面板配备了数据存储和系统运行所必需的存储器资源，包括 512 kB SRAM（带有用于数据保留的备用锂电池）和用于应用存储器的 32 MB 闪存 EPROM。

连接和通信

该XBTGK5330提供各种连接选项，以促进工业网络内的通信。它具有集成连接端口，包括用于电源和数字输入的可拆卸螺丝接线端子、用于支持 RS485 和 Siemens MPI 协议的 COM2 串行链路的 RJ45 端口、用于支持 RS232C/RS422/RS485 协议的 COM1 串行链路的公头 SUB-D 9 端口、音频输出、数字输出和用于 Modicon M340 端子端口通信的 USB A 型主端口。此外，通过 RJ45 的以太网 TCP/IP 端口提供网络连接，以实现无缝数据交换。

耐久性和环境考虑

该XBTGK5330可承受苛刻的工业环境，可针对各种因素提供强大的保护。前面板具有符合 IEC 60529 标准的 IP65 防护等级，可防止灰尘和水进入。后面板具有 IP20 防护等级。面板的外壳由耐用材料制成，包括铝合金正面材料和 PPT 外壳材料，确保持久的性能。

环境耐受性

该XBTGK5330设计用于在指定的环境条件下有效运行。它可以在运行期间承受 0 至 50 °C 的环境空气温度范围，在储存期间可承受 -20 至 60 °C 的环境空气温度范围。其抗冲击和抗振动性分别符合 IEC 60068-2-27 和 IEC 60068-2-6 标准，即使在苛刻的条件下也能确保稳定性。该面板对电磁场的抗扰度和对快速瞬变的抵抗力进一步提高了其可靠性。

结论

施耐德电气XBTGK5330是一款功能丰富且坚固耐用的高级触摸屏面板，带有键盘，为工业自动化应用提供强大且用户友好的界面。其高分辨率显示屏、连接选项、处理能力和耐用性使其成为增强现代工业流程中控制、监控和可视化任务的重要组成部分。凭借其全面的功能和周到的设计，该XBTGK5330是优化工业环境中生产力和效率的宝贵工具。

XBTGK5330 带小键盘的高级触摸平板显示器

【英文介绍】

Touchscreen panel XBTGK5330

The XBTGK5330 is an advanced touchscreen panel with a keyboard designed to provide efficient and intuitive human-computer interaction for industrial automation systems. Manufactured under Schneider Electric's Magelis brand, the panel combines a range of features and functions to enhance control, monitoring and visualization tasks in industrial environments.

Display and user interface

The XBTGK5330 features a vivid high-resolution display with a backlit color TFT LCD panel capable of displaying 65,536 colors. The screen has a display resolution of 640 x 480 pixels and is considered VGA quality, ensuring clear and detailed visuals. The wide 10.4-inch display size gives the operator plenty of interaction space for comfortable operation and efficient data visualization.

Software and configuration

To take advantage of the capabilities of the XBTGK5330, Schneider Electric offers the Vijeo Designer configuration software. The software enables users to design and customize the graphical user interface according to their specific needs. It allows for the creation of an intuitive and user-friendly screen, ensuring that operators can easily navigate various functions and monitor critical processes.

Processing power and memory

At the heart of the XBTGK5330 is a powerful RISC CPU operating at 266 MHz. This processing power ensures smooth and responsive performance, enabling quick command execution and real-time updates. The panel is equipped with the memory resources necessary for data storage and system operation, including 512 kB SRAM (with a spare lithium battery for data retention) and 32 MB flash EPROM for application memory.

Connectivity and communication

The XBTGK5330 offers various connection options to facilitate communication within industrial networks. It has integrated connection ports, Includes detachable screw terminals for power and digital inputs, RJ45 ports for COM2 serial links supporting RS485 and Siemens MPI protocols, and male SUB-D 9 for COM1 serial links supporting RS232C/RS422/RS485 protocols Ports, audio output, digital output and USB Type A master port for Modicon M340 terminal port communication. In addition, network connectivity is provided via the Ethernet TCP/IP port of the RJ45 for seamless data exchange.

Durability and environmental considerations

The XBTGK5330 withstands harsh industrial environments and offers strong protection against a variety of factors. The front panel has IP65 protection rating according to IEC 60529 to prevent dust and water from entering. The rear panel has IP20 protection rating. The housing of the panel is made of durable materials, including aluminum alloy front material and PPT housing material, ensuring long-lasting performance.

Environmental tolerance

The XBTGK5330 is designed to operate efficiently under specified environmental conditions. It can withstand an ambient air temperature range of 0 to 50 °C during operation and an ambient air temperature range of -20 to 60 °C during storage. Its shock resistance and vibration resistance meet IEC 60068-2-27 and IEC 60068-2-6 standards respectively, ensuring stability even under harsh conditions. The panel's immunity to electromagnetic fields and resistance to fast transients further enhance its reliability.

conclusion

The Schneider Electric XBTGK5330 is a featual-rich and rugged premium touchscreen panel with a keyboard that provides a powerful and user-friendly interface for industrial automation applications. Its high-resolution display, connectivity options, processing power and durability make it an essential part of enhancing control, monitoring and visualization tasks in modern industrial processes. With its comprehensive features and thoughtful design, the XBTGK5330 is a valuable tool for optimizing productivity and efficiency in industrial environments.
