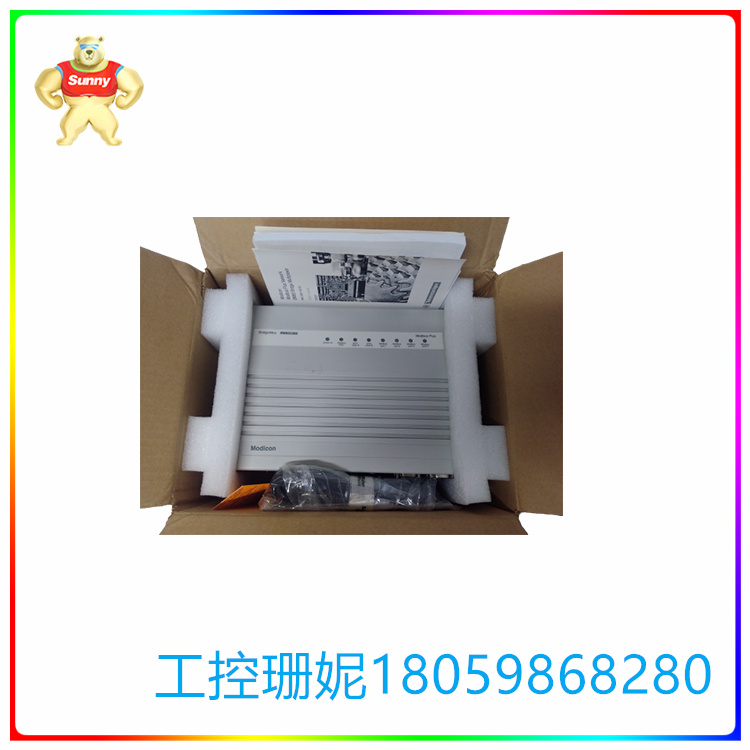

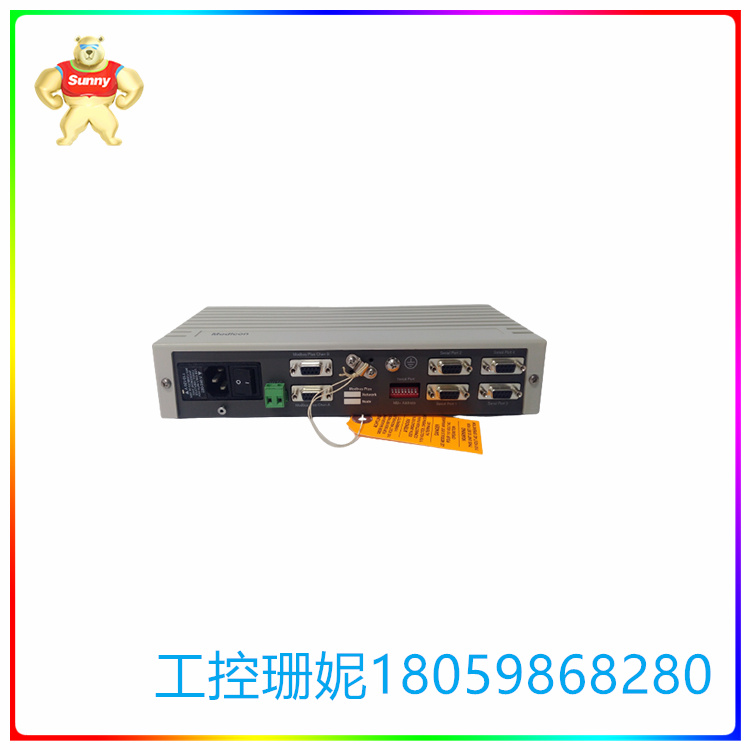

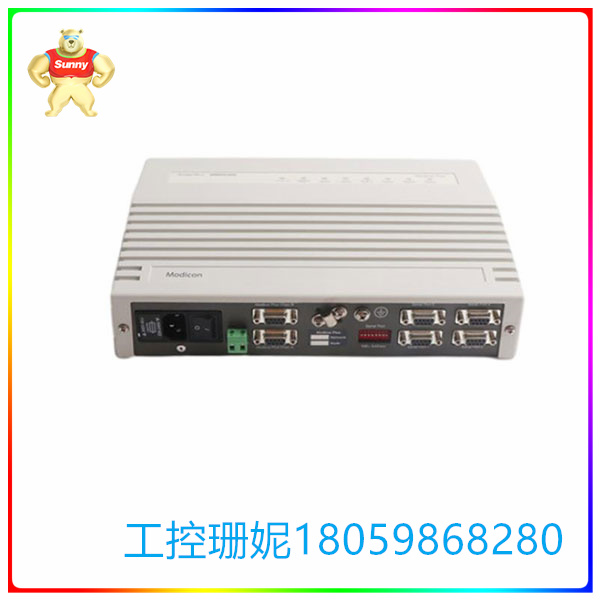

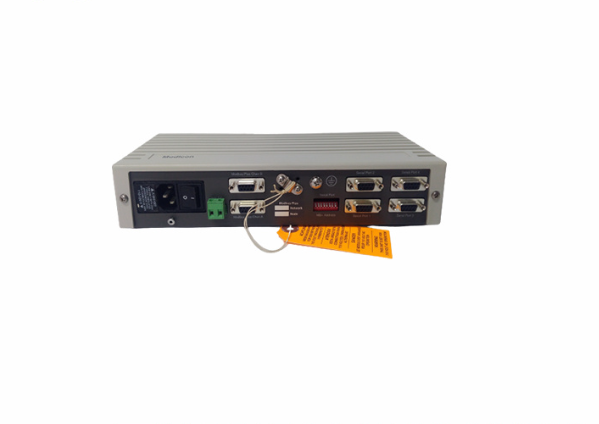

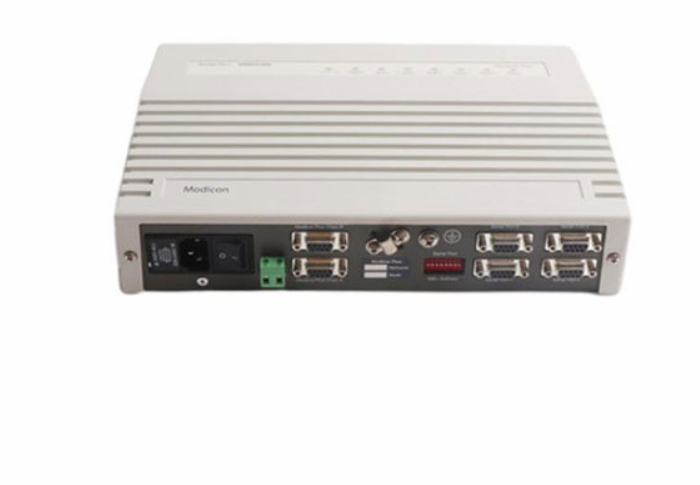

NW-BM85C002 BM85桥式多路复用器模块

【产品详情】

Modicon Plus网络模块NW–bm85c 002是施耐德电气制造的BM85桥式多路复用器模块。NW–bm85c 002通过面板或搁板安装，利用单双Modbus Plus网络电缆通过Modbus Plus桥接串行端口、节点设备和/或其它MB 85模块上串行端口设备之间的通信。施耐德电气NW–bm85c 002包括一个Modbus串行端口，并利用ASCII或RTU串行协议。Modicon NW–bm85c 002的额定工作功率为115/230 Vac或24 Vdc。

特征

BM85桥式多路复用器模块NW–bm85c 002具有垂直或水平安装的特点。当选择垂直安装时，该装置采用带有安装支架的面板安装。使用安装支架在平台或架子上进行水平安装。此Modicon Plus网络模块高2.59英寸，宽11.50英寸(包括安装支架在内，宽14.08英寸)。它深8.30英寸，重5.5磅。

Modicon NW–bm85c 002的电源要求是什么？交流电源要求为115/230 Vac +15%。47 …63赫兹10瓦，该装置的DC要求为24伏直流电+15%，10瓦。交流电通过带有开关的后面板电源连接器接入。内部保险丝为1.0 A，3 AG SB。DC接口在后面板上的电源连接器上。

适用于Modicon NW–bm85c 002的操作环境为0…60摄氏度。适用于Modicon NW–bm85c 002的储存环境为–40摄氏度…+80摄氏度。

NW-BM85C002 BM85桥式多路复用器模块

【英文介绍】

The Modicon Plus network module NW - bm85c 002 is a BM85 bridge multiplex module manufactured by Schneider Electric. The NW-BM85C 002 is mounted on a panel or shelf and Bridges communication between serial ports, node devices, and/or serial port devices on other MB-85 modules over Modbus Plus with a single or dual Modbus Plus network cable. The Schneider Electric NW-BM85C 002 includes a Modbus serial port and utilizes either ASCII or RTU serial protocols. The Modicon NW - bm85c 002 is rated to operate at 115/230 Vac or 24 Vdc.

trait

The BM85 Bridge multiplexer module NW-BM85C 002 is available for vertical or horizontal mounting. When vertical mounting is selected, the unit is mounted on a panel with mounting brackets. Use mounting brackets to mount horizontally on a platform or shelf. The Modicon Plus networking module is 2.59 inches tall and 11.50 inches wide (14.08 inches wide including mounting brackets). It is 8.30 inches deep and weighs 5.5 pounds.

What are the power requirements for the Modicon NW - bm85c 002? Ac power requirements are 115/230 Vac +15%. Forty-seven... 63 Hertz 10 watts, the device's DC requirement is 24 volts DC +15%, 10 watts. The AC is connected through a power connector on the rear panel with a switch. Internal fuse is 1.0A, 3 AG SB. DC port on the power connector on the rear panel.

Operating environment for Modicon NW-BM85C 002 is 0... 60 degrees Celsius. Storage environment for Modicon NW - bm85c 002 at -40 ° C... +80 degrees Celsius.
