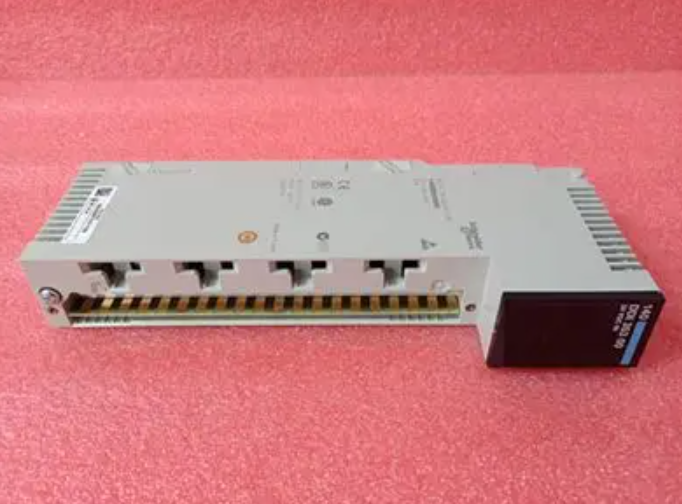

140DDO88500 分立输出模块 125 VDC
【产品详情】
部件号 140DDO88500
制造者 施耐德电气
类型 I/O 模块
型# 140-DDO-885-00
保证 2 年
模块格式 标准
产品或组件类型 直流离散输出模块
离散输出数 12
频道组 2组,每组6人
离散输出逻辑 负逻辑(接收器)
寻址要求 1 个输出字
1 个输入字
分立输出电压 24...125 V 直流
输出电压限制 19.2 至 156.2 V
最大负载电流 <= 0.75 A < 104 °F (40 °C) 时
<= 每组 3 至 32 °F (140 至 0 °C) 时为 60 A
<= 6 A ,每个模块 32...140 °F (0...60°C)
浪涌电流 <= 4 A,持续 1 ms
响应时间 状态 1 到状态 0 时为 1 ms
状态 1 到状态 1 时为 0 ms
短路保护 跟
输出过压保护 按每组压敏电阻
负载电感 无限制(由二极管保护)
钨负载 41 W 115 V
46 W 130 V
8 W 24 V
开关频率 <= 50 Hz
故障指示 过电流
通道和总线之间的隔离 2500 Vrms 直流,持续 1 分钟
组间隔离 1200 Vrms 直流,持续 1 分钟
保护类型 通过 4 A 保险丝提供内部输出保护
功耗 1 W +(0.77 x 所有点开启)
标记 行政长官
本地信令 存在 1 个 LED 绿色总线通信(活动)
检测到 1 个红色外部故障 (F)
16 个 LED 绿色输入状态
总线电流要求 状态 375 时为 6 mA 1 路输出
状态 650 时为 12 mA 1 路输出
140DDO88500 分立输出模块 125 VDC
【英文介绍】
Part number 140DDO88500
Manufacturer Schneider Electric
Type I/O module
Type # 140-DDO-885-00
Guaranteed for 2 years
Module format standard
Product or Component type DC discrete output module
Discrete output number 12
Channel group 2 groups, each group 6 people
Discrete output logic Negative logic (receiver)
Addressing requires 1 output word
1 input word
Discrete output voltage 24... 125 V DC
Output voltage limit 19.2 to 156.2V
Maximum load current <= 0.75A < 104 °F (40 °C)
<= 60 A at 3 to 32 °F (140 to 0 °C) per set
<= 6 A, 32 per module... 140 °F (0... 60°C)
Surge current <= 4 A, lasting 1 ms
The response time is 1 ms from state 1 to state 0
From state 1 to state 1, it is 0 ms
Short circuit protection heel
Output overvoltage protection per group of varistors
Load inductance unlimited (protected by diode)
Tungsten load 41 W 115 V
46 W 130 V
8 W 24 V
Switching frequency <= 50 Hz
Fault indicates overcurrent
Isolation between channel and bus 2500 Vrms DC for 1 minute
Isolation between groups 1200 Vrms DC for 1 minute
Protection Type Internal output protection is provided through 4 A fuses
Power consumption 1 W + (0.77 x all points on)
Mark the chief executive
Local signaling has 1 LED green bus communication (active)
1 red external fault detected (F)
16 LED green input status
The bus current must be 6 mA 1 output when the bus current status is 375
When the status is 650, the output is 12 mA 1
