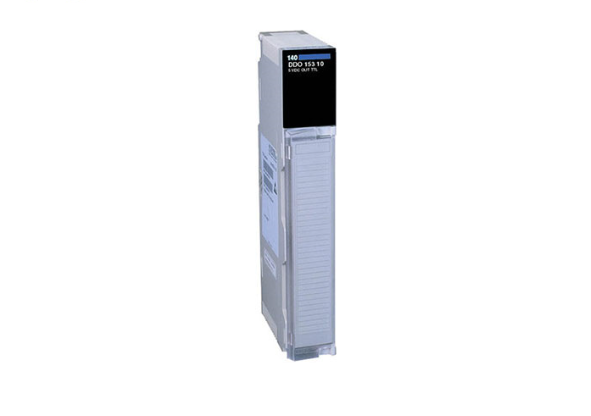

140DDO15310 SCHNEIDER 分立输出模块
【产品详情】
部件号 140DDO15310
制造者 施耐德电气
类型 I/O 模块
型# 140-DDO-153-10
保证 2 年
总线电流要求 350毫安
产品或组件类型 TTL 离散输出模块
离散输出数 32
频道组 4组8通道
离散输出类型 TTL
正(下沉)
寻址要求 2 输出字
分立输出电压 5 V 直流
电压状态 1 保证 <= 0.2 V
[Us] 额定电源电压 4...5.5 V 直流
绝对最大输出 15 V,用于 0.0013 s 衰减电压脉冲直流
内部上拉电阻 440欧姆
最大负载电流 <= 每个模块 2.4 A
<= 每组 600 mA
<= 每点 75 mA
浪涌电流 750 A 每点之间 0.5 ms
响应时间 <= 250 Âμs,状态 0 到状态 1 电阻
<= 250 Âμs,状态 1 到状态 0 电阻
保护类型 通过瞬态电压抑制提供输出保护
140DDO15310 SCHNEIDER 分立输出模块
【英文介绍】
Part number 140DDO15310
Manufacturer Schneider Electric
Type I/O module
Type # 140-DDO-153-10
Guaranteed for 2 years
The bus current requires 350 MA
Product or Component Type TTL discrete output module
Discrete output number 32
Channel Group 4 Group 8 channels
Discrete output type TTL
Positive (sinking)
Addressing requires 2 output words
Discrete output voltage 5 V DC
Voltage state 1 ensures <= 0.2V
[Us] Rated supply voltage 4... 5.5V DC
Absolute maximum output 15 V for 0.0013 s attenuation voltage pulse DC
Internal pull-up resistance 440 ohms
Maximum load current <= 2.4A per module
<= 600 mA per group
<= 75 mA per point
The surge current is 750 A 0.5 ms between each point
Response time <= 250 A μs, resistance from state 0 to state 1
<= 250 A μs, resistance from states 1 to 0
Protection Type Provides output protection through transient voltage suppression
