140CPS52400 电源  标准模块格式 SCHNEIDER

【产品详情】

施耐德电气 140CPS52400 是一款电源模块，专为需要可靠冗余电源的各种应用而设计。该型号由能源管理和自动化领域的领先公司施耐德电气制造，提供一系列功能和规格，使其适用于要求苛刻的工业环境。这些产品在法国制造，专为物料搬运、包装和纺织机械使用而设计。它们提供MRO电气的2年保修。我们还提供来自其他制造商的电源，如Modicon和ABB。

特征

140CPS52400 电源模块是标准模块格式的一部分，可确保兼容性并易于集成到不同的系统和设置中。它的电源类型是冗余的，这意味着它能够在主电源发生故障或中断时提供备用电源。

输入

该模块的输入电压范围为 100 至 150 伏直流电，可在 125 伏直流电的标称输入电压下有效运行。500 V输入的额定输入电流为125 mA。该模块在 28 V 时的浪涌电流为 125 A，这是指启动期间电流的瞬时浪涌。

电源模块具有小于或等于 1 毫秒的令人印象深刻的输入电源中断时间，可确保在电源波动或中断期间将中断降至最低。此外，建议使用 2 A 慢熔断保险丝作为相关的保险丝额定值，以保护电源免受过大电流的影响。

输出

140CPS52400 模块的输出电压额定为 5.1 伏直流电。它提供 8 A 的冗余电源输出电流，确保为连接的装置或设备提供足够的电力。包括内部过压保护和过载保护机制，以保护模块和连接的设备免受电压尖峰或过大电流的影响。

在功耗方面，该模块遵循公式6 + （1.5 x Iout），其中Iout表示以安培为单位的输出电流。该公式有助于计算模块在工作期间消耗的功率。

信号

对于本地信号和状态指示，该模块具有单个 LED，当电源 （PWR） 正常运行时发出绿灯。此信令允许对电源状态进行快速可视化评估。

140CPS52400模块带有CE标志，表明其符合相关的欧盟（EU）法规和指令。该标志向用户保证其符合安全、健康和环境保护标准。

总之，施耐德电气 140CPS52400 电源模块是一种强大的冗余解决方案，可为各种工业应用供电。凭借其标准模块格式、输入和输出规格、内部保护和本地信号，它提供了可靠的电源，同时确保连接设备的安全。其保修和CE标志进一步加强了其质量和对行业标准的遵守。

140CPS52400  电源  标准模块格式 SCHNEIDER

【英文介绍】

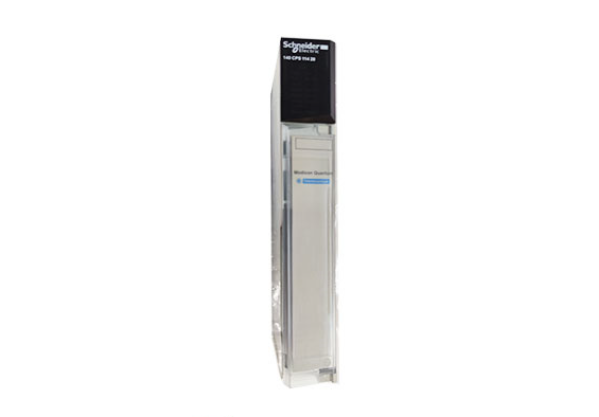

The Schneider Electric 140CPS52400 is a power module designed for a variety of applications that require a reliable and redundant power supply. Manufactured by Schneider Electric, a leading company in energy management and automation, the model offers a range of features and specifications that make it suitable for demanding industrial environments. Manufactured in France, these products are designed for material handling, packaging and textile machinery use. They come with a 2-year warranty on MRO Electric. We also supply power supplies from other manufacturers such as Modicon and ABB.

trait

The 140CPS52400 power module is part of the standard module format to ensure compatibility and easy integration into different systems and Settings. Its power supply type is redundant, which means it is able to provide backup power in the event of a failure or interruption of the main power supply.

input

The module has an input voltage range of 100 to 150 volts DC and can operate efficiently at a nominal input voltage of 125 volts DC. The rated input current for a 500 V input is 125 mA. The module has A surge current of 125 A at 28 V, which refers to the instantaneous surge of current during start-up.

The power module has an impressive input power outage time of 1 millisecond or less, ensuring that interruptions are minimized during power fluctuations or outages. In addition, it is recommended to use A 2 A slow fuse as the relevant fuse rating to protect the power supply from excessive current.

exportation

The output voltage of the 140CPS52400 module is rated at 5.1 volts DC. It provides 8 A redundant power supply output current, ensuring sufficient power to the connected device or device. Includes internal overvoltage protection and overload protection mechanisms to protect modules and connected devices from voltage spikes or excessive currents.

In terms of power consumption, the module follows the formula 6 + (1.5 x Iout), where Iout represents the output current in amperes. This formula helps to calculate the power consumed by the module during operation.

signal

For local signals and status indications, the module has a single LED that emits a green light when the power supply (PWR) is operating normally. This signaling allows for a quick visual assessment of the status of the power supply.

The 140CPS52400 module carries the CE marking, indicating compliance with the relevant European Union (EU) regulations and directives. The mark assures users that it meets safety, health and environmental protection standards.

In summary, the Schneider Electric 140CPS52400 power module is a powerful redundancy solution that can power a wide range of industrial applications. With its standard module format, input and output specifications, internal protection and local signals, it provides reliable power while ensuring the safety of connected devices. Its warranty and CE marking further reinforce its quality and compliance with industry standards.

140CPS52400  电源  标准模块格式 SCHNEIDER
