140CPS51100  电源模块  稳定输出电压 SCHNEIDER

【产品详情】

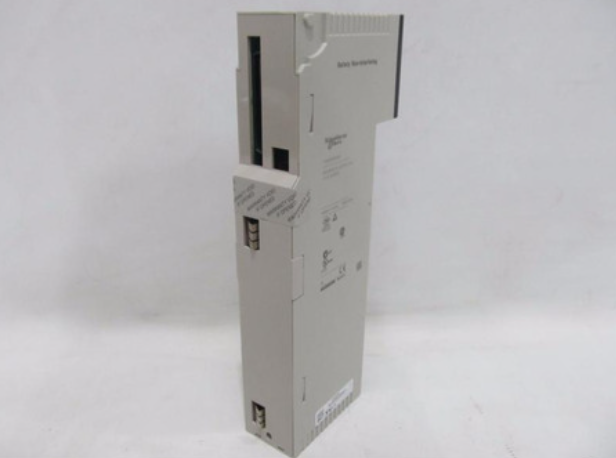

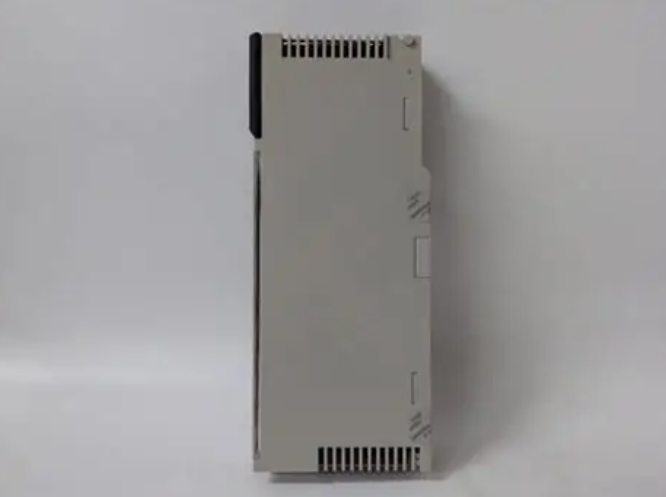

140CPS51100 电源模块的部件号和型号为 140CPS51100，是一个独立的单元，为控制系统内的连接设备提供稳定高效的电源。它以标准模块格式运行，确保与昆腾背板兼容并轻松集成到系统中。这些产品在法国制造，专为物料搬运、包装和纺织机械使用而设计。它们提供MRO电气的2年保修。我们还提供来自其他制造商的电源，如Modicon和ABB。

额定值

在输入电压方面，140CPS51100 模块需要在 125 至 100 V 的范围内提供 150 V DC 的输入电压。它在 400 V 时的输入电流额定值为 125 mA，使其能够处理控制系统内各种设备的电源需求。该模块具有浪涌电流保护功能，额定浪涌电流额定值为 10 A。这种保护机制有助于防止上电期间出现过大的电流浪涌，确保所连接设备的安全性和使用寿命。

特征

140CPS51100模块的一个显著特点是其快速输入电源中断响应时间，指定为小于或等于1 ms。这种快速响应时间有助于最大限度地减少电源中断的影响，并确保控制系统即使在短暂的电源干扰期间也能不间断运行。此外，该模块的保险丝额定值为 0.75 A，可进一步防止电流过载和短路。

Modicon 140CPS51100 模块提供 5.1 V DC 的稳定输出电压。这种精确的电压调节可确保连接的设备在指定的电压范围内获得必要的功率。在独立模式下，模块的电源输出电流范围为 0.3 至 3 A，使其能够满足控制系统内各种设备和组件的功率要求。

安全

为了确保所连接设备的安全性，140CPS51100模块集成了内部过压保护和过载保护机制。这些内置保护功能可防止电压过高和电流过载，有助于防止损坏设备和控制系统。

权力

该模块遵循特定公式：2 + （3 x Iout），其中 Iout 表示以安培为单位的输出电流。该计算可帮助用户根据所连接设备消耗的电流确定模块的功耗，使他们能够评估热管理要求并确保高效运行。

信号

140CPS51100 模块通过单个绿色 LED 指示灯发出本地信号，指示电源状态（PWR OK）。此 LED 提供模块运行状态的可视指示。

合规

140CPS51100 模块带有 CE 标志，表明符合相关的欧洲安全、电磁兼容性标准和其他法规要求。该认证加强了模块的可靠性、质量和对国际标准的遵守。

总之，施耐德电气的140CPS51100电源模块是Modicon量子工业控制系统中可靠高效的配电解决方案。凭借其标准化的格式、独立操作、精确的电压调节、内置的保护机制和快速的响应时间，它提供稳定和安全的电源，以支持连接设备的平稳运行。

140CPS51100  电源模块  稳定输出电压 SCHNEIDER

【英文介绍】

140CPS51100 The power module, whose part number and model are 140CPS51100, is an independent unit that provides stable and efficient power for connected devices in the control system. It runs in a standard module format, ensuring compatibility with the Quinten backplane and easy integration into the system. Manufactured in France, these products are designed for material handling, packaging and textile machinery use. They come with a 2-year warranty on MRO Electric. We also supply power supplies from other manufacturers such as Modicon and ABB.

Rated value

In terms of input voltage, the 140CPS51100 module needs to provide an input voltage of 150 V DC in the range of 125 to 100 V. It has an input current rating of 125 mA at 400 V, enabling it to handle the power needs of various devices within the control system. The module features surge current protection and has A 10 A surge current rating. This protection mechanism helps to prevent excessive electrical surges during power-on, ensuring the safety and service life of the connected device.

trait

A distinguishing feature of the 140CPS51100 module is its fast input power interruption response time, specified as less than or equal to 1 ms. This fast response time helps minimize the impact of power outages and ensures uninterrupted operation of the control system even during brief power interruptions. In addition, the module has a fuse rating of 0.75A, which further protects against current overload and short circuits.

The Modicon 140CPS51100 module provides a stable output voltage of 5.1 V DC. This precise voltage regulation ensures that connected devices receive the necessary power within the specified voltage range. In standalone mode, the module's power output current ranges from 0.3 to 3 A, enabling it to meet the power requirements of various devices and components within the control system.

secure

To ensure the security of connected devices, the 140CPS51100 module integrates internal overvoltage protection and overload protection mechanisms. These built-in protection features prevent overvoltage and current overload, helping to prevent damage to equipment and control systems.

might

The module follows a specific formula: 2 + (3 x Iout), where Iout represents the output current in amperes. The calculation helps users determine the power consumption of the module based on the current consumed by the connected device, allowing them to assess thermal management requirements and ensure efficient operation.

signal

The 140CPS51100 module sends a local signal through a single green LED indicator indicating the power status (PWR OK). This LED provides a visual indication of the module's operating status.

compliance

The 140CPS51100 module bears the CE marking, indicating compliance with the relevant European safety, electromagnetic compatibility standards and other regulatory requirements. This certification reinforces the module's reliability, quality and compliance with international standards.

In short, the 140CPS51100 power module from Schneider Electric is a reliable and efficient power distribution solution for Modicon quantum industrial control systems. With its standardized format, independent operation, precise voltage regulation, built-in protection mechanism and fast response time, it provides a stable and secure power supply to support the smooth operation of connected devices.
