140CPS22400 电源模块 - 24 V DC 冗余

【产品详情】

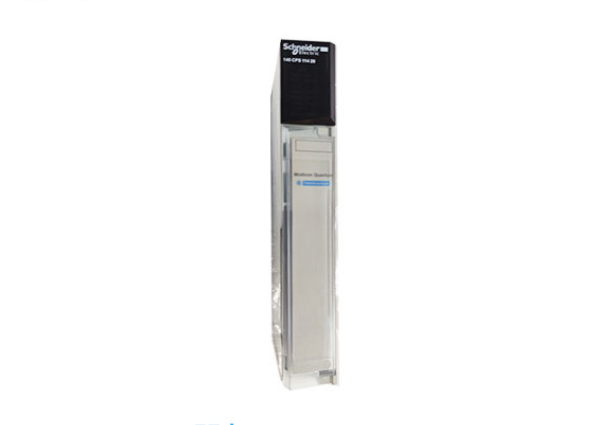

昆腾电源模块140CPS22400是由施耐德电气制造的 24 VDC 独立/汇总 7–8 A 电源模块，用于 Modicon Quantum 平台。电源模块的作用是什么？电源模块的任务是为插入Modicon昆腾机架的电源模块提供系统。Modicon140CPS22400 提供哪些类型的模块？由Modicon电源模块供电的一些模块是昆腾CPU模块，接口模块和量子I / O模块。这些产品在法国制造，专为物料搬运、包装和纺织机械使用而设计。

140CPS22400的特点

施耐德电气 140CPS22400 能够在三种可选供电模式之间进行选择。使用的模式取决于系统配置。140CPS22400 有哪三种可选模式？140CPS22400的三种可选模式是独立模式、独立求和模式和独立冗余模式。独立模式用于不需要容错或冗余功能的 3 A 或 8 A 配置。独立求和模式用于消耗超过一个电源额定电流的配置，两个求和电源可以安装在同一个机架中。独立冗余模式用于需要电源以实现不间断系统运行的配置。电源冗余需要两个冗余电源。

输入电压： 20 ...30 伏直流

输入电流：3.8 A

浪涌电流：25 A @ 24 Vdc

输入纹波：2.4 Vdc 峰峰值，94 ...189赫兹

输入电源中断：最大 1 ms @ 24 Vdc（无电容器）

外部熔断：5.0 A 慢熔断

输出至总线电压：5.1 Vdc

保护：过流、过压

量子系统的组件

Modicon 140 CPS 214 00在Modicon Quantum系统的结构中工作。它是一个电源模块，可与构成系统的其他几个组件配合使用。构成量子系统的模块是什么？

共同构成昆腾系统的模块包括控制器模块 （CPU）、电源模块 （CPS）、I/O 模块、网络接口模块（包括现场总线单元）、智能或专用模块、模拟器和电池模块、机架和扩展器以及 CableFast 布线。

昆腾系统可通过使用具有远程 I/O （RIO） 或分布式 I/O （DIO） 的网络接口模块进行扩展。

140CPS22400 电源模块 - 24 V DC 冗余

【英文介绍】

The Quinten Power module 140CPS22400 is A 24 VDC standalone/aggregate 7-8 A power module manufactured by Schneider Electric for the Modicon Quantum platform. What is the function of the power module? The task of the power module is to provide the system for the power module inserted into the Modicon Quinten rack. What types of modules does Modicon140CPS22400 provide? Some of the modules powered by the Modicon Psus are the Quinten CPU modules, interface modules, and quantum I/O modules. Manufactured in France, these products are designed for material handling, packaging and textile machinery use.

140CPS22400 features

The Schneider Electric 140CPS22400 enables you to choose between three alternative power supply modes. The mode used depends on the system configuration. 140CPS22400 Which three modes are available? The three optional modes of the 140CPS22400 are independent mode, independent Summation mode, and independent redundancy mode. Standalone mode is used in 3A or 8A configurations that do not require fault tolerance or redundancy. The independent summing mode is used in configurations that consume more than the rated current of one supply, and two summing supplies can be installed in the same rack. Independent redundancy mode is used in configurations where power is required for uninterrupted system operation. Power supply redundancy Two redundant power supplies are required.

Input voltage: 20... 30 volts DC

Input current: 3.8A

Surge current: 25 A@ 24 Vdc

Input ripple: 2.4Vdc peak-peak value, 94... 189 Hz

Input power interruption: Max 1 ms @ 24 Vdc (without capacitor)

External fuse: 5.0A slow fuse

Output to bus voltage: 5.1Vdc

Protection: over current, over voltage

Components of a quantum system

The Modicon 140 CPS 214 00 works in the structure of the Modicon Quantum system. It is a power module that can be used in conjunction with several other components that make up the system. What are the building blocks of a quantum system?

The modules that together make up the Quinten system include controller modules (CPU), power modules (CPS), I/O modules, network interface modules (including fieldbus units), intelligent or dedicated modules, simulator and battery modules, racks and extenders, and CableFast cabling.

The Quinten system can be extended by using network interface modules with remote I/O (RIO) or distributed I/O (DIO).
