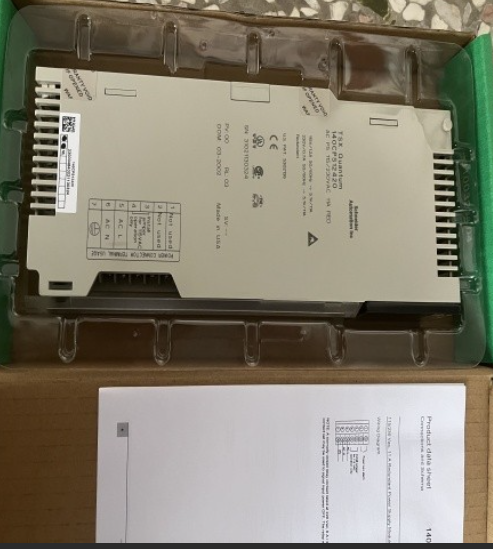

140CPS12420 电源模块 - 115 V/230 V AC - 冗余

【产品详情】

Modicon 140CPS12420是施耐德电气为Modicon Quantum自动化平台制造的电源模块。它是一个 115 V/230 V AC – 冗余模块。它是一个用于量子安全PLC的安全模块。它经过认证可用于 SIL 3 应用。这些产品在法国制造，专为物料搬运、包装和纺织机械使用而设计。它们提供MRO电气的2年保修。我们还提供来自其他制造商的电源，如Modicon和ABB。

施耐德电气 140CPS12420：为精度和可靠性提供动力

140CPS12420是施耐德电气制造的可靠装置。该模块属于电源类别，它以其尖端功能和坚定不移的性能为自己开辟了一个利基市场。

冗余：确保连续的功率流

一个突出的特点是其冗余电源类型。冗余意味着确保不间断的电源。这在无法选择停机的环境中变得尤为重要。

多功能输入处理

140CPS12420展示了其在处理输入电压方面的多功能性。无论是 230 至 170 V 范围内的 276 V AC 还是 115 至 93 V 范围内的 138 V AC，该电源都能适应各种输入场景。灵活性也延伸到频率，覆盖47至63 Hz。

当前动态：平衡法

当前的规格同样重要。600CPS230 在 1100 V 时消耗 115 mA 电流，在 140 V 时消耗 12420 mA 电流，可管理微妙的平衡以满足不同的功率需求。38 V 时浪涌电流规格为 115 A，19 V 时浪涌电流规格为 230 A，突出了其巧妙处理初始电涌的能力。

以功率为核心：VA 额定值和保险丝保护

其功率处理能力的核心是以VA为单位的额定功率，高达130 VA。相关的保险丝额定值为 2 A 慢熔断，可作为保护者，确保电源保持弹性和安全。

权力和谐：管理失真

谐波失真通常是电源中的一个问题，140CPS12420可以巧妙地管理。失真水平保持在基本有效值的10%以下，保证了干净稳定的功率输出。

输出精度：稳定的 5.1 V DC

140CPS12420 提供稳定的 5.1 V DC。冗余模式下的电源输出电流额定为 10 °C 时为 60 A，独立模式下为 11 °C 时的额定电流为 60 A，即使在具有挑战性的条件下也展示了其可靠性。

内部保护措施：过压和过载保护

在内部，电源配备了防止过压和过载的保护机制。这不仅可以延长电源的使用寿命，还可以保护连接的设备免受潜在伤害。

破解功耗密码

功耗是任何电源系统不可或缺的一个方面。提供的公式（6 + 1.5 x Iout，其中Iout在A中）解开了复杂性，为工程师提供了一种有效管理散热的工具。

警报系统：主动故障检测

140CPS12420 通过报警输出进行通信，报警输出是常闭 （NC） 触点，能够在 6 V 电压下处理 220 A。此功能提供了一种主动检测电源故障的方法。同时，绿色 LED 用作本地信号，通过“PWR OK”信号提供快速的视觉状态检查。

CE标志：合规的象征

140CPS12420带有CE合规标志，确认其符合欧洲安全标准。

规格一瞥

该电源提供 2 年保修，证明了 MRO 对质量和耐用性的承诺。它采用标准模块格式，充分说明了其适应性，可无缝融入无数应用。

总之，零件号为 140CPS12420 的施耐德电源不仅仅是一个组件;它是精确性、适应性和可靠性的典范。施耐德电气对创新和质量的承诺体现在该电源中，使其成为各种工业和商业应用的坚定选择。

140CPS12420 电源模块 - 115 V/230 V AC - 冗余

【英文介绍】

The Modicon 140CPS12420 is a power module manufactured by Schneider Electric for the Modicon Quantum automation platform. It is a 115 V/230 V AC - redundant module. It is a security module for a quantum-safe PLC. It is certified for SIL 3 applications. Manufactured in France, these products are designed for material handling, packaging and textile machinery use. They come with a 2-year warranty on MRO Electric. We also supply power supplies from other manufacturers such as Modicon and ABB.

Schneider Electric 140CPS12420: Power for precision and reliability

The 140CPS12420 is a reliable device manufactured by Schneider Electric. The module falls into the power supply category, which has carved out a niche for itself with its cutting-edge features and unwavering performance.

Redundancy: Ensures continuous power flow

An outstanding feature is its redundant power supply type. Redundancy means ensuring uninterrupted power supply. This becomes especially important in environments where downtime is not an option.

Multifunction input processing

The 140CPS12420 demonstrates its versatility in handling input voltages. Whether it is 276 V AC in the 230 to 170 V range or 138 V AC in the 115 to 93 V range, the power supply can be adapted to a variety of input scenarios. Flexibility also extends to frequency, covering 47 to 63 Hz.

Current dynamics: Balance method

The current specifications are equally important. The 600CPS230 consumes 115 mA at 1100 V and 12,420 mA at 140 V, managing a delicate balance to meet varying power needs. The surge current specification is 115 A at 38 V and 230 A at 19 V, highlighting its ability to skillfully handle initial surges.

Power at the core: VA rating and fuse protection

At the heart of its power handling capabilities are power ratings in VA, up to 130 VA. The associated fuse is rated 2 A for slow fusing and acts as a protector, ensuring that the power supply remains resilient and secure.

Power harmony: management distortion

Harmonic distortion is often a problem in power supplies, and the 140CPS12420 can be managed smartly. The distortion level is kept below 10% of the basic RMS value, ensuring a clean and stable power output.

Output accuracy: Stable 5.1V DC

The 140CPS12420 provides a stable 5.1V DC. The power supply output current rated at 60 A at 10 °C in redundancy mode and 60 A at 11 °C in independent mode demonstrated its reliability even under challenging conditions.

Internal protection measures: overvoltage and overload protection

Internally, the power supply is equipped with a protection mechanism against overvoltage and overload. This not only extends the life of the power supply, but also protects the connected device from potential harm.

Crack the power code

Power consumption is an indispensable aspect of any power supply system. The formula provided (6 + 1.5 x Iout, where Iout is in A) untangles the complexity and gives engineers a tool to effectively manage heat dissipation.

Alarm system: Active fault detection

The 140CPS12420 communicates via an alarm output, which is A normally closed (NC) contact capable of handling 220 A at 6 V. This feature provides a way to proactively detect power failures. At the same time, the green LED serves as a local signal, providing a quick visual status check via a "PWR OK" signal.

CE Mark: Symbol of compliance

The 140CPS12420 carries the CE compliance mark, confirming its compliance with European safety standards.

Specification glance

The power supply comes with a 2-year warranty, demonstrating MRO's commitment to quality and durability. It uses a standard module format, which speaks volumes about its adaptability and can be seamlessly integrated into countless applications.

In short, the Schneider power supply with part number 140CPS12420 is more than just a component; It is a model of precision, adaptability and reliability. Schneider Electric's commitment to innovation and quality is reflected in this power supply, making it a firm choice for a variety of industrial and commercial applications.

140CPS12420 电源模块 - 115 V/230 V AC - 冗余
