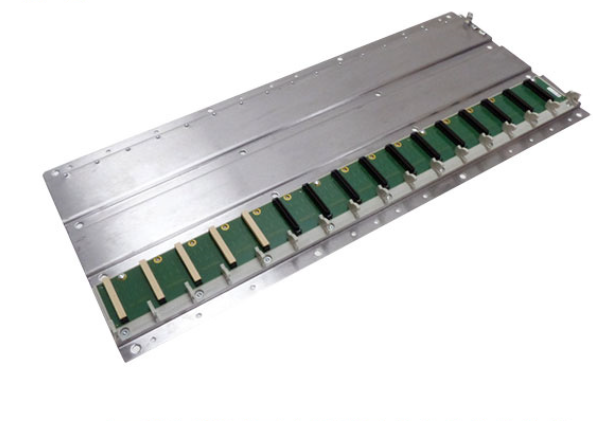

140XBP01600 机架背板 - 16 插槽 Schneider

【产品详情】

产品详细信息

Schneider Electric 背板，适合与 Modicon Quantum 系列一起使用，428（长）x 290mm（宽） - 140XBP01000

使用 Schneider Electric 的此背板来组织输入/输出模块并将其连接到 PLC。此组件扩展了 PLC 的功能，由于它不会干扰安全流程，它适用于工业安全应用。为便于使用，机架提供控制信号并分配操作所安装的模块所需的电源。此背板与 Schneider Electric 的 Modicon Quantum 系列的处理器和附件兼容，可控制复杂的连续或半连续工业过程。

特性和优势

• 坚固的金属框架，在恶劣环境中也能保证长寿命

• 包括螺纹孔，用于快速连接每个模块

• 随附接地接线端子，确保安全性

• 十个自由插槽，用于连接多个分布式、本地或远程输入/输出模块

应用

• 石化工业

• 水处理厂

• 水力发电

• 冶金行业

背板上是否有专用插槽？

否，此背板上没有专用插槽，这意味着您不会受限于安装模块的位置。建议您将电源模块插入极左槽，因为这有助于散热。

Schneider Electric Modicon Quantum 系列

Modicon Quantum 系列包含大量功能强大的处理器和附件，为复杂的连续或半连续工业过程提供了理想的解决方案。该高功率处理器优化循环时间，同时集成比之前更多的通信功能、诊断系统、存储器灵活性和数据存储。

140XBP01600 机架背板 - 16 插槽 Schneider

【英文介绍】

Product Details

Schneider Electric backplane, suitable for use with the Modicon Quantum series, 428 (L) x 290mm (W) -140XBP01000

Use this backplane from Schneider Electric to organize the input/output modules and connect them to the PLC. This component extends the functionality of the PLC, and since it does not interfere with the safety process, it is suitable for industrial safety applications. For ease of use, the rack provides control signals and distributes the power needed to operate the installed modules. Compatible with Schneider Electric's Modicon Quantum series of processors and accessories, this backplane can control complex continuous or semi-continuous industrial processes.

Characteristics and advantages

• Robust metal frame for long life even in harsh environments

• Includes threaded holes for quick connection to each module

• Comes with a ground terminal for safety

Ten free slots for connecting multiple distributed, local, or remote input/output modules

Apply

• Petrochemical industry

• Water treatment plant

• Hydroelectric power

• Metallurgical industry

Are there dedicated slots on the backplane?

No, there are no dedicated slots on this backplane, which means you are not limited to where to install the module. It is recommended that you insert the power module into the far left slot, as this helps to dissipate heat.

Schneider Electric Modicon Quantum series

The Modicon Quantum family contains a large number of powerful processors and accessories, providing the ideal solution for complex continuous or semi-continuous industrial processes. The high-power processor optimizes cycle times while integrating more communication capabilities, diagnostic systems, memory flexibility and data storage than ever before.
