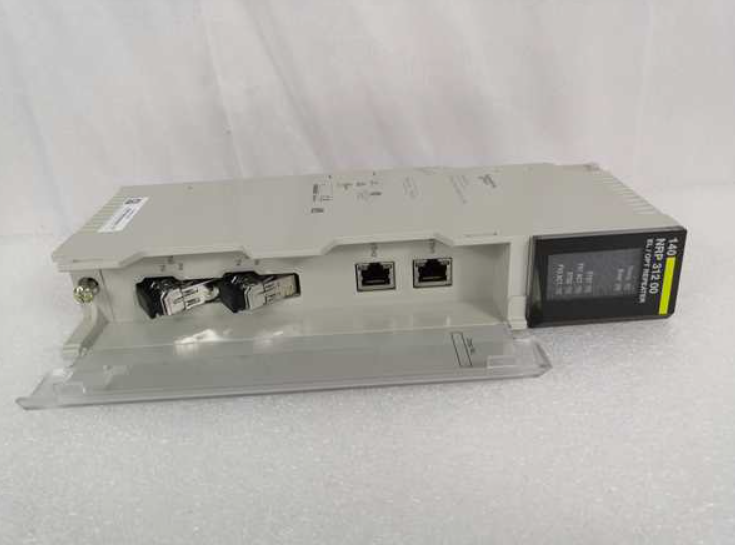

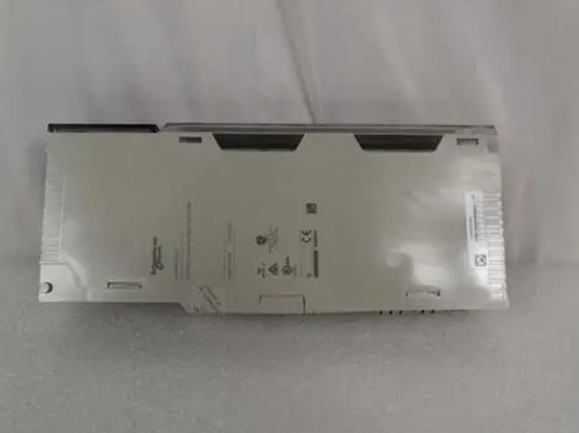

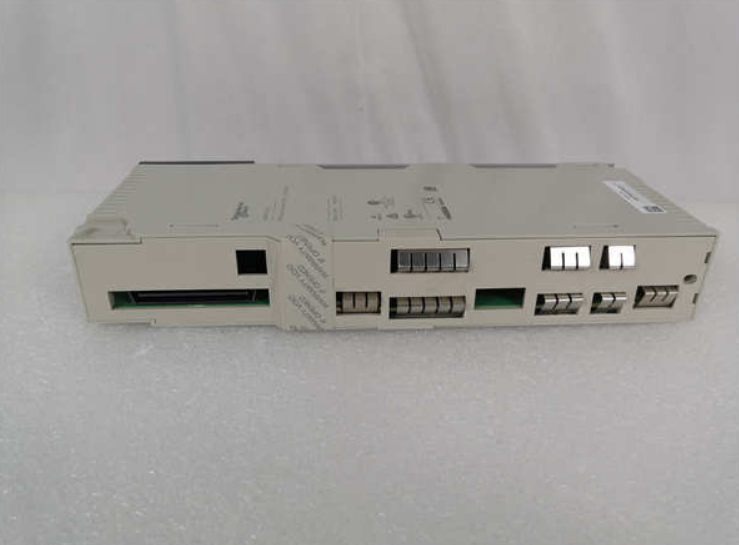

140NRP31200C Schneider 以太网光纤转换器
【产品详情】
主要信息
产品系列
Modicon Quantum 自动化平台
产品类型
光纤转换器
光纤类型
多模
补充信息
需求总线电流
1000 mA
功耗W
5 W
最大涌流
1 A 在…上 5 V 直流
端口量
2 光纤, 连接器类型: LC
2 以太网, 连接器类型: RJ45
本地信号指示
1 个LED 绿色 和 RDY准备 标志 适用 模块状态
1 个LED 红色 和 ERR 标志 适用 模块内部故障
1 个LED 绿色 和 STS1 标志 适用 信道1连接状态
1 个LED 绿色 和 FX1 ACT 标志 适用 信道1通信状态
1 个LED 绿色 和 STS2 标志 适用 信道2连接状态
1 个LED 绿色 和 FX2 ACT 标志 适用 信道2通信状态
波长
1310 nm
2传感器之间的光距离
2000 m (50/126 µm), 光驱电源 : -23.5…-14 dBm
3000 m (62.5/125 µm), 光驱电源 : -20…-14 dBm
衰减
-23.5…-14 dB (50/126 µm)
-20…-14 dB (62.5/125 µm)
上升/下降时间
3 ns
接收机灵敏度
- 30 dBm
探测静音
-45 dBm
标识
CE
材料
聚碳酸酯 (PC)
宽度
40.34 mm
高度
250 mm
深度
103.85 mm
净重
0.554 kg
140NRP31200C Schneider 以太网光纤转换器
【英文介绍】
Main information
Product series
Modicon Quantum automation platform
Product type
Fiber optic converter
Fiber type
multimode
Supplementary information
Required bus current
1000 mA
Power consumption W
5 W
Maximum inrush current
1 A in... Up to 5 V DC
Port quantity
2 Optical fiber, connector type: LC
2 Ethernet connector type: RJ45
Local signal indication
1 LED green and RDY ready sign for module status
1 LED red and ERR signal for internal module faults
1 LED green and STS1 flag for channel 1 connection status
1 LED green and FX1 ACT flag for channel 1 communication status
1 LED green and STS2 flag for channel 2 connection status
1 LED green and FX2 ACT flag for channel 2 communication status
Wave length
1310 nm
2 Optical distance between sensors
2000 m (50/126 µm), optical drive power supply: -23.5... -14 dBm
3000 m (62.5/125 µm), optical drive power supply: -20... -14 dBm
attenuation
23.5... -14 dB (50/126 µm)
- 20... -14 dB (62.5/125 µm)
Rise/fall time
3 ns
Receiver sensitivity
- 30 dBm
Detection silence
-45 dBm
identification
CE
Materials
Polycarbonate (PC)
breadth
40.34mm
Altitude
250 mm
profundity
103.85 mm
Net weight
0.554 kg
