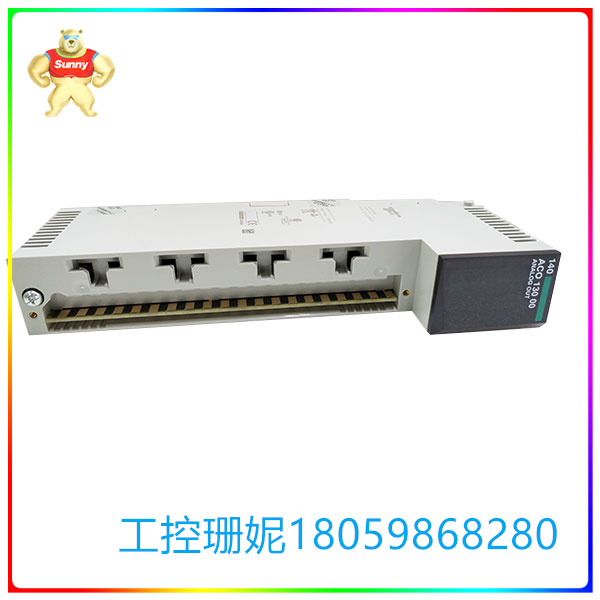

140ACO13000 模拟输出模块 多量程 I/O 模块
【产品详情】
Modicon 140ACO13000是施耐德电气制造的模拟输出模块。它是Modicon Quantum ExoStruxure控制系列的一部分,用于隐蔽和模拟I / O模块。它可以配置UnityPro软件。该装置有八个用于控制和监控电流的模拟输出通道。它在 4 ...20 毫安, 0 ...20 mA 和 0 ...25 mA 环路。这些产品在法国制造,专为物料搬运、包装和纺织机械使用而设计。它们提供MRO电气的2年保修。我们还提供来自其他制造商的I / O模块,如Modicon和ABB。
特征
施耐德电气 140ACO13000 Modicon 模块具有六个可识别功能。在模块的顶部正面,您可以看到颜色编码的模块编号以及说明。数字下方是带有 8 个不同指示灯的 LED。带有客户识别标签的可拆卸门中封闭的是保险丝开口区域。和现场接线端子条。
140ACO13000 LED 在总线通信存在时发出绿色警报。当检测到模块外部错误时,LED 会发出红色警报。1...8 在模块输出打开时为绿色,当有通道断线指示时为红色。
此模块的输入范围为 0...25毫安 0...20毫安 4...20毫安。分辨率为 0...25毫安: 0...25,000 积分 0...20 毫安: 0...20,000 积分 4...20 毫安: 0...16,000 积分(默认) 4...20 毫安: 0...4095分。通道之间没有隔离。它有 8 个输出字。所需的总线电流为550 mA。它的最大耗散功率为 5.0 W。您可以在线修改配置。它通过了 UL 508、CSA 22.2-142、e、FM 1 级 2 区、ATEX 2/22 区认证。
如何使用 140ACO13000
施耐德电气 140ACO13000 用于本地量子 I/O 站。要在本地工作站中插入模块,必须执行以下步骤。调用总线编辑器并使用鼠标左键标记本地站中的空闲插槽。将鼠标指针移到插槽上,右键单击快捷菜单并选择新设备。然后,您可以通过打开已安装模块的对话框来配置模块的参数。
配置 I/O 离散模块时,您可以选择以字格式或位格式提供 I/O 数据。

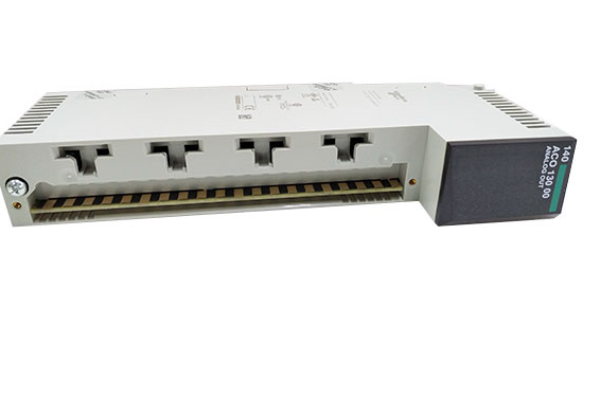

140ACO13000 模拟输出模块 多量程 I/O 模块
【英文介绍】
Modicon 140ACO13000 is an analog output module manufactured by Schneider Electric. It is part of the Modicon Quantum ExoStruxure family of controls for concealing and emulating I/O modules. It can configure the UnityPro software. The device has eight analog output channels for controlling and monitoring current. It's in 4... 20 mah, 0... 20 mA and 0... 25 mA loop. Manufactured in France, these products are designed for material handling, packaging and textile machinery use. They come with a 2-year warranty on MRO Electric. We also offer I/O modules from other manufacturers such as Modicon and ABB.
trait
The Schneider Electric 140ACO13000 Modicon module has six identifiable functions. On the top front of the module, you can see the color-coded module number along with the description. Below the number are leds with eight different indicators. Enclosed in the detachable door with a customer identification tag is the fuse opening area. And field terminal strip.
The 140ACO13000 LED emits a green alarm when bus communication is present. When an external module error is detected, the LED emits a red alert. 1... 8 Green when the module output is turned on, red when there is a channel break indication.
The input range for this module is 0... 25 MA 0... 20 mah 4... 20 mah. The resolution is 0... 25 mah: 0... 25,000 points 0... 20 mah: 0... 20,000 points 4... 20 mah: 0... 16,000 points (default) 4... 20 mah: 0... 4095 points. There is no isolation between channels. It has 8 output words. The required bus current is 550 mA. It has a maximum power dissipation of 5.0 W. You can modify the configuration online. It is UL 508, CSA 22.2-142, e, FM Level 1 Zone 2, ATEX 2/22 Zone certified.
How to use 140ACO13000
Schneider Electric 140ACO13000 for local quantum I/O stations. To insert a module in your local workstation, you must perform the following steps. Call the bus editor and use the left mouse button to mark the free slots in the local station. Move your mouse pointer over the slot, right-click the shortcut menu and select New device. You can then configure the parameters of the module by opening the dialog box for the installed module.
When you configure an I/O discrete module, you can choose to provide I/O data in word format or bit format.
