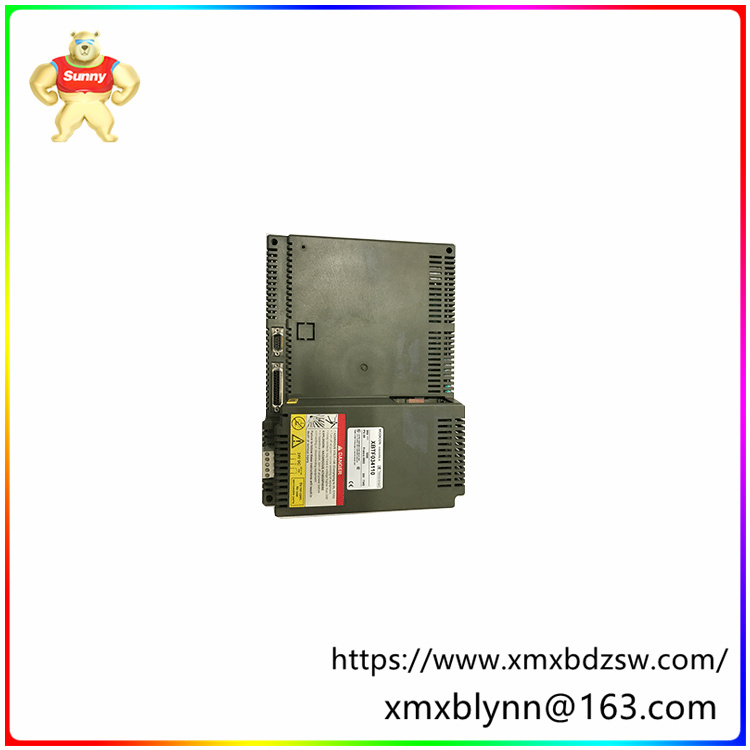

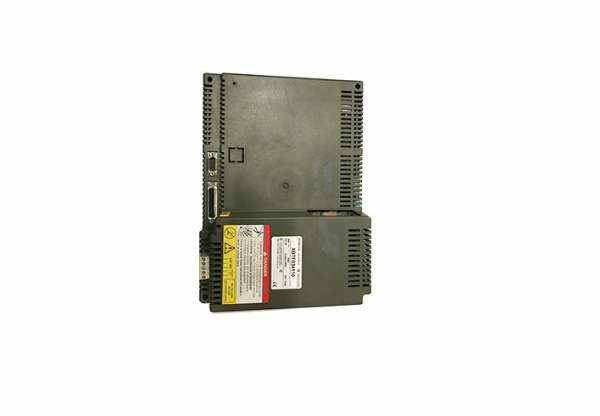

XBTGK2120 先进触摸屏面板 具有可调节背光

☆型号：XBTGK2120   先进触摸屏面板   具有可调节背光

【产品详情】

XBTGK2120是由施耐德电气制造的带键盘的先进触摸屏面板。它设计用于他们的 Magelis HMI（人机界面）系统，该系统为控制和监控工业机械和过程提供了图形界面。

以下是 XBTGK2120 主要功能的细分：

触摸屏显示：它采用 5.7 英寸单色 STN LCD 显示屏，分辨率为 320 x 240 像素。用户可以通过触摸屏界面与HMI系统进行交互。

键盘：除了触摸屏外，XBTGK2120还包括一个用于文本输入和导航的物理键盘。

背光：单色显示屏具有可调节背光（8 级），可在各种照明条件下提高可视性。

通信端口：它配备了各种通信端口，用于连接PLC（可编程逻辑控制器）和其他设备，包括：

串口（RS232C/RS422/RS485）

USB 端口（A 型）

软件：该XBTGK2120使用施耐德电气的 Vijeo Designer 软件进行配置，该软件允许用户创建自定义 HMI 屏幕、定义功能和程序交互。

应用：

该XBTGK2120适用于需要操作界面的各种工业自动化应用，例如：

机器控制和监控：为操作员提供控制和监控机器各种参数的界面，包括启动/停止过程、调整设置和查看实时数据。

数据采集和可视化：从传感器和PLC收集数据，并以用户友好的格式显示在HMI屏幕上。

报警管理：显示和确认控制系统生成的警报，使操作员能够采取纠正措施。

可用性和定价：

XBTGK2120可能是较旧的型号，施耐德电气可能会提供更新的版本。

【英文介绍】

The XBTGK2120 is an advanced touchscreen panel with a keyboard manufactured by Schneider Electric. It is designed to work with their Magelis HMI (Human Machine Interface) system, which provides a graphical interface for controlling and monitoring industrial machinery and processes.

Here is a breakdown of the main features of the XBTGK2120:

Touchscreen display: It features a 5.7-inch monochrome STN LCD display with a resolution of 320 x 240 pixels. Users can interact with the HMI system through a touch screen interface.

Keyboard: In addition to the touch screen, the XBTGK2120 includes a physical keyboard for text entry and navigation.

Backlight: The monochrome display features an adjustable backlight (level 8) for improved visibility in a variety of lighting conditions.

Communication ports: It is equipped with a variety of communication ports for connecting PLCS (programmable logic controllers) and other devices, including:

Serial port (RS232C/RS422/RS485)

USB Port (Type A)

Software: The XBTGK2120 is configured using Schneider Electric's Vijeo Designer software, which allows users to create custom HMI screens, define functions, and program interactions.

Applications:

The XBTGK2120 is suitable for a variety of industrial automation applications that require an operating interface, such as:

Machine control and monitoring: Provides the operator with an interface to control and monitor various parameters of the machine, including starting/stopping processes, adjusting Settings, and viewing real-time data.

Data acquisition and visualization: Data is collected from sensors and PLCS and displayed on the HMI screen in a user-friendly format.

Alarm management: Displays and confirms alarms generated by the control system, enabling the operator to take corrective action.

Availability and Pricing:

The XBTGK2120 may be an older model, and Schneider Electric may offer an updated version.
