140NOE77100 以太网网络 TCP/IP模块

☆型号：140NOE77100 以太网网络 TCP/IP模块

【产品详情】

施耐德电气 140 NOE 771 00 的特点

点对点通信是 Quantum 140 NOE 771 00 的一项功能。它还用于提供 I/O 扫描并充当 Modbus/TCP 服务器。该模块能够包含 HTTP 服务。这些服务有助于维护和配置功能。

施耐德电气 140 NOE 771 00 的主要特点包括规定。它通过一个支持全双工的双工双绞屏蔽端口启用，并集成了 10/100 BASE-TX。它具有一个支持全双工的光纤端口，该端口集成了 100BASE-FX 多模。Quantum 140 NOE 771 00 包括一个嵌入式 HTTP 服务器以及一个 BOOTP 客户端和服务器。140 NOE 771 00 的另一个功能是 SNMP V2 代理。它采用闪存文件系统功能，并具有集成的 Modbus I/O 扫描器。Quantum140 NOE 771 00 能够通过 TCP/IP 使用可现场升级的软件。昆腾 140 NOE 771 00 的最后一个突出功能是 Modbus/TCP 客户端和 Modbus/TCP 服务器。

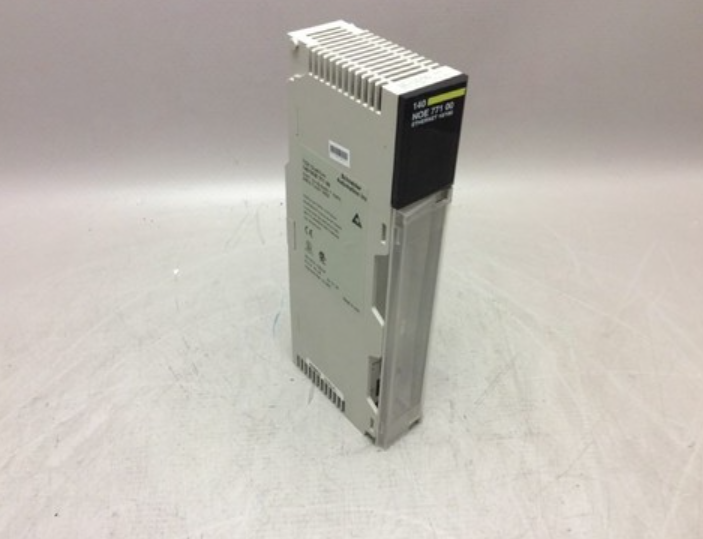

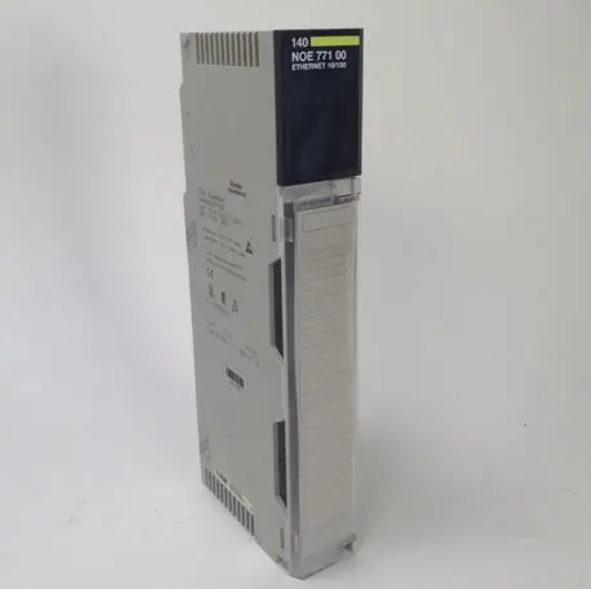

Quantum 140 NOE 771 00 的前面板显示许多识别功能，包括模块前顶部可见的识别标记，以及颜色代码和 LED 显示屏。昆腾 140 NOE 771 00 模块正面有一个可拆卸的铰链门，其中包含一个可写 IP（互联网协议）地址空间、一个全局地址区域和一个连接器电缆区域。这个空间连接了哪些电缆？此空间用于两根以太网连接器电缆。

优势

Quantum 140 NOE 771 00 模块配有 LED 显示屏。此显示显示与面板相关的许多项目。LED 指示 140 NOE 771 00 模块以及连接的光纤和 Modbus 通信网络的运行状态。

前面板允许记录所选 IP 地址的首选书面分配。全局地址指示位于前面板，显示工厂分配的以太网 MAC 地址。

施耐德电气 Quantum 140 NOE 771 00 包括两个连接：一个 100 BASE-FX 连接器和一个 10/100BASE-T 连接器。100 BASE-FX 连接器提供 MT - RJ 插座。MT – RJ 插座提供与 100 兆位光纤以太网电缆模块的连接。10/100BASE-T 连接器提供 RJ – 45 插座。RJ – 45 插座用于屏蔽双绞线以太网电缆连接。

☆型号：140NOE77100 以太网网络 TCP/IP模块

【英文介绍】

Features of the Schneider Electric 140 NOE 771 00

Point-to-point communication is a feature of Quantum 140 NOE 771 00. It is also used to provide I/O scanning and acts as a Modbus/TCP server. This module can contain HTTP services. These services help maintain and configure functionality.

The main features of the Schneider Electric 140 NOE 771 00 include regulations. It is enabled via a duplex twisted-shielded port that supports full duplex and integrates 10/100 BASE-TX. It features a full-duplex fiber port that integrates 100BASE-FX multimode. Quantum 140 NOE 771 00 includes an embedded HTTP server as well as a BOOTP client and server. Another feature of the 140 NOE 771 00 is the SNMP V2 agent. It features flash file system functionality and has an integrated Modbus I/O scanner. Quantum140 NOE 771 00 is capable of using field-upgradable software over TCP/IP. The final standout feature of the Quinten 140 NOE 771 00 is the Modbus/TCP client and Modbus/TCP server.

The front panel of the Quantum 140 NOE 771 00 displays a number of recognition features, including an identification marker visible on the front top of the module, as well as a color code and LED display. The Quinten 140 NOE 771 00 module has a detachable hinged door on the front that contains a writable IP (Internet Protocol) address space, a global address area, and a connector cable area. What cables are connected to this space? This space is used for two Ethernet connector cables.

advantage

The Quantum 140 NOE 771 00 module is equipped with an LED display. This display shows the many items associated with the panel. The LED indicates the operating status of the 140 NOE 771 00 module and the connected fiber optic and Modbus communication network.

The front panel allows the preferred written assignment of the selected IP address to be recorded. The Global Address indicator is located on the front panel and displays the factory-assigned Ethernet MAC address.

The Schneider Electric Quantum 140 NOE 771 00 includes two connections: a 100 BASE-FX connector and a 10/100BASE-T connector. The 100 BASE-FX connector offers MT-RJ sockets. The MT-RJ socket provides connectivity to the 100 megabit fiber Ethernet cable module. 10/100BASE-T connectors are available with RJ-45 sockets. Rj-45 socket Used to shield twisted pair Ethernet cable connections.
