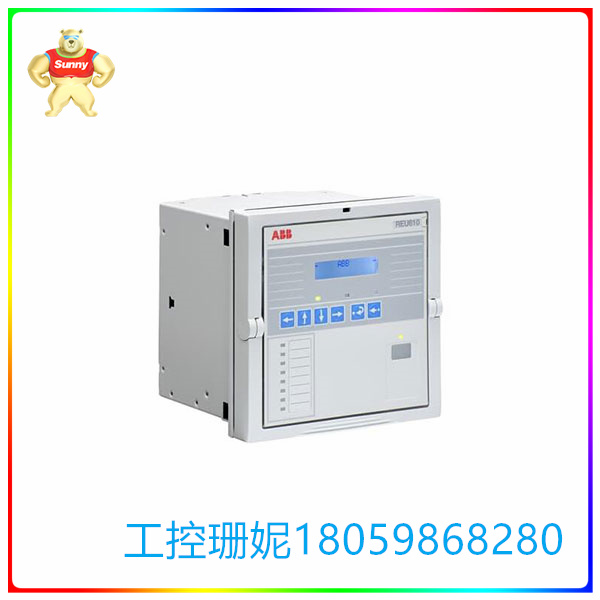

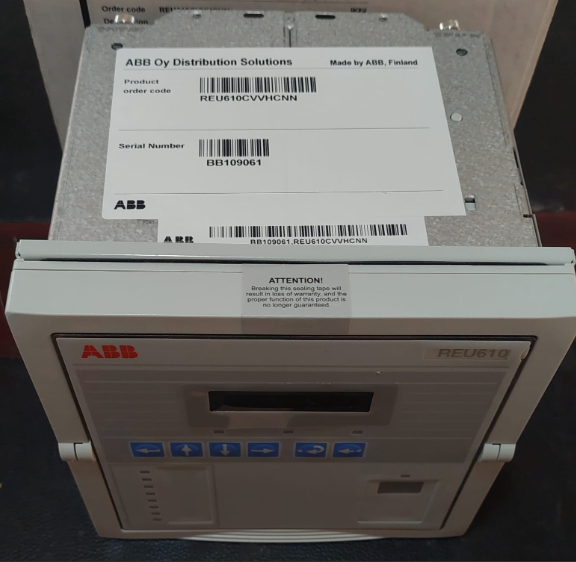

REU610 电压继电器 系统电压的保护

☆型号：REU610 电压继电器 系统电压的保护

【产品详情】

可用于公用和工业电力系统中的系统电压的保护、测量和监视。

REU610是 ABB Relion®产品家族中的610 产品系列的成员。该系列包括用于馈线保护、电动机保护和常规系统电压监视的保护装置。插入式设计有利于开关设备的调试，并且保证了插件的快速、安全插拔。

REU610 用于配电站母线过压和低压保护、馈线和变压器过压保护、电动机低压保护以及电容器组的保护和监视。在中性点不接地电力系统中，基于零序电压测量，REU610也可用于无选择性接地故障保护。REU610 用于变电站母线电压自动转换初始化时，将小型动力装置与公共网络断开，即孤岛效应。

为何选择ABB？

公用和工业应用的专用保护

已通过KEMA认证

其在海洋和离岸区域的使用，已通过挪威船级社的认证

610系列结构紧凑，可满足于改型和小空间

可拆卸插入式设计，允许快速和简单的日常维护

REU610 是一款电压继电器，用于公用事业和工业电力系统中的系统电压保护、测量和监控。

自 2017 年以来未激活的产品

REU610 是 ABB Relion 产品系列的成员，也是其 610 产品系列的一部分。该系列包括用于馈线保护、电机保护和一般系统电压监控的保护继电器。插入式设计便于开关设备的调试，并能够快速安全地插入和拔出插入式单元。®

REU610设计用于配电变电站母线过压和欠压保护、馈线和电力变压器过压保护、电机欠压保护以及电容器组保护和监控。在隔离式中性线电源系统中，它还用于基于残余电压测量的非歧视性接地故障保护。REU610 用于初始化变电站母线自动切换和断开小型动力装置与公共网络的连接，即孤岛。

范围

电压保护继电器

产品优势

紧凑的设计使其适用于新安装和改造安装

采用可拆卸的插件式设计，日常维护快速简便

通过KEMA认证的完整型式试验

获得挪威船级社 （DNV） 的船舶和近海使用认证

产品特点

为公用设施配电和基本工业应用提供保护

REU610 提供集成保护功能，包括两级过压保护、两级欠压保护和两级剩余过压保护。此外，REU610还包括两个互斥的保护功能，一个是单级负相序过压保护功能，一个是单级正相序欠压保护功能。

REU610 支持多种标准通信协议，包括 IEC 61850、IEC 60870-5-103、Modbus、Profibus®、DNP3、SPA 和 LON。

☆型号：REU610 电压继电器 系统电压的保护

【英文介绍】

It can be used to protect, measure and monitor system voltages in utility and industrial power systems.

The REU610 is a member of the 610 family of ABB's Relion® product family. The series includes protection devices for feeder protection, motor protection and conventional system voltage monitoring. The plug-in design is conducive to the debugging of the switchgear, and ensures the quick and safe insertion and removal of the plug-in.

The REU610 is used for distribution plant busbar overvoltage and low-voltage protection, feeder and transformer overvoltage protection, motor low-voltage protection, and capacitor bank protection and monitoring. In neutral ungrounded power systems, based on zero-sequence voltage measurement, the REU610 can also be used for non-selective ground fault protection. The REU610 is used to disconnect small power units from the public network during automatic bus voltage conversion initialization in substations, known as islanding.

Why choose ABB?

Special protection for public and industrial applications

It has passed KEMA certification

Its use in Marine and offshore areas has been certified by the Norwegian Register of Shipping

The 610 Series is compact enough to accommodate modifications and small Spaces

The removable plug-in design allows for quick and easy routine maintenance

The REU610 is a voltage relay for system voltage protection, measurement and monitoring in utility and industrial power systems.

Products not activated since 2017

The REU610 is a member of ABB's Relion product family and part of its 610 product family. The series includes protective relays for feeder protection, motor protection and general system voltage monitoring. The plug-in design facilitates switchgear commissioning and enables quick and safe insertion and removal of the plug-in unit. ®

The REU610 is designed for distribution substation busbar overvoltage and undervoltage protection, feeder and power transformer overvoltage protection, motor undervoltage protection, and capacitor bank protection and monitoring. In isolated neutral line power systems, it is also used for non-discriminatory ground fault protection based on residual voltage measurement. The REU610 is used to initialize automatic switching of substation busbars and disconnect small power units from public networks, known as silos.

Radius

Voltage protection relay

Product advantage

The compact design makes it suitable for new and retrofit installations

With removable plug-in design, daily maintenance is fast and easy

Complete type test with KEMA certification

Certified for ship and offshore use by the Norwegian Classification Society (DNV)

Product characteristics

Protection for utility distribution and essential industrial applications

The REU610 offers integrated protection with two stages of overvoltage protection, two stages of undervoltage protection, and two stages of residual overvoltage protection. In addition, the REU610 includes two mutually exclusive protection functions, a single stage negative phase sequence overvoltage protection and a single stage positive phase sequence undervoltage protection.

The REU610 supports several standard communication protocols, including IEC 61850, IEC 60870-5-103, Modbus, Profibus®, DNP3, SPA, and LON.
