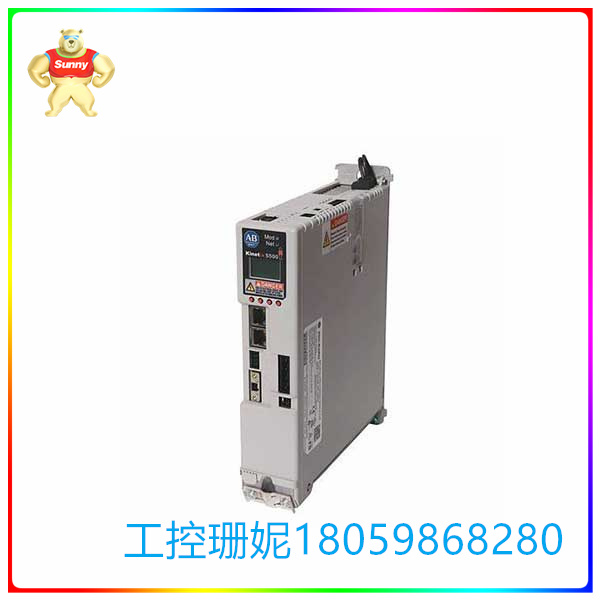

2198-H025-ERS 运动和位置控制驱动器 以太网 I/P 伺服驱动器

【产品详情】

Allen-Bradley 2198-H025-ERS 是一款运动和位置控制驱动器，是 2198 产品公告的一部分。该产品是一款 Kinetix 5500 以太网 I/P 伺服驱动器，具有现代控制和连接功能。该驱动器与用于实现集成架构的 Studio 5000 Design 环境兼容。使用集成架构和集成双以太网通信接口，2198-H025-ERS 可以完全集成到 CompactLogix、ControlLogix 和 GuardLogix 控制器平台。将此 Kinetix 驱动器集成到这些控制器中，可通过附加指令和配置文件访问驱动器参数。

2198-H025-ERS 在电压范围为 195-264V rms、三相和标称值为 240V 时运行。它还兼容 324-528V rms、3 相和 480VAC 标称电压电平。它提供 8.0 A 的连续输出电流 （rms）、11.3 A 的峰值输出电流和 4.0kW @ 195-264V rms（三相）和 8.3 kW @ 324-528V rms（三相）的输出功率。

对于分支电路保护，Allen-Bradley 建议安装保险丝和断路器等保护装置。对于 2198-H025-ERS，合适的保险丝是 KTK-R-20 Bussman 保险丝和塑壳 CB 140U-D6D3-C20（如果用于 UL 应用）。对于非 UL 应用，推荐的 DIN gG 保险丝为 20 A，塑壳断路器为 140U-D6D3-C20。该变频器还支持安装在共享直流或公共总线变频器系统、共享交流变频器系统以及共享交流/直流和混合系统中。

此 Bulletin 2198 模块为三相模块，具有两 （2） 个框架尺寸、11.3 A 0 包的连续输出电流和 240 至 480 伏的标称驱动电压，输入电压范围为 324 至 528 伏 RMS。它具有双端口连接功能，可使用额外的 CompactLogix、GuardLogix 或 ControlLogix 可编程控制器来支持线性、环形或星形以太网拓扑。2198-H025-ERS 伺服驱动器具有硬接线安全扭矩关闭或 STO 功能。这允许逆变器功率晶体管作为对数字输入的响应而安全关闭。它支持将并行输入端子级联到相邻驱动器。为了连接外部设备并将硬接线安全连接从一个驱动器级联到另一个驱动器，使用了 STO 连接器。但是，并非所有应用都需要此安全功能。在这种情况下，必须安装跳线以绕过 STO 功能。2198-H025-ERS 模块随附安装说明、用于电机反馈的连接器套件、用于分流电源/RC 连接的接线插头连接器和用于安全转矩关闭 （STO） 的连接器、24 伏控制输入电源 （CP）、数字输入 （IOD）、电源输入电源 （IPD）、电机制动器 （BC） 和电机电源。2198-H025-ERS 设计用于接地和不接地电源设置。默认情况下，接地螺钉安装在接地配置中。在不接地、拐角接地和阻抗接地环境中工作时，请移除这些内容

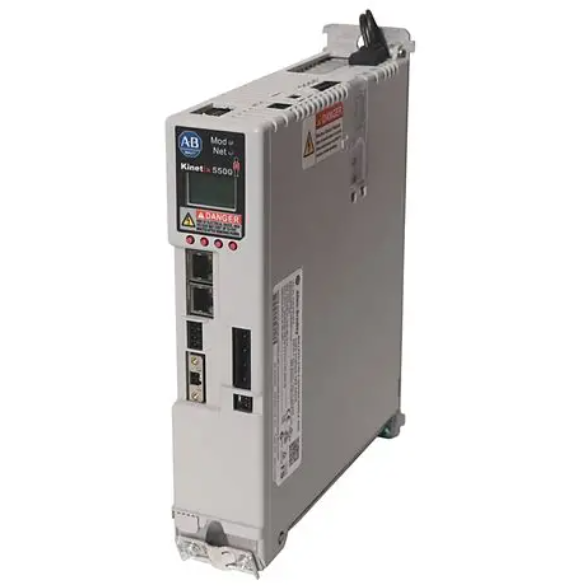

2198-H025-ERS 运动和位置控制驱动器 以太网 I/P 伺服驱动器

【英文介绍】

Allen-Bradley 2198-H025-ERS is a motion and position control drive that is part of the 2198 product announcement. The product is a Kinetix 5500 Ethernet I/P servo drive with modern control and connectivity capabilities. The driver is compatible with the Studio 5000 Design environment for the integrated architecture. Using an integrated architecture and integrated dual Ethernet communication interface, the 2198-H025-ERS can be fully integrated into CompactLogix, ControlLogix, and GuardLogix controller platforms. Integrating this Kinetix drive into these controllers provides access to the drive parameters through additional instructions and configuration files.

The 2198-H025-ERS operates in a voltage range of 195-264V rms, three phases and a nominal value of 240V. It is also compatible with 324-528V rms, 3-phase and 480VAC nominal voltage levels. It offers 8.0A continuous output current (rms), 11.3A peak output current and 4.0KV@195-264V rms (three-phase) and 8.3kV@324-528V rms (three-phase) outputs.

For branch circuit protection, Allen-Bradley recommends protection such as fuses and circuit breakers. For 2198-H025-ERS, suitable fuses are KTK-R-20 Bussman fuses and Plastic-case CB 140U-D6D3-C20 (if used for UL applications). For non-UL applications, the recommended DIN gG fuse is 20 A and the moulded case breaker is 140U-D6D3-C20. The inverter can also be installed in shared DC or common bus inverter systems, shared AC inverter systems, and shared AC/DC and hybrid systems.

This Bulletin 2198 module is a three-phase module with two (2) frame sizes, 11.3A 0 packets of continuous output current and a nominal drive voltage of 240 to 480 volts with an input voltage range of 324 to 528 volts RMS. It has dual-port connectivity and can use additional CompactLogix, GuardLogix, or ControlLogix programmable controllers to support linear, ring, or star Ethernet topologies. 2198-H025-ERS servo driver with hardwired safe torque off or STO function. This allows the inverter power transistor to be safely turned off as a response to a digital input. It supports the cascading of parallel input terminals to adjacent drivers. To connect external devices and hard-wired secure connections from one drive to another, STO connectors are used. However, not all applications require this security feature. In this case, a jumper must be installed to bypass the STO feature. The 2198-H025-ERS module comes with installation instructions, connector kit for motor feedback, connector plug for shter power /RC connection and connector for safe torque Off (STO), 24 volt control input power supply (CP), digital input (IOD), power input power supply (IPD), Motor brake (BC), and motor power supply. The 2198-H025-ERS is designed for both grounded and ungrounded power supply Settings. By default, the ground screw is installed in the grounding configuration. Remove these when operating in ungrounded, corner grounded, and impedance grounded environments

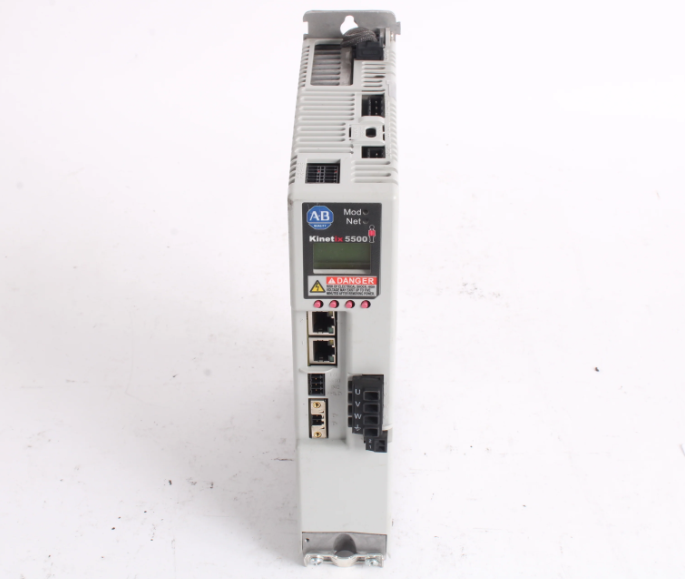

2198-H025-ERS 运动和位置控制驱动器 以太网 I/P 伺服驱动器
