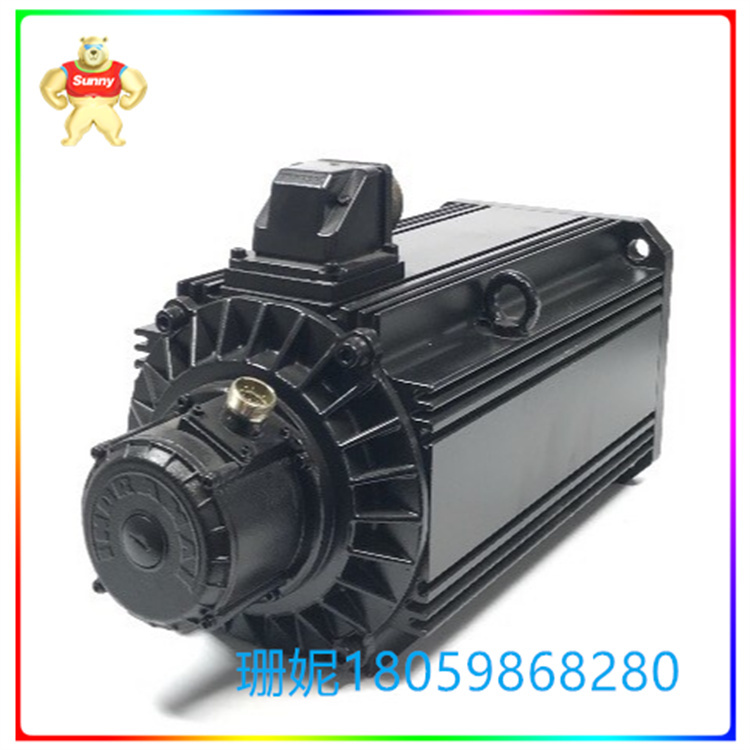

☆型号：MDD112C-N-030-N2L-130GA0 智能数字驱动控制器
【产品详情】
MDD065
标称电机速度：4000min-1,6000 min-1…
连续扭矩：1.8Nm，1.5Nm，2.1 Nm，2.7 Nm…
连续电流：1.8A，3.5A，5.5 A，6.3 A…
峰值电流：8.1A，15.9 A，24.6A，28.5A…
环境温度：0…45℃
储存温度：-20…80℃
防护等级：IP65
MDD112
标称电机速度：1500min-1，2000 min-1,3000 min-1…
连续扭矩：10.5Nm，17.5Nm，28.0 Nm，38.0 Nm…
连续电流：8.3A，14.0A，22.2 A,29.7 A…
峰值电流：26.7 A，55.3 A，82.6A，110.5A…
环境温度：0…45℃
储存温度：-20…80℃
防护等级:IP65
连同INDRAMAT智能数字驱动控制器，MDD系列数字式交流伺服电机创造了高性价比和快速反映的自动化系统。驱动器与电机的组合特别适合于机床、纺织、印刷包装机械以及机器人、搬运设备和传输设备使用。MDD电机在高进给率的条件下，能够确保高度轮廓，特别是在高转速范围时的切割应用。
由于它们的细长结构和非常高的功率密度，以下数字式交流伺服电机用于拧紧应用，辅助轴和换刀装置：MDD 021、MDD 025、MDD 041；用于高动态应用，例如辊馈送加压、冲压和步冲机以及换刀装置，以下的交流伺服电机因为它们非常高的功率密度而被特别使用：MDD 065、MDD 071、MDD 093、MDD 115；对于需要同步程度（如磨床）的高精度应用，下面的电机特别适合：MDD 090、MDD 112
☆型号：MDD112C-N-030-N2L-130GA0 智能数字驱动控制器
【英文介绍】
MDD065
Nominal motor speed: 4000min-1,6000 min-1...
Continuous torque: 1.8Nm, 1.5Nm, 2.1Nm, 2.7Nm...
Continuous current: 1.8A, 3.5A, 5.5A, 6.3A...
Peak current: 8.1A, 15.9A, 24.6A, 28.5A...
Ambient temperature: 0... 45 ℃
Storage temperature: -20... 80 ℃
Protection class: IP65
MDD112
Nominal motor speed: 1500min-1, 2000 min-1,3000 min-1...
Continuous torque: 10.5Nm, 17.5Nm, 28.0Nm, 38.0Nm...
Continuous current: 8.3A, 14.0A, 22.2A, 29.7A...
Peak current: 26.7A, 55.3A, 82.6A, 110.5A...
Ambient temperature: 0... 45 ℃
Storage temperature: -20... 80 ℃
Protection class :IP65
Together with the INDRAMAT intelligent digital drive controller, the MDD series digital AC servo motors create cost-effective and responsive automation systems. The combination of driver and motor is particularly suitable for machine tools, textile, printing and packaging machinery, as well as robots, handling equipment and transmission equipment. MDD motors ensure a high profile at high feed rates, especially for cutting applications in the high speed range.
Due to their slender construction and very high power density, the following digital AC servomotors are used for tightening applications, auxiliary shafts and tool changers: MDD 021, MDD 025, MDD 041; For highly dynamic applications, such as roller feed pressurizing, stamping and stepping machines, and tool changers, the following AC servo motors are particularly used because of their very high power density: MDD 065, MDD 071, MDD 093, MDD 115; For high-precision applications that require a degree of synchronization, such as grinders, the following motors are particularly suitable: MDD 090, MDD 112
