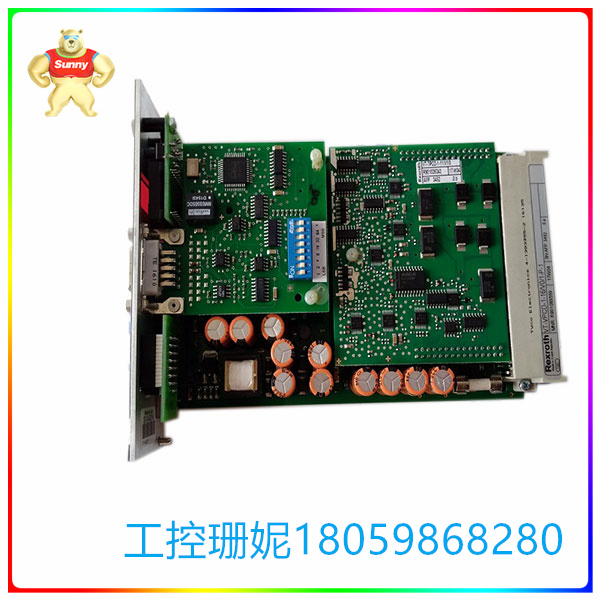

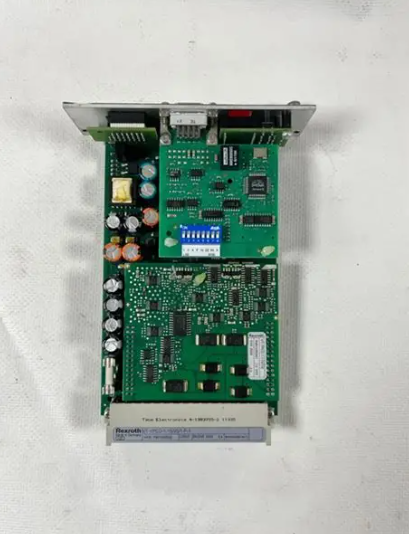

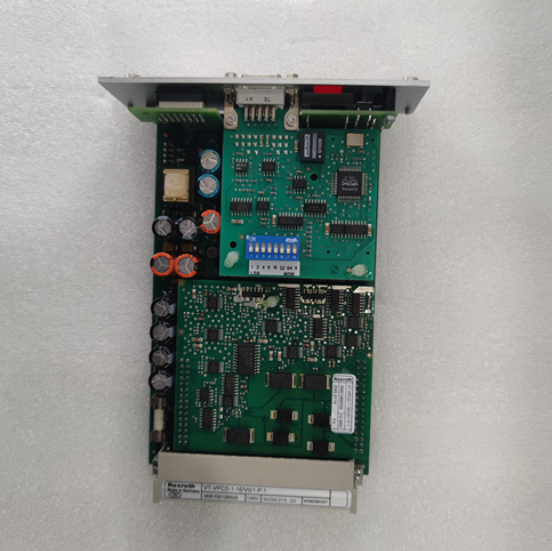

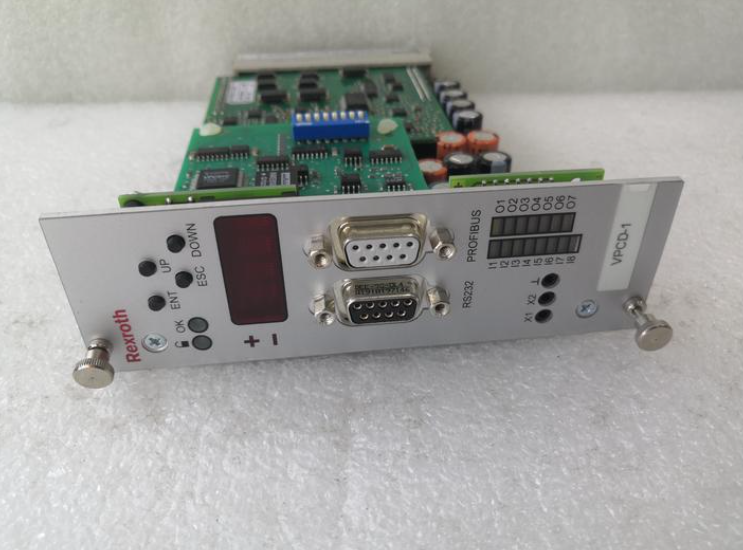

VT-VPCD-1-16/V0/1-0-1 电子信号放大器 柱塞泵放大板

☆型号：VT-VPCD-1-16/V0/1-0-1 电子信号放大器 柱塞泵放大板

【产品详情】

产品详情：VT-VPCD-1-16/V0/1-0-1 电子信号放大器

VT-VPCD-1-1X/V0/1-0-1电子信号放大器

功能

放大及滤波

前级仪表放大器的输出经缓冲进入次级放大器，该级为可编程增益放大器PGA，放大后的信号经滤波处理具有较平坦的频响特性，滤波器为8阶低通滤波器，其可程控设置截止频率从10Hz到100KHz，次级滤波为二阶有源低通滤波，用于消除数字干扰，低通滤波的次级可选加带通滤波器，其下限截止频率采用拔动开关设定，低通和带通滤波器可通过程控接入或跳过。

力士乐液压泵系列的服务范围几乎涵盖了制造业和技术应用领域中每一个行业，如铁路工程、化工加工厂、动力和环境工程、自动化工程、塑料加工机械、造纸行业、压力机、试验台和仿真系统、海洋/近海工程、特殊项目、土木/水利工程、运输技术和机床。

为了全面了解这些应用领域，并与客户保持紧密合作，我们的工程师在控制技术方面对电液控制进行了独特的创新。这成就了我们的液压泵更精准、更可信、更可靠。

☆型号：VT-VPCD-1-16/V0/1-0-1 电子信号放大器 柱塞泵放大板

【英文介绍】

Product details: VT-VPCD-1-16/V0/1-0-1 electronic signal amplifier

VT-VPCD-1-1X/V0/1-0-1 electronic signal amplifier

Feature

Amplification and filtering

The output of the pre-stage instrument amplifier is buffered into the secondary amplifier, which is a programmable gain amplifier PGA. The amplified signal is filtered and has relatively flat frequency response characteristics. The filter is an 8-order low-pass filter, which can be programmed to set the cut-off frequency from 10Hz to 100KHz. The secondary filter is a second-order active low-pass filter, which is used to eliminate digital interference. The lower limit cutoff frequency is set by a pull switch, and the low pass and band pass filters can be accessed or skipped by program control.

The Rexroth hydraulic pump range of services covers almost every industry in the manufacturing and technology application field, such as railway engineering, chemical processing plants, power and environmental engineering, automation engineering, plastic processing machinery, paper industry, presses, test stands and simulation systems, Marine/offshore engineering, special projects, civil/hydraulic engineering, transport technology and machine tools.

In order to fully understand these application areas and to maintain close cooperation with our customers, our engineers have made unique innovations in control technology for electro-hydraulic control. This makes our hydraulic pumps more accurate, more reliable and more reliable.

☆型号：VT-VPCD-1-16/V0/1-0-1 电子信号放大器 柱塞泵放大板
