【产品详情】

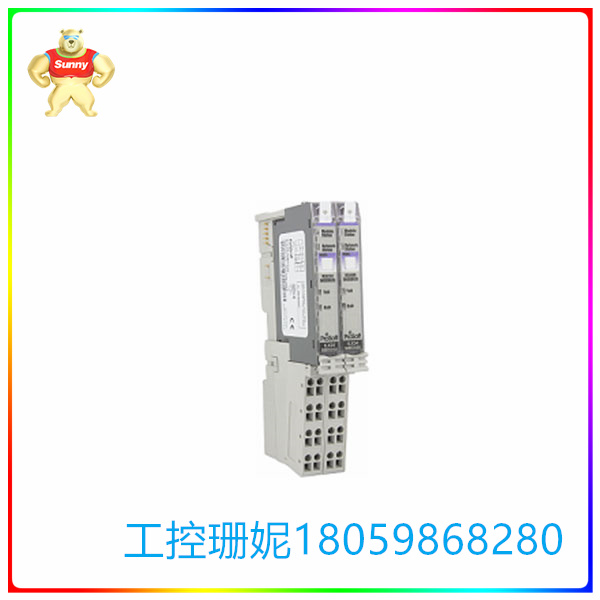

ILX34-MBS485是由ProSoft Technology制造的串行通信模块。该模块可与CompactLogix L1控制器兼容使用，也可安装到任何1734点I/O组件上。该模块提供本地和远程串行连接，并提供RS232 / RS422 / RS485接口。

ILX34-MBS485特别是作为主设备或从设备的CompactLogix L1组件。它允许使用该模块的CompactLogix PLC与监控和数据采集(SCADA)、人机界面(HMI)系统以及条形码阅读器、功率计和智能电子设备(IED)、变频驱动器、软启动器和其他类似设备进行通信。

ILX34-MBS485使用RSLogix 5000和Studio 5000 Logix designer进行配置。具体来说，当与CompactLogix L1一起使用时，使用Studio 5000进行配置，而RSLogix 5000则在使用Point I/O进行配置时使用。合适的软件版本为Studio 5000 V21或更高版本以及RSLogix版本16或更高版本。它使用专用的Add On指令(AOI)编程，可自动创建UDT，为I/O、状态和控制数据提供逻辑I/O定义。

ILX34-MBS485是一款Modbus串行模块，专门与1734点I/O系统的CompactLogix L1控制器兼容。该模块带有1个串行RS232全双工输入，支持RS232 / RS422 / RS485通信标准。它由10 – 28.8 VDC的外部电源供电，宽度单翼缝，允许使用该模块的CompactLogix PLC与监控和数据采集(SCADA)、人机界面(HMI)系统以及条形码阅读器、功率计和智能电子设备(IED)、变频驱动器、软启动器和其他类似设备进行通信。

该模块具有以下特点：

硬件组态：在Studio 5000软件中新建1个工程，进行硬件组态。增加ILX34-MBS485模块，即Other类型中的1734-Moudle。点击确定，弹出模块设置对话框，进行参数设置。连接参数取决于你目前正在使用的应用程序，该模块允许3种不同大小的数据块。 “通讯格式”选择“数据-SINT”格式，“槽号”选择在机架中实际的插放位置。“请求信息包间隔（RPI）”值建议大于50ms，后点击“应用”“确认”。

导入厂商提供的AOI：在“Main Routine”中添加梯级，右键梯级，导入梯级，导航到 .L5X 文件位置。

☆型号：ILX34-MBS485 串行通信模块 其他类似设备进行通信

【英文介绍】

ILX34-MBS485 is a serial communication module manufactured by ProSoft Technology. The module is compatible with the CompactLogix L1 controller and can be installed on any 1734 point I/O component. The module provides local and remote serial connectivity and provides an RS232 / RS422 / RS485 interface.

ILX34-MBS485 in particular CompactLogix L1 components used as master or slave devices. It allows CompactLogix PLCS using the module to communicate with supervisory Control and data acquisition (SCADA), human machine interface (HMI) systems, as well as bar code readers, power meters and smart electronics (IEDs), variable frequency drives, soft initiators and other similar devices.

The ILX34-MBS485 is configured using RSLogix 5000 and Studio 5000 Logix designer. Specifically, when used with CompactLogix L1, the Studio 5000 is used for configuration, while the RSLogix 5000 is used for configuration with Point I/O. Suitable software versions are Studio 5000 V21 or later and RSLogix version 16 or later. It uses dedicated Add On Instruction (AOI) programming to automatically create UDTs that provide logical I/O definitions for I/O, status, and control data.

The ILX34-MBS485 is a Modbus serial module specifically compatible with the CompactLogix L1 controller for 1734 point I/O systems. The module comes with a serial RS232 full duplex input and supports RS232 / RS422 / RS485 communication standards. It is powered by an external power supply of 10-28.8 VDC, width single slot, CompactLogix PLCS using the module are allowed to communicate with supervisory control and data acquisition (SCADA), human machine interface (HMI) systems as well as bar code readers, power meters and smart electronics (IEDs), variable frequency drives, soft starters and other similar devices.

The module has the following features:

Hardware configuration: Create a new project in Studio 5000 software for hardware configuration. Added ILX34-MBS485 module, which is 1734-Moudle in Other type. Click OK, and the module setting dialog box will pop up to set parameters. The connection parameters depend on the application you are currently using, and the module allows 3 different sizes of data blocks. Set Communication Format to Data-SINt format, and Slot ID to the actual slot position in the rack. It is recommended that the Request Packet Interval (RPI) value be greater than 50ms, and then click Apply and Confirm.

Import the AOI provided by the vendor: Add a cascade in "Main Routine", right-click the cascade, import the cascade, and navigate to the.l5x file location.
