0-57408-B DCS处理器模块

【产品详情】

0-57408-B单元是由信实电气设计和生产的用于AutoMax系列可编程控制器的DCS处理器模块。

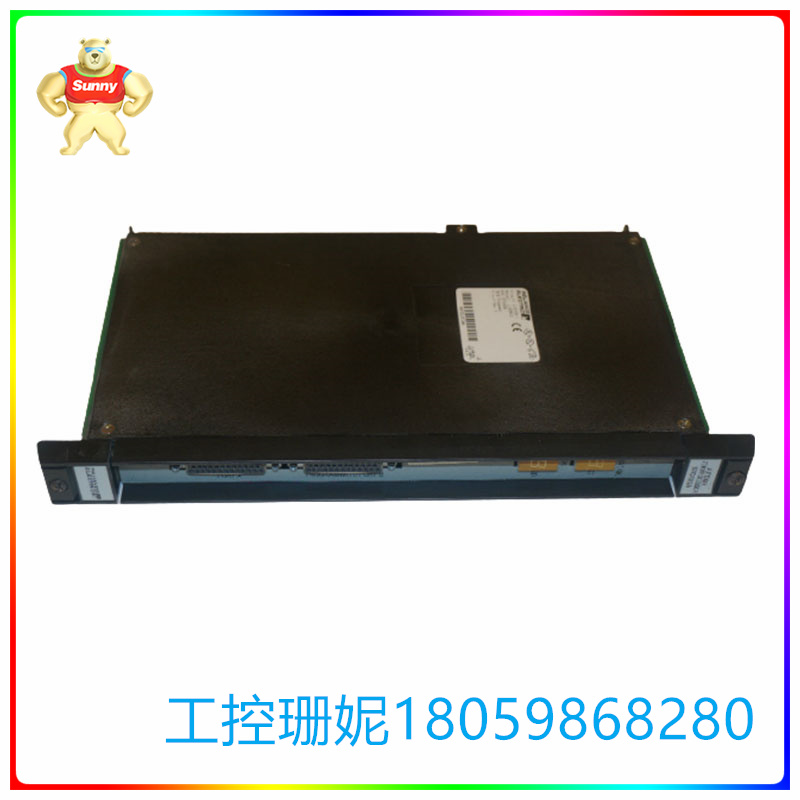

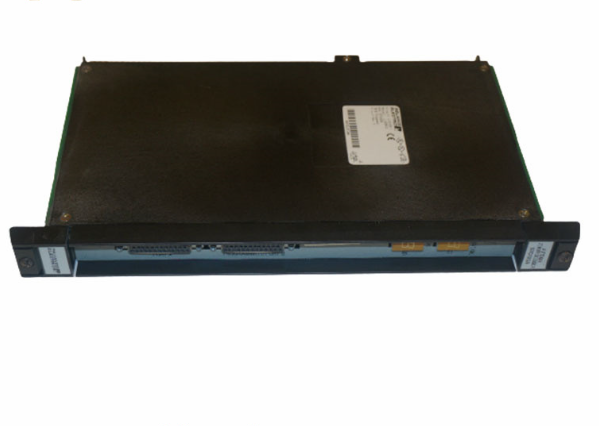

0-57408-B处理器模块的面板上只有几个组件。在面板的最顶部，您会发现两个黄色按钮。这些按钮在其正上方标有黑色文本“FAULT CODE”。顶部的黄色按钮标记为“1ST”，而底部的按钮标记为“2ND”。在这两个黄色故障代码按钮之间，有一个绿色的小指示灯，其右侧直接标有“OK”。

沿着面板再往下，有两个母并行端口。顶部的端口标记为“PROGRAMMER”端口，而底部的端口标记为“LOCAL COMM”端口。有许多螺钉位于易于安装的地方。有关具体的安装指南，请参阅原始制造商的手册。

0-57408-B DCS处理器模块

【英文介绍】

Unit 0-57408-B is a DCS processor module for AutoMax series programmable controllers designed and produced by Reliance Electric.

The 0-57408-B processor module has only a few components on the panel. At the very top of the panel, you will find two yellow buttons. These buttons are marked with "FAULT CODE" in black text right above them. The yellow button at the top is labeled "1ST" and the button at the bottom is labeled "2ND." In between these two yellow fault code buttons, there is a small green indicator light directly labeled "OK" to the right.

Further down the panel, there are two female parallel ports. The top port is labeled as the "PROGRAMMER" port, while the bottom port is labeled as the "LOCAL COMM" port. There are many screws located where they are easy to install. Refer to the original manufacturer's manual for specific installation instructions.

0-57408-B DCS处理器模块
