45C922 电源模块 输入电流为 600 mA

【产品详情】

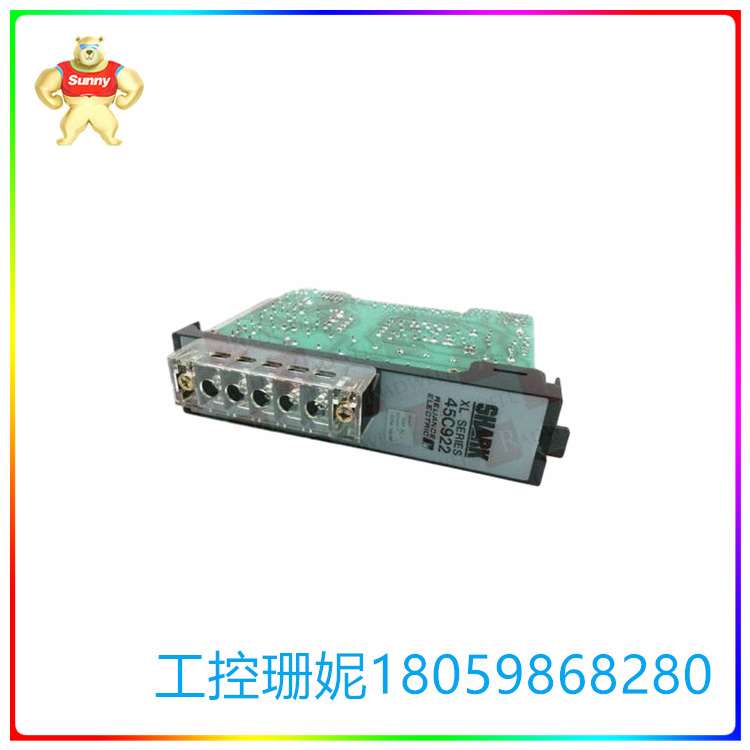

45C922 器件是 Reliance Electric 为 Shark XL 系列创建的电源模块。虽然 45C922 电源模块已停产，但我们可能仍有库存。为方便起见，我们在网站上列出了所有产品的当前可用性，包括 45C922 电源模块的可用性。

45C922 电源模块只是插入 Shark XL 机架内部的三种不同电源模块之一。另外两个电源模块使用型号 45C920 和 45C921。

45C922 电源模块的输入电压可通过跳线选择为 115 VAC 或 230 VAC，输入电流为 600 mA 或更低，输入频率为 47 至 63 Hz。

机架中模块的功耗不得高于45C922电源模块的最大负载电流。在安装 45C922 电源模块之前，最好检查放置在机架中的所有 I/O 模块的电源要求，以确保总电流不高于 45C922 电源模块三个通道的最大负载电流。第一个通道在 1700 mA 时的最大负载电流为 5 VDC，第二个通道在 500 mA 时的最大负载电流为 24 VDC，第三个通道在 250 mA 时的最大负载电流为 24 VDC。

45C922 电源模块 输入电流为 600 mA

【英文介绍】

The 45C922 device is a power module created by Reliance Electric for the Shark XL series. Although the 45C922 PSU has been discontinued, we may still have it in stock. For convenience, we have listed the current availability of all products on our website, including the availability of the 45C922 power module.

The 45C922 power module is just one of three different power modules that are plugged into the Shark XL rack. The other two power modules use models 45C920 and 45C921.

The input voltage of the 45C922 PSU can be selected by jumper to 115 VAC or 230 VAC, input current to 600 mA or lower, and input frequency to 47 to 63 Hz.

The power consumption of the modules in the rack cannot be higher than the maximum load current of the 45C922 PSU. Before installing a 45C922 PSU, it is best to check the power requirements of all I/O modules placed in the rack to ensure that the total current is not higher than the maximum load current of the three channels of the 45C922 PSU. The first channel has a maximum load current of 5 VDC at 1700 mA, the second channel has a maximum load current of 24 VDC at 500 mA, and the third channel has a maximum load current of 24 VDC at 250 mA.

45C922 电源模块 输入电流为 600 mA
