Reliance Electric 45C910 机架被归类为三插槽机架

【产品详情】

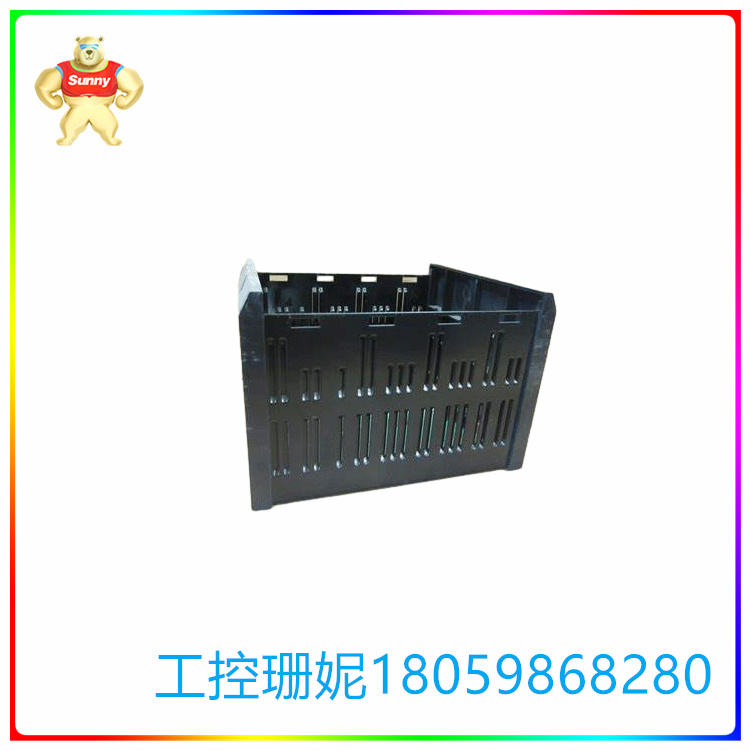

45C910模块是Reliance Electric公司负责为市场做出贡献的机架。45C910 机架是为 Shark XL 系列制造的，该系列也是由 Reliance Electric 创建的。

45C910 机架被归类为三插槽机架，尽管它总共有四个插槽。 其中一个插槽用于 Shark XL 电源模块。其他三个插槽用于 Shark XL 处理器和 I/O 模块。

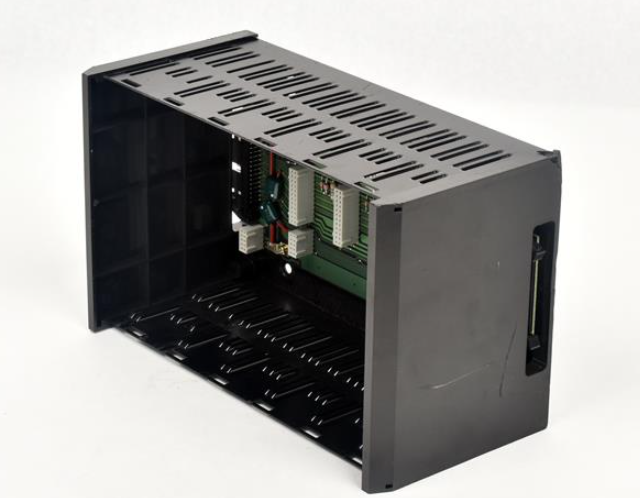

45C910机架的内部仅由几个组件组成。背板连接器相当于机架配备的插槽数量。45C910机架顶部还有两个小安装孔，方便安装。在 45C910 机架和所有其他 Shark XL 机架的侧面，您将能够找到一个扩展机架连接器。通过使用该部件，您将能够将 45C910 机架与其他 Shark XL 机架连接起来，以扩展您在任何给定时间可以容纳的 Shark XL 模块的数量。

安装 45C910 机架时，请确保不要将机架安装在阳光直射或热源位于其下方的任何地方。此外，机架与任何超过 3000 V 的线路之间应至少留出 8 英寸的距离，并且有足够的空间远离任何过度冲击或振动源。

Reliance Electric 45C910 机架被归类为三插槽机架

【英文介绍】

The 45C910 module is the rack that Reliance Electric is responsible for contributing to the market. The 45C910 rack is manufactured for the Shark XL series, which was also created by Reliance Electric.

The 45C910 rack is classified as a three-slot rack, although it has a total of four slots. One of the slots is for the Shark XL power module. The other three slots are for the Shark XL processor and the I/O module.

The interior of the 45C910 rack consists of only a few components. The backplane connector corresponds to the number of slots available in the rack. The 45C910 also has two small mounting holes at the top of the rack for easy installation. On the side of the 45C910 rack and all other Shark XL racks, you will be able to find an extension rack connector. By using this part, you will be able to connect the 45C910 rack with other Shark XL racks to expand the number of Shark XL modules you can accommodate at any given time.

When installing the 45C910 rack, be sure not to install the rack in direct sunlight or anywhere where a heat source is located below it. In addition, a minimum of 8 inches should be left between the rack and any line exceeding 3000 V, with sufficient space away from any excessive shock or vibration sources.

Reliance Electric 45C910 机架被归类为三插槽机架
