Reliance Electric 45C900 处理器模块 面板上还有一个连接器

【产品详情】

45C900 是由 Reliance Electric 制造的 Shark XL 系列处理器。Baldor Reliance和ABB也有可能出售该处理器。这个模块是 Reliance 传统系列的一部分，可能有点难找。

45C900 是没有内存模块选项的处理器模块。有两个内存模块可以单独购买，以允许定制处理器卡。这些内存模块是 45C977 或 45C975。45C977 为处理器提供 2K 字的 EEPROM 存储器。45C975存储器模块是具有1K字的EEPROM存储器。这是一款不带电池的非易失性存储器。此卡具有以下电源要求：24VDC 和 115/230 VAC（50/60 Hz）。

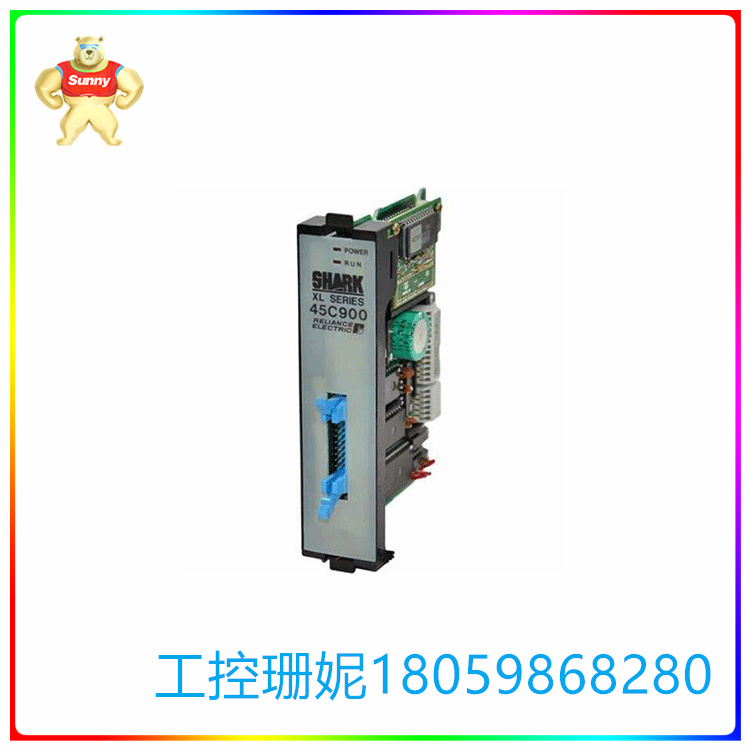

45C900 的面板上有两个 LED 指示灯。它们被标记为 power 和 run。面板上还有一个连接器。此处理器不包含在保护性机箱或机箱中。该模块只能在湿度范围为 20-90% 非冷凝且温度范围在 0 至 +55% 摄氏度之间的环境中使用。

45C900 可以安装到 Shark XL 系列卡架上，该卡架具有 3-9 个插槽。使用具有更多卡槽的机架将允许将来的系统扩展。处理器将仅占用机架上的一个插槽。可为此机架设置选择的电源不占用机架上的插槽。

Reliance Electric 45C900 处理器模块 面板上还有一个连接器

【英文介绍】

The 45C900 is a Shark XL series processor manufactured by Reliance Electric. Baldor Reliance and ABB are also likely to sell the processor. This module is part of Reliance's heritage series and can be a bit hard to find.

The 45C900 is a processor module with no memory module option. There are two memory modules that can be purchased separately to allow for custom processor cards. These memory modules are 45C977 or 45C975. The 45C977 provides 2K word EEPROM memory for the processor. The 45C975 memory module is an EEPROM memory with 1K words. This is a non-volatile memory with no battery. The card has the following power requirements: 24VDC and 115/230 VAC (50/60 Hz).

The 45C900 has two LED indicators on its panel. They are labeled power and run. There is also a connector on the panel. This processor is not included in a protective case or chassis. The module can only be used in environments where the humidity range is 20-90% non-condensing and the temperature range is between 0 and +55% degrees Celsius.

The 45C900 can be installed into the Shark XL Series card holder, which has 3-9 slots. Using a rack with more card slots will allow future system expansion. The processor will occupy only one slot on the rack. The power supply that can be selected for this rack setup does not occupy slots on the rack.
