Reliance Electric  45C766 隔离式 10A 继电器输出

【产品详情】

45C766 装置是 Reliance Electric 为 Shark XL 产品线分销的隔离继电器输出模块。该部件也由霍纳电气使用型号 HE45C-RLY 制造。尽管它是由两家不同的公司生产的，但他们仍然使用非常相似的组件制造产品以执行相同的功能。您可以通过使用我们的网站或向我们发送电子邮件或拨打我们的电话号码来了解该产品是否有库存。

45C766隔离继电器输出模块是一个小型设备，由面板和后面的电路板组成。45C766 隔离继电器输出模块的前部包含一个长端子排，覆盖了面板的大部分。该端子排由两排九个端子组成，总共有十八个端子。这些终端中的每一个都贴有标签，以便操作员确切地知道它的用途。

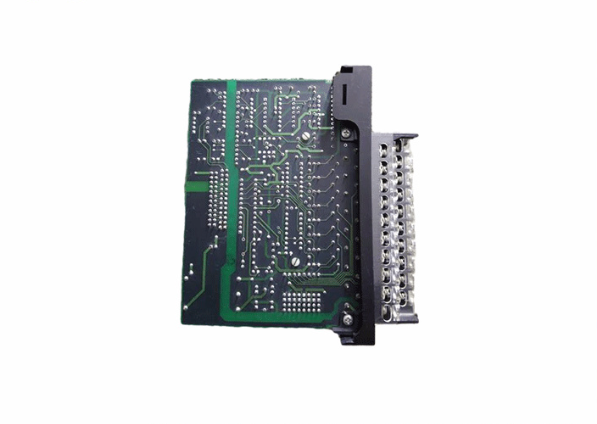

45C766隔离式继电器输出模块的印刷电路板组件上有许多不同种类的电气部件。电路板左上角共有 8 个接触器。这些接触器中的每一个都有一个二极管和一个与之相关的保险丝。印刷电路板的其余部分由更小的组件组成.例如，不同的地方有四个集成电路和几个不同形状和大小的电容器。还有五个电阻网络阵列，它们连接了多个电阻器。

Reliance Electric  45C766 隔离式 10A 继电器输出

【英文介绍】

The 45C766 device is an isolation relay output module distributed by Reliance Electric for the Shark XL product line. This part is also manufactured by Horner Electric using model HE45C-RLY. Although it is produced by two different companies, they still make products using very similar components to perform the same functions. You can find out if the product is in stock by using our website or by sending us an email or calling our phone number.

The 45C766 isolation relay output module is a small device consisting of a panel and a circuit board behind it. The front of the 45C766 isolation relay output module contains a long terminal block that covers most of the panel. The terminal block consists of two rows of nine terminals, for a total of eighteen terminals. Each of these terminals is labeled so that the operator knows exactly what it is used for.

The 45C766 isolated relay output module has many different kinds of electrical components on the printed circuit board assembly. There are eight contactors in the top left corner of the circuit board. Each of these contactors has a diode and a fuse associated with it. The rest of the printed circuit board is made up of smaller components. For example, there are four integrated circuits and several capacitors of different shapes and sizes in different places. There are also five resistor network arrays, which connect multiple resistors.

Reliance Electric  45C766 隔离式 10A 继电器输出
