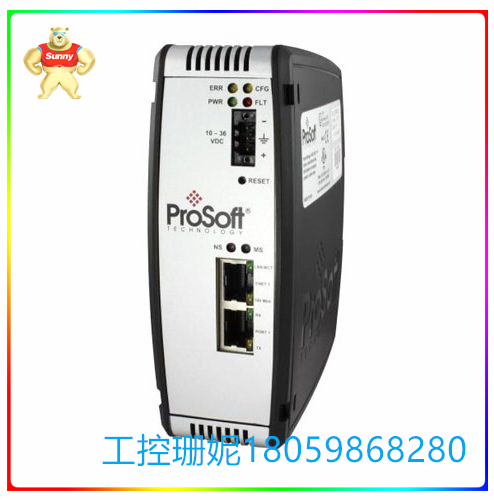

PLX31-EIP-ASCII4 转 ASCII 4 端口 四端口通信网关

☆型号：PLX31-EIP-ASCII4 转 ASCII 4 端口 四端口通信网关

【产品详情】

EtherNet/IP 转 ASCII 4 端口

PLX31-EIP-ASCII4型

ProSoft Technology 的 EtherNet/IP 转 ASCII 四端口通信网关允许在支持 EtherNet/IP™™ 的 PAC 和 ASCII 设备（如电子秤和条形码阅读器）之间进行高速双向数据传输。EtherNet/IP™ 协议驱动程序支持显式消息传递实现。网关可作为客户端和服务器进行用户配置。

EtherNet/IP™ PAC 包括罗克韦尔自动化® ControlLogix 和 CompactLogix®™，以及多个施耐德电气®控制器。该模块的应用适用于大多数行业，尤其是制造业、石油和天然气、电力和食品加工。

该网关具有多种功能，可简化集成、缩短调试时间并优化性能

特点和优势

数据优先级：多个 I/O 连接允许您为状态和/或控制数据设置 RPI，从而优化以太网带宽。

包括嵌入式 EDS 附加配置文件，可简化集成并缩短调试时间。

包括一个 SD 卡插槽（SD 卡可选），用于存储配置文件。这可用于灾难恢复。

ProSoft Discovery Service：此实用程序允许您的 PC 查看网关并更改其默认 IP 地址，而无需在同一子网上。

通过模块开关（v1.04 及更高版本）进行安全模块配置。

多达 10,000 个 16 位寄存器可用于交换大量数据

☆型号：PLX31-EIP-ASCII4 转 ASCII 4 端口 四端口通信网关

【英文介绍】

EtherNet/IP to ASCII 4 port

Type PLX31-EIP-ASCII4

ProSoft Technology's EtherNet/IP to ASCII four-port communication gateway allows high-speed bidirectional data transfer between EtherNet/IP™ -enabled PACs and ASCII devices such as electronic scales and bar code readers. The EtherNet/IP™ protocol driver supports an explicit messaging implementation. The gateway can be configured as a client and server.

EtherNet/IP™ PACs include Rockwell Automation ® ControlLogix and CompactLogix®, as well as multiple Schneider Electric ® controllers. The applications of this module are suitable for most industries, especially manufacturing, oil and gas, power and food processing.

The gateway has multiple features that simplify integration, reduce debugging time, and optimize performance

Characteristics and advantages

Data priority: Multiple I/O connections allow you to optimize Ethernet bandwidth by setting RPI for status and/or control data.

Includes embedded EDS add-on profiles to simplify integration and reduce debugging time.

Includes an SD card slot (SD card optional) for storing configuration files. This can be used for disaster recovery.

ProSoft Discovery Service: This utility allows your PC to view the gateway and change its default IP address without having to be on the same subnet.

Security module configuration via module switch (v1.04 and later).

Up to 10,000 16-bit registers can be used to exchange large amounts of data
