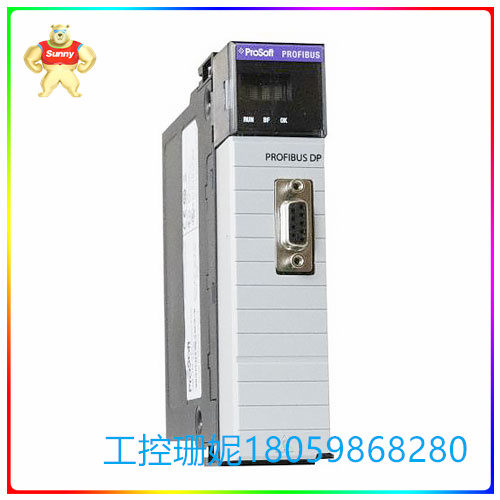

ILX56-PBM 主站/多站模块 循环I/O数据

【产品详情】

ILX56-PBM PROFIBUS DPV1 主站/多站模块允许罗克韦尔自动化® ControlLogix® 处理器使用 PROFIBUS DP 协议与各种 PLC 和设备进行通信。作为PROFIBUS DP主站，该模块可以与网络上的各种从站设备传输高达5000字节的循环I/O数据。

或者，您可以将该模块用作PROFIBUS DP多从站，其中该模块可以模拟PROFIBUS DP网络上多达10个单独的节点，从而实现更多的循环I/O数据传输。

借助 ILX56-PBM 模块，ControlLogix® 处理器可以轻松地与支持 PROFIBUS DPV0 和 DPV1 协议的设备进行通信。通过高级集成工具（如自定义附加配置文件、特定于项目的附加例程）和高级工具（如 PROFIBUS DP 数据包捕获实用程序），您可以最大限度地减少在 ControlLogix® 环境中配置 PROFIBUS DP 网络所需的时间。

此外，通过使用多个 I/O 连接返回 ControlLogix® 处理器，该模块提供的数据更新速率甚至可以满足最苛刻的应用要求。

特点和优势

AOP 和 AOI：模块通信集成在 Studio/RSLogix™ 5000 中，使用示例附加指令 （AOI） 和自定义配置实用程序创建的附加例程以减少调试时间。

自动扫描：自动扫描功能通过扫描PROFIBUS网络并上传从设备地址和配置信息，缩短了启动时间并简化了故障排除。（自动读取节点并将其映射到模块。

ComDTM：允许与资产管理软件进行远程以太网连接，从而显著降低维护成本。借助这个全面、完全集成的工程和维护环境，您可以在现场总线设备的整个生命周期内对其进行配置、调试、维护和诊断。

SD卡插槽（SD卡可选）用于在发生灾难时存储配置文件。

冗余：两个模块可以与自定义附加例程一起使用，以实现高可用性系统的冗余PROFIBUS DP网络。

ILX56-PBM 主站/多站模块 循环I/O数据

【英文介绍】

The ILX56-PBM PROFIBUS DPV1 master/multi-station module allows Rockwell Automation ® ControlLogix® processors to communicate with a variety of PLCS and devices using the PROFIBUS DP protocol. As a PROFIBUS DP master, the module can transmit up to 5000 bytes of cyclic I/O data with various slave devices on the network.

Alternatively, you can use the module as a PROFIBUS DP multi-slave station, where the module can simulate up to 10 individual nodes on the PROFIBUS DP network, enabling more cyclic I/O data transfer.

With the ILX56-PBM module, ControlLogix® processors can easily communicate with devices that support PROFIBUS DPV0 and DPV1 protocols. With advanced integration tools, such as custom add-on profiles, project-specific add-on routines, and advanced tools, such as the PROFIBUS DP packet capture utility, you can minimize the time required to configure a PROFIBUS DP network in a ControlLogix® environment.

In addition, by using multiple I/O connections to return the ControlLogix® processor, the data update rate provided by the module can meet even the most demanding application requirements.

Characteristics and advantages

AOP and AOI: Module communication is integrated in Studio/RSLogix™ 5000, using Example Additional Instructions (AOI) and additional routines created by custom configuration utilities to reduce debugging time.

Automatic Scanning: Automatic scanning reduces startup time and simplifies troubleshooting by scanning the PROFIBUS network and uploading slave device addresses and configuration information. Automatically reads nodes and maps them to modules.

ComDTM: Allows remote Ethernet connectivity with asset management software, significantly reducing maintenance costs. With this comprehensive, fully integrated engineering and maintenance environment, you can configure, debug, maintain, and diagnose fieldbus devices throughout their life cycle.

SD card slot (SD card optional) is used to store configuration files in the event of a disaster.

Redundancy: Both modules can be used with custom additional routines to implement redundant PROFIBUS DP networks for high availability systems.
