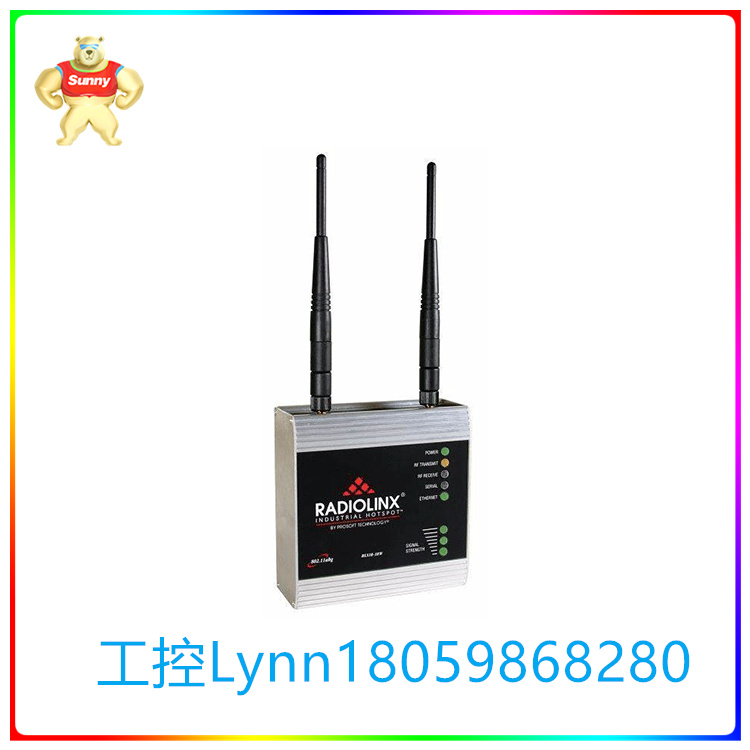

RLXIB-IHW-FRAC 高速  无线以太网无线电，具有PoE和串行封装

【产品详情】

RadioLinx®802.11abg工业热点™(RLXIB-IHW)是一种高速

无线以太网无线电，具有PoE和串行封装。的RLXIB-IHW

运行速度高达54 Mbps，使用IEEE 802.11b/g (2.4 GHz频段)

和802.11a (5 GHz频段)标准。为全球安装而设计

RLXIB-IHW提供了许多工业功能，包括危险位置

认证，IGMP Snooping, OFDM抗噪，中继器模式

网格架构/自修复，OPC服务器诊断，扩展

温度，高振动/冲击和din导轨安装。

特性、优点和规格

符合IEEE 802.11a/b/g♦

♦

♦

开放标准保护无线网络投资

高速(54 Mbps)，低延迟通信

基于无线电的IGMP snooping/查询过滤组播工业以太网最大化

带宽

坚固耐用♦金属外壳，工业工作温度，抗振动和冲击

♦在危险场所和爆炸性环境中使用的认证

(UL1604 1类2 Div, ATEX 2区3类)

♦发射功率和无线电频率可编程用于全球使用

数据和网络安全♦加密强度安全与WPA2 - 802.11i与128位AES加密和

CCM完整性检查

♦限制对已批准的设备MAC id的访问

灵活可靠♦单个无线电可作为接入点、中继器/桥接器和客户端运行

♦具有自愈网络功能的自动网络配置(可优先配置或固定配置)

可靠的大型网络(如SCADA)的主冗余

♦PoE (Power over Ethernet)技术允许无线电设备放置在天线附近，减少天线数量

降低有线成本，提高无线网络性能

串行设备连通性♦对TCP或UDP报文的串行数据的封装/反封装

♦高级特性包括组播和DNS (Domain Name Server)支持

易于配置和监控♦内置web服务器，用于基于浏览器的配置和远程诊断

♦包括基于人机界面的无线网络诊断的OPC服务器

由ProSoft Technology®支持♦工业数据通信专家谁了解您的协议，设备和

应用程序

♦室内/室外无线网络设计辅助-附件选择，路径研究，和

现场调研

♦三年标准保修

RLXIB-IHW-FRAC 高速  无线以太网无线电，具有PoE和串行封装

【英文介绍】

The RadioLinx® 802.11abg Industrial Hotspot™ (RLXIB-IHW) is a high-speed

wireless Ethernet radio, with PoE and Serial Encapsulation. The RLXIB-IHW

operates at speeds up to 54 Mbps, using the IEEE 802.11b/g (2.4 GHz band)

and 802.11a (5 GHz band) standards. Designed for global installations, the

RLXIB-IHW offers many Industrial features including hazardous location

certifications, IGMP Snooping, OFDM for noise immunity, repeater mode for

mesh architecture/self healing, OPC server diagnostics, extended

temperature, high vibration/shock and DIN-rail mounting.

Features Benefits and Specifications

Conforms to IEEE 802.11a/b/g ♦

♦

♦

Open standard protects wireless network investment

High speed (54 Mbps), low latency communications

Radio-based IGMP snooping/querying to filter multicast industrial Ethernet maximizing

    bandwidth

Rugged and Powerful ♦ Metal enclosure, industrial operating temperatures, vibration and shock resistant

♦ Certification approved for use in hazardous locations and explosive atmosphere

(UL1604 Class 1 Div 2, ATEX Zone 2 Category 3)

♦ Transmit power and radio frequencies programmable for use globally

Data and Network Security ♦ Cryptographic strength security with WPA2 - 802.11i with 128 bit AES encryption and

CCM integrity check

♦ Limit access to approved device MAC IDs

Flexible and Reliable ♦ Single radio operates as an access point and repeater/bridge and client

♦ Automatic network configuration (can be prioritized or fixed) with self-healing network

and master redundancy for reliable large networks (e.g., SCADA)

♦ Power over Ethernet (PoE) enables radio placement near antenna to reduce antenna

cable costs and improve wireless network performance

Serial Device Connectivity ♦ Encapsulation / de-encapsulation of serial data to / from TCP or UDP packets

♦ Advanced features include multicast and Domain Name Server (DNS) support

Easy to Configure and Monitor ♦ Built-in web server for browser-based configuration and remote diagnostics

♦ Included OPC Server for HMI-based wireless network diagnostics

Backed by ProSoft Technology® ♦ Industrial data communications experts who understand your protocols, devices, and

applications

♦ Indoor/outdoor radio network design assistance - accessory selection, path studies, and

site survey

♦ Three year standard warranty

RLXIB-IHW-FRAC 高速  无线以太网无线电，具有PoE和串行封装
