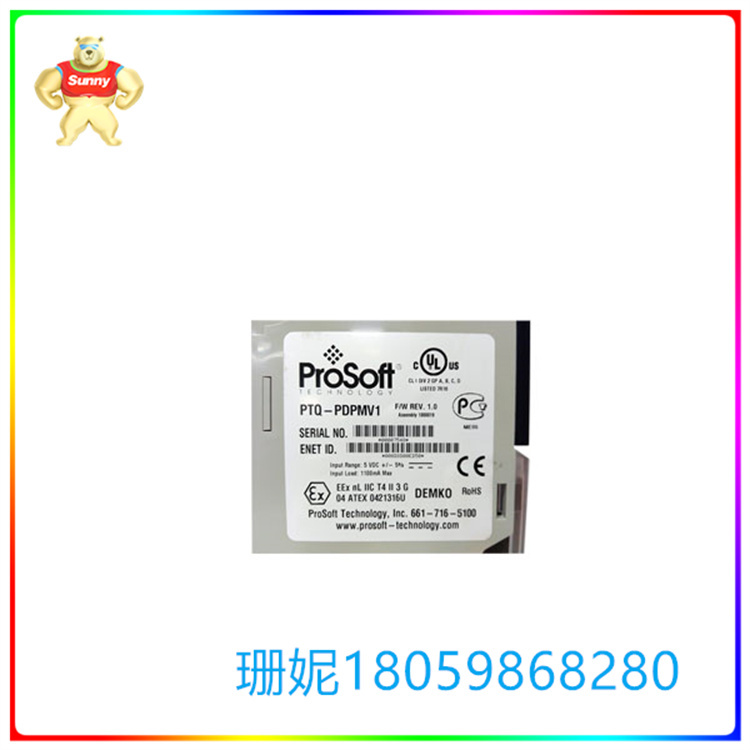

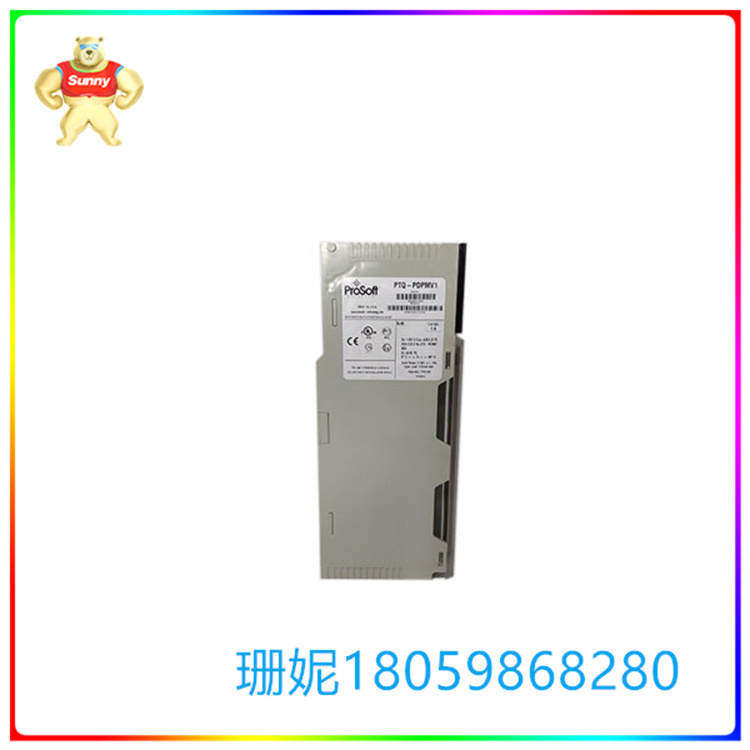

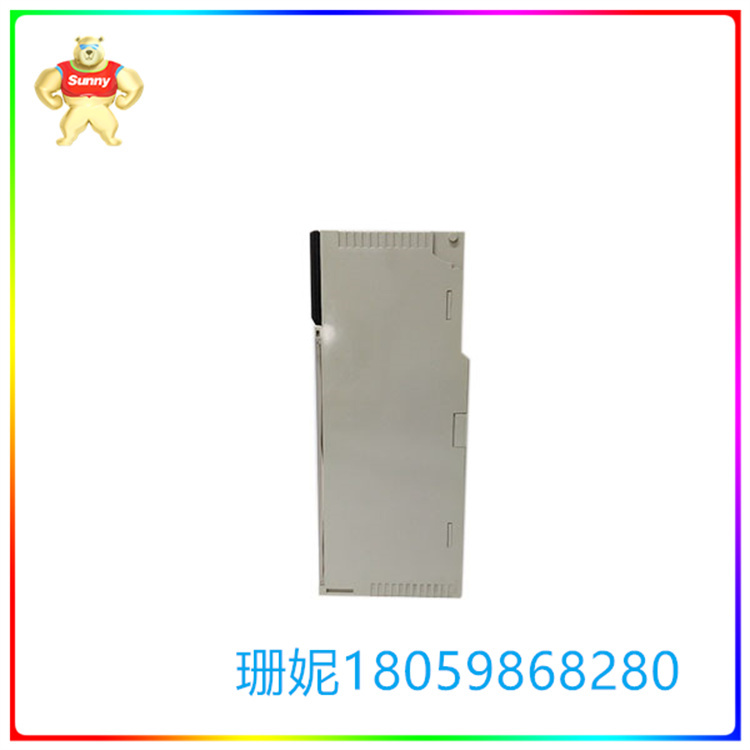

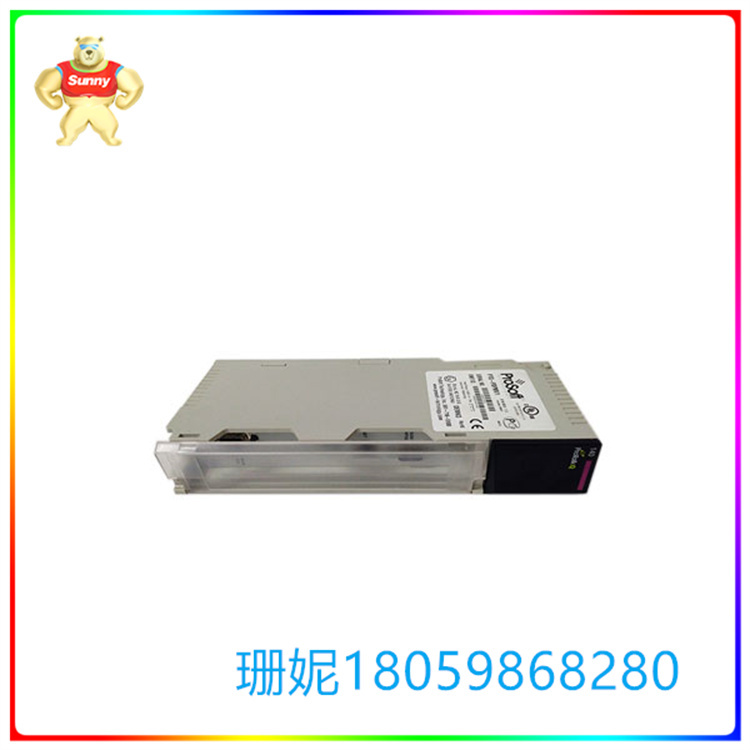

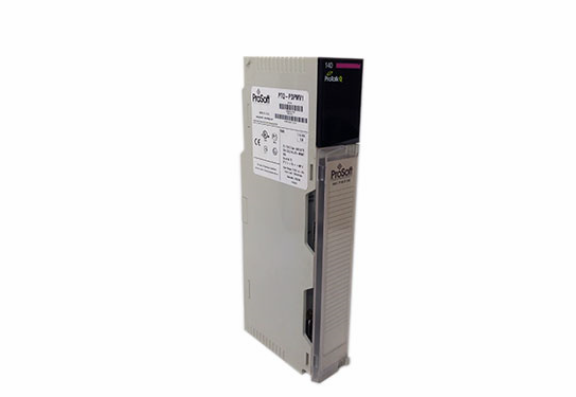

PTQ-PDPMV1 主控模块是一个功能强大的通信接口

【产品详情】

PROFIBUS DPV1主控模块是一个功能强大的通信接口

量子处理器。该模块由施耐德电气授权开发

采用专有背板技术，实现强大的数据交换

与处理器。

该模块支持根据IEC 61158完整的主规范。无环

参数数据可以用1类或2类DPV1服务传输，允许

处理器可以轻松地与支持PROFIBUS DPV0/V1的从设备通信

协议。

该模块作为PROFIBUS网络和总线之间的输入/输出模块

处理器。来自处理器的数据传输与I/O数据传输是异步的

在PROFIBUS网络上。

功能的好处

易于配置和管理♦包括ProSoft配置生成器软件来设计，配置和监控您的

现场总线网络

♦包括PROFIBUS DPV1 Master FDT (Field Device Tool)通信DTM

(PROFIBUS comDTM)软件之间的接口，任何兼容的FDT软件容器，

一个FDT设备DTM，以及适用的PROFIBUS从设备

通过以太网配置PTQ模块和PROFIBUS网络

行业认可♦施耐德电气CAPP(协同自动化合作伙伴计划)批准

PROFIBUS贸易组织(PTO)认证

坚固可靠♦该模块基于西门子ASIC ASPC2 Step E和英飞凌C165微处理器

♦固件支持flash升级

♦符合Unity HEC热备功能规范。

每个机架最多支持6个PTQ-PDPMV1模块(热备时最多支持4个

实现)

♦支持扩展的诊断数据，报警指示和确认处理，多播

及广播电报(DPV1)

由ProSoft Technology®支持

工业数据通信专家，了解您的协议，设备和

应用程序

♦三年标准保修

PTQ-PDPMV1 主控模块是一个功能强大的通信接口

【英文介绍】

The PROFIBUS DPV1 Master module is a powerful communication interface for

Quantum processors.  Developed under license from Schneider Electric, the module

incorporates proprietary backplane technology that enables powerful data exchange

with processors.

The module supports complete Master specifications according to IEC 61158.  Acyclic

parameter data can be transferred with Class 1 or Class 2 DPV1 services, allowing

processors to easily communicate with slave devices supporting PROFIBUS DPV0/V1

protocol.

The module acts as an input/output module between the PROFIBUS network and the

processor.  Data transfer from the processor is asynchronous with the I/O data transfer

on the PROFIBUS network.

Features Benefits

Easy to configure and manage ♦ Includes ProSoft Configuration Builder software to design, configure and monitor your

PROFIBUS network

♦ Includes PROFIBUS DPV1 Master FDT (Field Device Tool) communication DTM

(PROFIBUS comDTM) software to interface between any compliant FDT software container,

an FDT device DTM, and applicable PROFIBUS slave devices

♦ Configure PTQ module and PROFIBUS network over Ethernet

Industry Recognition ♦ Schneider Electric CAPP (Collaborative Automation Partner Program) approved

♦ PROFIBUS Trade Organization (PTO) approved

Rugged and reliable ♦ The module is built on Siemens ASIC ASPC2 Step E with Infineon C165 Microprocessor

♦ The firmware is flash-upgradable

♦ Adheres to the Unity HEC Hot Standby Functional Specifications.

♦ Supports up to six PTQ-PDPMV1 modules per rack (up to four for Hot Standby

implementations)

♦ Supports extended diagnostic data, alarm indications and confirmations handling, Multicast

and Broadcast telegrams (DPV1)

Backed by ProSoft Technology®

♦ Industrial data communications experts who understand your protocols, devices, and

applications

♦ Three year standard warranty
