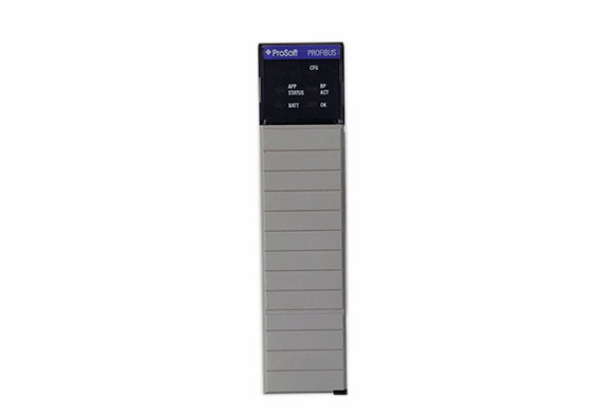

MVI69-PDPMV1 主站通信模块 带CFG端口

【产品详情】

DP-V1系列MVI69-PDPMV1主站通信模块带CFG端口，由Prosoft Technology设计，其子品牌为inRAx。该模块使用 CFG 端口作为其主接口，它具有明亮的 LED 指示灯，用于显示模块状态、电源状态、应用状态、端动和错误状态等操作元素。与此模块一起使用的连接电缆是 RJ45 到 DB-9 M 和 6 英尺 RS-232 电缆。该模块的背板额定电流为 800 mA，最大电压为 5 V DC。电源距离等级为 2，如果与 1746-L43 和 1746-L45 一起使用，则必须在 2 个插槽内。MVI69-PDPMV1 与单插槽 1769 背板兼容，并被处理器识别为输入/输出模块。MVI69-PDPMV1 模块可用于访问处理器的内存，以在处理器和模块之间传输数据。这两个组件之间的数据传输是使用 Ladder Logic 执行的，该模块附带了一个可以使用的示例梯形图文件。MVI69-PDPMV1 模块兼容 CompactLogix 系列的所有处理器，包括 L20/L23/L30/L31/L32/L35、L43 和 L45。此外，该模块还支持大多数 MicroLogix 1500 LRP 控制器。该模块已通过防爆证书（ATEX指令）、CE、CB安全、劳氏船级社、C/UL 1级、2区等标准和批准。使用该模块的环境条件包括 5 至 95% 的相对非冷凝湿度、0 至 60 摄氏度（32 至 140 华氏度）的工作温度范围和 -40 至 85 摄氏度（-40 至 185 华氏度）的存储温度范围。

MVI69-PDPMV1 是 Prosoft Technology 模块，用作 Profibus 主站网络模块。该模块特别兼容 Profibus 分散式外设 （DP） 第 1 版工业网络。它是一个单插槽模块，可直接安装到 1769 背板上，供 1769 CompactLogix 控制器使用。此外，该模块还与 MicroLogix 1500 LRP 控制器兼容。

MVI69-PDPMV1 支持通信多达 125 个从设备，带或不带 ProfiBus 中继器。它能够处理多达 1536 个循环字节的输入以及 1536 字节的输出数据。此外，此模块还支持配置为提供扩展的诊断数据。

MVI69-PDPMV1 配有一 （1） 个 9 针 Sub-D 母头连接器，带有就绪、运行、错误和令牌 LED 指示灯。该端口支持高达 12 Mbps 的标准 Profibus 传输，可在单个插槽中安装多个 Profibus 主站;因此，允许主机控制器与各种 ProfiBus 网段通信。

此外，制造商提供的附件工具可用于帮助简化硬件配置并定义该模块的数据传输。

MVI69-PDPMV1 的背板电流消耗为 800 毫安 @ 5 伏直流电，电源距离额定值为 2。如果与 1769-L43 和 1769-L45 一起使用，则必须将其安装在模块的前两 （2） 个插槽中。它的工作温度为 0°C 至 60°C（32°F 至 140°F），非工作温度为 -40°F 至 185°F（-40°C 至 85°C）。

MVI69-PDPMV1 主站通信模块 带CFG端口

【英文介绍】

The DP-V1 series MVI69-PDPMV1 master station communication module with CFG port is designed by Prosoft Technology under the sub-brand inRAx. The module uses the CFG port as its main interface, which has bright LED indicators for displaying operational elements such as module status, power status, application status, end action and error status. The connection cables used with this module are RJ45 to DB-9 M and 6 ft RS-232 cables. The backplane of the module is rated at 800 mA and has a maximum voltage of 5 V DC. The power distance rating is 2 and must be in 2 slots if used with the 1746-L43 and 1746-L45. The MVI69-PDPMV1 is compatible with the single-slot 1769 backplane and is recognized by the processor as an input/output module. The MVI69-PDPMV1 module can be used to access the processor's memory to transfer data between the processor and the module. The data transfer between these two components is performed using Ladder Logic, which comes with a sample ladder diagram file that you can use. The MVI69-PDPMV1 module is compatible with all processors in the CompactLogix family, including L20/L23/L30/L31/L32/L35, L43 and L45. In addition, the module supports most MicroLogix 1500 LRP controllers. The module has passed explosion-proof Certificate (ATEX Directive), CE, CB safety, Lloyd's Register, C/UL Class 1, Zone 2 and other standards and approvals. The environmental conditions for using the module include a relative non-condensing humidity of 5 to 95%, an operating temperature range of 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit), and a storage temperature range of -40 to 85 degrees Celsius (-40 to 185 degrees Fahrenheit).

MVI69-PDPMV1 is a Prosoft Technology module used as a Profibus master station network module. The module is particularly compatible with Profibus Distributed Peripherals (DP) Version 1 industrial networks. It is a single-slot module that can be mounted directly onto the 1769 backplane for use by the 1769 CompactLogix controller. In addition, the module is compatible with the MicroLogix 1500 LRP controller.

The MVI69-PDPMV1 supports communication with up to 125 slave devices, with or without ProfiBus Repeaters. It is capable of processing up to 1536 bytes of input and 1536 bytes of output data. In addition, this module can be configured to provide extended diagnostic data.

The MVI69-PDPMV1 comes with one (1) 9-pin Sub-D female connector with Ready, Run, error, and token LED indicators. The port supports standard Profibus transfers of up to 12 Mbps, allowing multiple Profibus master stations to be installed in a single slot; Therefore, the host controller is allowed to communicate with various ProfiBus network segments.

In addition, accessory tools provided by the manufacturer can be used to help simplify the hardware configuration and define the data transfer for this module.

The backplane current consumption of the MVI69-PDPMV1 is 800 MA @ 5 volts DC with a power distance rating of 2. If used with the 1769-L43 and 1769-L45, they must be installed in the first two (2) slots of the module. It has an operating temperature of 0°C to 60°C (32°F to 140°F) and a non-operating temperature of -40°F to 185°F (-40°C to 85°C).
