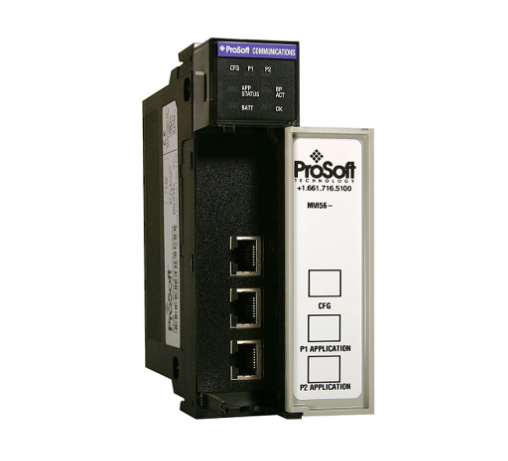

MVI56-MCMR主/从通信模块 进行数据之间的传输
【产品详情】
Modbus主/从
远程通信模块
底盘
MVI56-MCMR
应用程序使用Modbus通信模块
可以在许多工业部门找到,包括:
•外部设备数据集中器
•管道和海上平台
•食品加工
•矿业
•纸浆和纸张
•SCADA通信
Modbus主/从
远程通信模块
底盘
MVI56-MCMR
MVI56 Modbus主从通信模块
减少数据块允许ControlLogix处理器接口
很容易与其他Modbus协议兼容的设备。
兼容的设备不仅包括Modicon plc(所有
支持Modbus协议),也有各种各样的端
设备。
该模块使用一个小的I/O数据区进行数据之间的传输
模块和ControlLogix处理器,使其成为理想的
ControlNet或以太网应用程序与远程机架中的模块。
特点和优点
采用MVI56 Modbus主从通信模块
简化的数据块被设计成允许ControlLogix处理器
接口容易与Modbus协议兼容的设备和主机。
该模块充当Modbus之间的输入/输出模块
网络和ControlLogix处理器。数据从
处理器与Modbus网络上的动作是异步的。
一个5000字的寄存器空间在模块之间交换数据
处理器和Modbus网络。
许多主机SCADA应用程序支持Modbus协议,而
通常支持该协议的设备包括几个plc,如
以及市场上许多其他第三方设备。(
部分使用Modbus的设备列表,请访问ProSoft
ProSoft Technology网站的测试部分)。
通用规范
•单槽- ControlLogix背板兼容
•专为远程机架实现而设计
•该模块被识别为输入/输出模块,并且具有
为数据传输而访问处理器内存
•梯形逻辑用于模块和之间的数据传输
处理器。包括梯子示例文件
•从下载的配置文件中获取配置数据
模块。包括样例配置文件
MVI56-MCMR主/从通信模块 进行数据之间的传输
【英文介绍】
Modbus Master/slave
Telecommunication module
Base plate
MVI56-MCMR
The application uses the Modbus communication module
It can be found in many industrial sectors, including:
• External device data concentrator
• Pipelines and offshore platforms
• Food processing
• Mining
• Pulp and paper
•SCADA communication
Modbus Master/slave
Telecommunication module
Base plate
MVI56-MCMR
MVI56 Modbus Indicates the master/slave communication module
Reduce data blocks to allow ControlLogix processor interfaces
Devices that are easily compatible with other Modbus protocols.
Compatible devices include not only Modicon plc(all
Support Modbus protocol), there are also a variety of ends
Equipment.
The module uses a small I/O data area for data transfer between
Modules and ControlLogix processors make it ideal
ControlNet or Ethernet applications with modules in the remote rack.
Features and advantages
The MVI56 Modbus master/slave communication module is used
Simplified blocks of data are designed to allow ControlLogix processors
The interface is easily compatible with the Modbus protocol for devices and hosts.
This module acts as an input/output module between Modbuses
Network and ControlLogix processor. Data from
The actions of the processor and Modbus network are asynchronous.
A 5000 word register space is used to exchange data between modules
Processors and Modbus networks.
Many host SCADA applications support the Modbus protocol, while
Devices that typically support the protocol include several PLCS, such as
And many other third-party devices on the market. (
For a partial list of devices using Modbus, visit ProSoft
The testing section of the ProSoft Technology website).
General specification
• Single-slot - ControlLogix backplane compatible
• Designed for remote rack implementations
• The module is identified as an input/output module and has
Access processor memory for data transfer
• Ladder logic is used for data transfer between modules and
The processor. Includes a ladder example file
• Obtain the configuration data from the downloaded configuration file
Modules. Include sample configuration files
