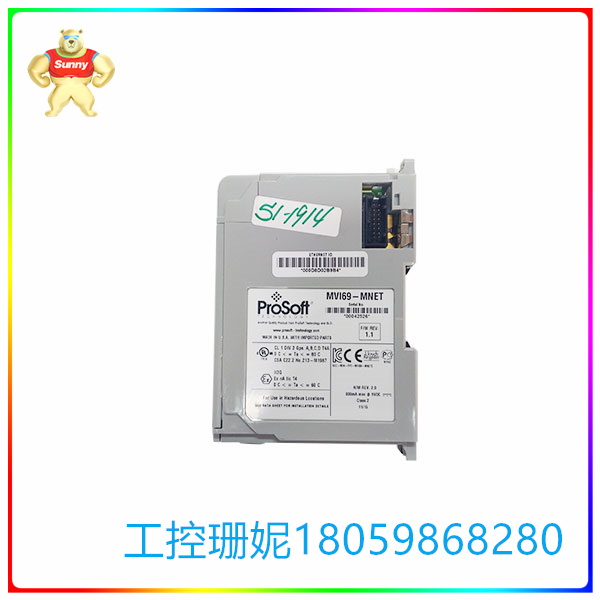

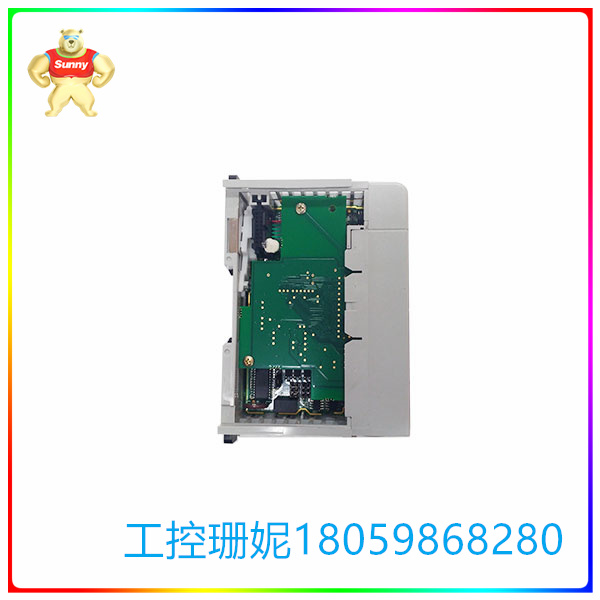

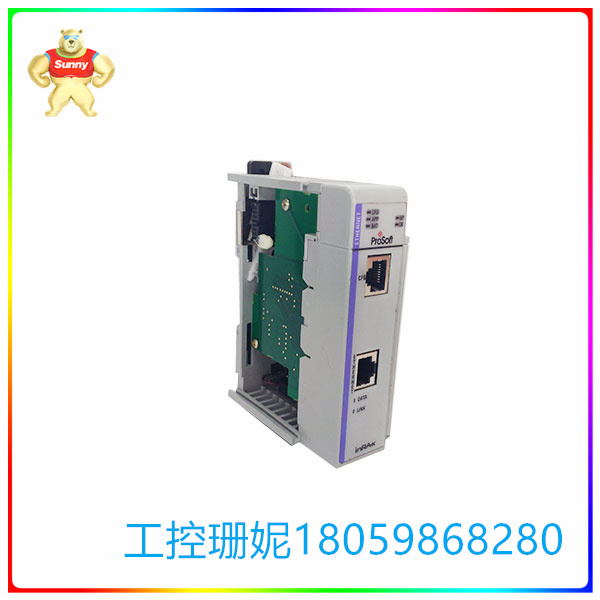

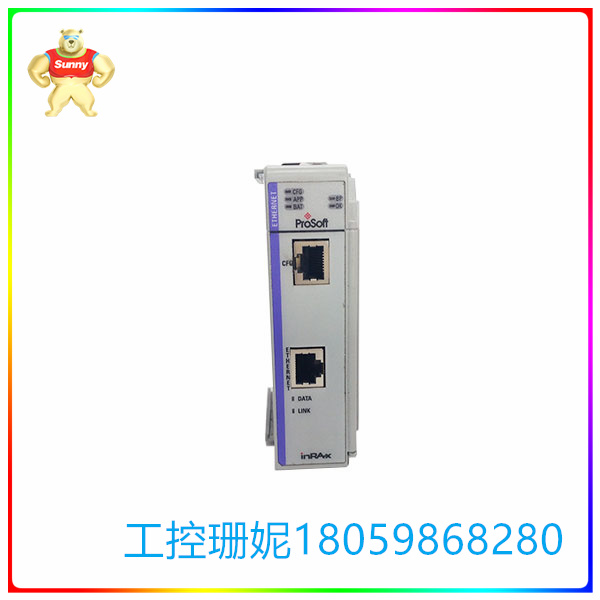

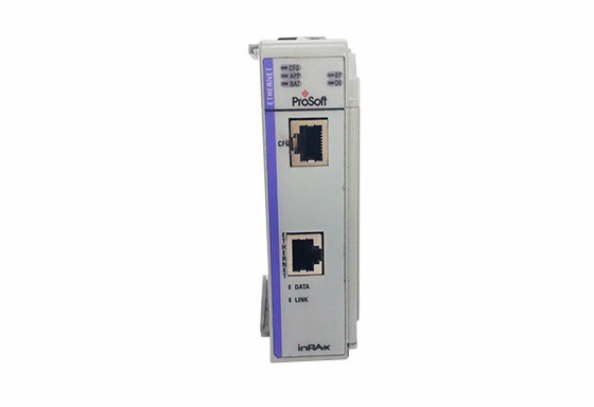

MVI69-MNET Modbus TCP/IP通信 模块 具有兼容的电源

【产品详情】

MVI69-MNET模块需要以下最低硬件和

软件组件:

罗克韦尔自动化CompactLogix处理器或MicroLogix 1500 LRP

处理器，具有兼容的电源和机架上的一个空闲插槽，用于

MVI69-MNET模块。该模块需要800ma的可用功率。

重要提示:MVI69-MNET模块的供电距离额定为2 (L43和L45)

安装在1769总线的前两个槽)。

重要:对于1769-L23x处理器，请注意以下限制。

1769-L23-QBFC1B = 800毫安在5 Vdc(一个MVI69-MNET将使用所有800毫安可用

权力。与此处理器连接的MVI69模块不能使用其他模块。)

·1769-L23E-QB1B = 1000毫安在5 Vdc(一个MVI69-MNET将使用800毫安的可用功率。

另一个模块可以在这个机架上使用，只要它在5 Vdc下消耗小于200 mA。)

·1769-L23E-QBFC1B = 450 mA at 5 Vdc(没有MVI69模块可以与此处理器一起使用)

罗克韦尔自动化RSLogix 5000 (CompactLogix)或RSLogix 500

(MicroLogix)编程软件

罗克韦尔自动化RSLinx通信软件

·Pentium®II最低450mhz。Pentium III 733 MHz(或更高)

推荐

支持的操作系统:

o Microsoft Windows XP Professional with Service Pack 1或2

o Microsoft Windows 2000 Professional(含Service Pack 1、2或3)

o Microsoft Windows Server 2003

*最小内存128mb，建议配置256mb

·100mb空闲硬盘空间(可根据实际应用设置)

需求)

256色VGA图形适配器，800x600最小分辨率(真彩色)

1024768推荐)

CD-ROM驱动器

超级终端或其他终端仿真程序能够文件传输

使用Ymodem协议。

MVI69-MNET Modbus TCP/IP通信 模块 具有兼容的电源

【英文介绍】

The MVI69-MNET module requires the following minimum hardware and

software components:

 Rockwell Automation CompactLogix processors or MicroLogix 1500 LRP

processor, with compatible power supply and one free slot in the rack, for the

MVI69-MNET module.  The module requires 800 mA of available power.

Important: The MVI69-MNET module has a power supply distance rating of 2 (L43 and L45

installations on first 2 slots of 1769 bus).

Important: For 1769-L23x processors, please make note of the following limitations.

 1769-L23-QBFC1B = 800 mA at 5 Vdc (One MVI69-MNET will use all 800 mA of available

power.  No other modules can be used with an MVI69 module connected to this processor.)

 1769-L23E-QB1B = 1000 mA at 5 Vdc (One MVI69-MNET will use 800 mA of available power.

One other module can be used on this rack provided it consumes less than 200 mA at 5 Vdc.)

 1769-L23E-QBFC1B = 450 mA at 5 Vdc (No MVI69 module can be used with this processor.)

 Rockwell Automation RSLogix 5000 (CompactLogix) or RSLogix 500

(MicroLogix) programming software

 Rockwell Automation RSLinx communication software

 Pentium® II 450 MHz minimum.  Pentium III 733 MHz (or better)

recommended

 Supported operating systems:

o Microsoft Windows XP Professional with Service Pack 1 or 2

o Microsoft Windows 2000 Professional with Service Pack 1, 2, or 3

o Microsoft Windows Server 2003

 128 Mbytes of RAM minimum, 256 Mbytes of RAM recommended

 100 Mbytes of free hard disk space (or more based on application

requirements)

 256-color VGA graphics adapter, 800 x 600 minimum resolution (True Color

1024  768 recommended)

 CD-ROM drive

 HyperTerminal or other terminal emulator program capable of file transfers

using Ymodem protocol.
