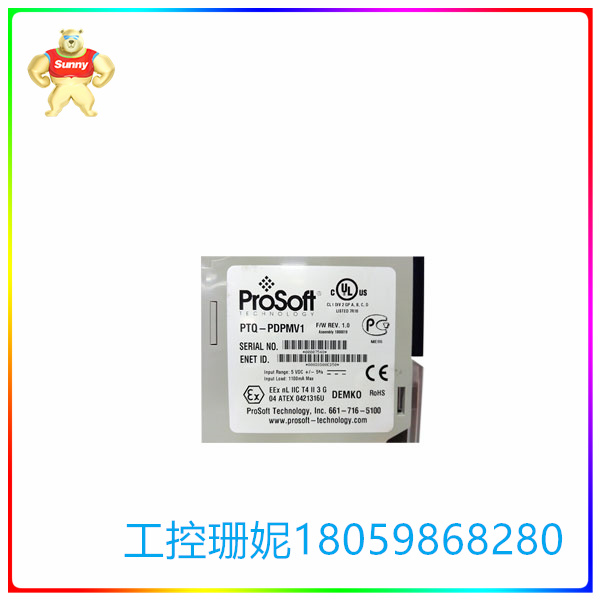

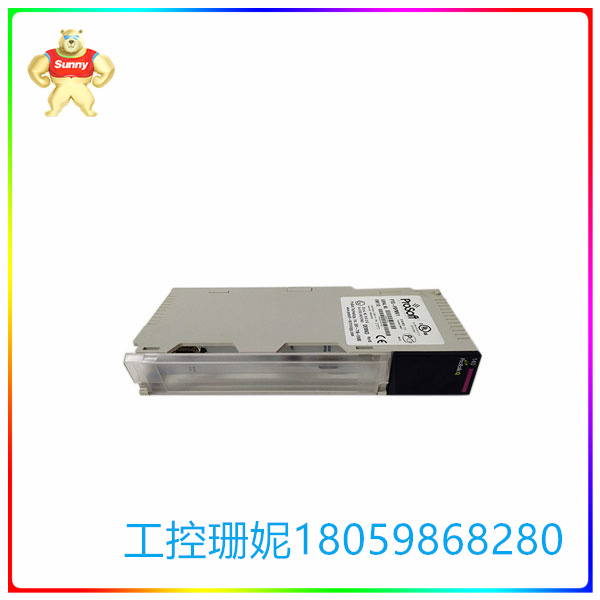

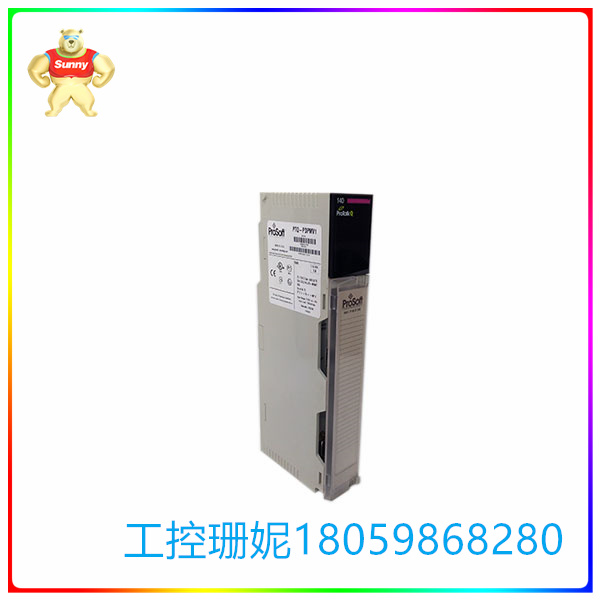

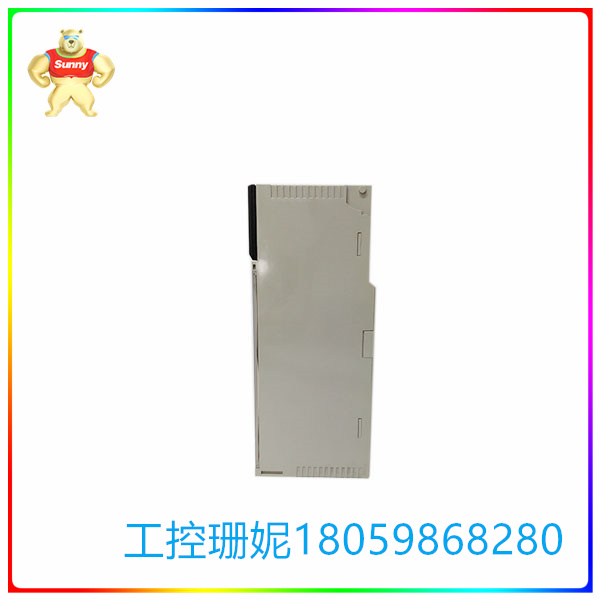

PTQ-PDPMV1 PROFIBUS DP主网络 量子接口模块

【产品详情】

PROFIBUS DPV1主控模块是一个功能强大的通信接口

量子处理器。该模块由施耐德电气授权开发

采用专有背板技术，实现强大的数据交换

与处理器。

该模块支持根据IEC 61158完整的主规范。无环

参数数据可以用1类或2类DPV1服务传输，允许

处理器可以轻松地与支持PROFIBUS DPV0/V1的从设备通信

协议。

该模块作为PROFIBUS网络和总线之间的输入/输出模块

处理器。来自处理器的数据传输与I/O数据传输是异步的

在PROFIBUS网络上。

功能的好处

易于配置和管理♦包括ProSoft配置生成器软件来设计，配置和监控您的

现场总线网络

♦包括PROFIBUS DPV1 Master FDT (Field Device Tool)通信DTM

(PROFIBUS comDTM)软件之间的接口，任何兼容的FDT软件容器，

一个FDT设备DTM，以及适用的PROFIBUS从设备

通过以太网配置PTQ模块和PROFIBUS网络

行业认可♦施耐德电气CAPP(协同自动化合作伙伴计划)批准

PROFIBUS贸易组织(PTO)认证

坚固可靠♦该模块基于西门子ASIC ASPC2 Step E和英飞凌C165微处理器

♦固件支持flash升级

♦符合Unity HEC热备功能规范。

每个机架最多支持6个PTQ-PDPMV1模块(热备时最多支持4个

实现)

♦支持扩展的诊断数据，报警指示和确认处理，多播

及广播电报(DPV1)

PTQ-PDPMV1 PROFIBUS DP主网络 量子接口模块

【英文介绍】

PROFIBUS DPV1 master control module is a powerful communication interface

A quantum processor. The module was developed under license from Schneider Electric

Proprietary backplane technology for powerful data exchange

With the processor.

The module supports the complete master specification according to IEC 61158. acyclic

Parameter data can be transmitted using Class 1 or Class 2 DPV1 services, allowed

The processor can easily communicate with slave devices that support PROFIBUS DPV0/V1

Agreement.

This module acts as an input/output module between the PROFIBUS network and the bus

The processor. The data transfer from the processor is asynchronous with the I/O data transfer

On the PROFIBUS network.

Functional benefits

Easy configuration and management ♦ Includes ProSoft Configuration Builder software to design, configure and monitor your

Fieldbus network

♦ Includes PROFIBUS DPV1 Master FDT (Field Device Tool) communication DTM

Interface between (PROFIBUS comDTM) software, any compatible FDT software container,

An FDT device DTM, as well as the applicable PROFIBUS slave device

Configure the PTQ module and PROFIBUS network over Ethernet

♦ Schneider Electric CAPP(Collaborative Automation Partner Program) approval

PROFIBUS Trade Organization (PTO) certification

♦ The module is based on Siemens ASIC ASPC2 Step E and Infineon C165 microprocessors

♦ Firmware supports flash upgrade

♦ Comply with Unity HEC hot spare function specification.

Each rack supports up to six PTQ-PDPMV1 modules (up to four in hot backup)

Realized)

♦ Support extended diagnostic data, alarm indication and confirmation processing, multicast

And Broadcast Telegraph (DPV1)

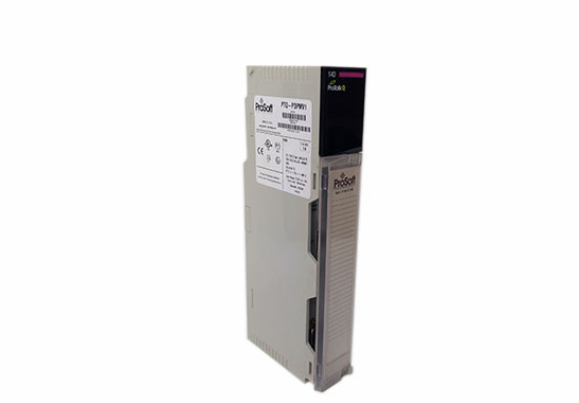

PTQ-PDPMV1 PROFIBUS DP主网络 量子接口模块
