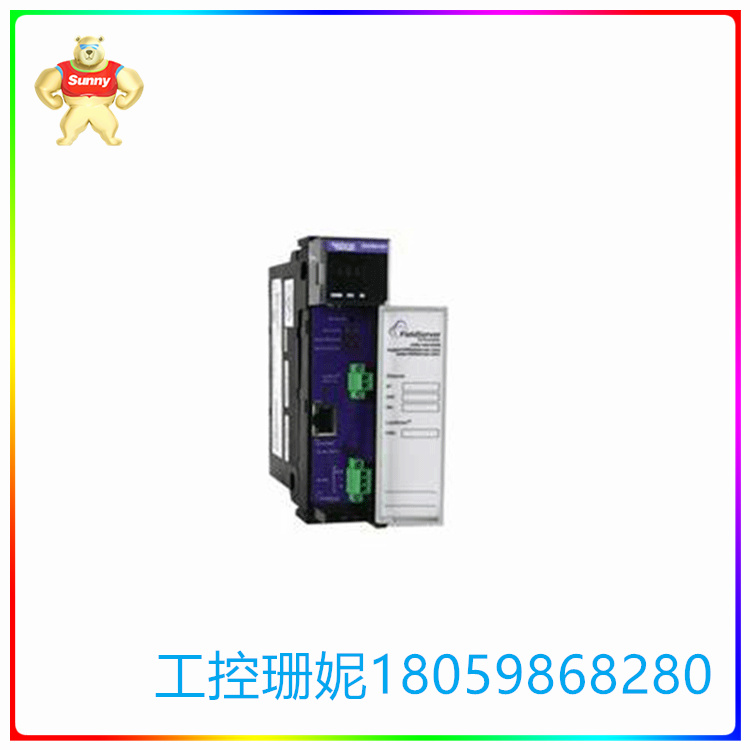

PROSOFT PS56-LON-001 通信接口允许

【产品详情】

SlotServer ControlLogix BACnet通信接口允许Allen Bradley

ControlLogix平台在ControlLogix PAC和BACnet设备之间传递数据

网络。BACnet SlotServer可以配置为使能BACnet slave或使能BACnet Master

BACnet Master设备之间的信息交换，如Trane BCU, Alerton Controllers，

等)或BACnet从设备，如VSD，照明控制，交流控制等。

SlotServer模块的物理配置是插入标准的ControlLogix机架

为1756平台使用标准的RSLogix消息块读取，以允许有效的传输

大数据块。具体配置数据包含在“configuration”CSV文件中

下载到模块。

SlotServer是一种灵活的通信模块，可以配置为广域网通信

广泛的FieldServer技术协议库中发现的一系列协议。的

SlotServer被ControlLogix识别为输入/输出模块，并具有访问处理器的权限

用于处理器和模块之间数据传输的存储器

BACnet

FieldServer Technologies多年来一直是BACnet网关领域的领导者，并取得了成功

所有主要楼宇自动化系统制造商和集成商使用。BACnet可在RS-232 (BACnet PTP -需要一个

RS-232/RS-485转换器)，RS-485 (BACnet MS/TP)或以太网(BACnet以太网或BACnet IP)。SlotServer可以接受任意一种

这些类型。

SlotServers也可用于其他楼宇自动化控制协议和最常见的火灾报警控制面板协议。为

有关具体协议的信息，请参阅具体协议的数据表。

请联系ProSoft Technology了解更多关于SlotServer的信息，以及可满足您特定需求的特定协议。

PROSOFT PS56-LON-001 通信接口允许

【英文介绍】

The SlotServer ControlLogix BACnet Communication Interfaces allow an Allen Bradley

ControlLogix platform to pass data between a ControlLogix PAC and BACnet devices and

networks.  The BACnet SlotServer can be configured as a BACnet slave or Master enabling

exchange of information between BACnet Master devices such as Trane BCU, Alerton Controllers,

etc) or BACnet slave devices such as VSD, lighting controls, AC controls, etc.

Physically configured to plug into a standard ControlLogix rack, the SlotServer Module is configured

for the 1756 platform using standard RSLogix message block reads to allow for efficient transfer of

large blocks of data.  Specific configuration data is contained in the Configuration CSV file

downloaded to the module.

SlotServer is a flexible communications module that can be configured to communicate to a wide

range of protocols found in the extensive FieldServer Technologies library of protocols.  The

SlotServer is recognized as an input/output module by ControlLogix and has access to processor

memory for data transfer between processor and module

BACnet

FieldServer Technologies has been a leader in BACnet Gateways for many years, successfully

used by all major building automation system manufacturers and integrators.  BACnet is available in RS-232 (BACnet PTP – requires an

RS-232/RS-485 converter), RS-485 (BACnet MS/TP) or Ethernet (BACnet Ethernet or BACnet IP).  The SlotServer can accept any of

these types.

SlotServers are also available for other building automation control protocols and most common fire alarm control panel protocols.  For

information about the specific protocol, please refer to the datasheet for that specific protocol.

Contact ProSoft Technology to learn more about the SlotServer and the specific protocols available to meet your specific needs.
